System overview
2.4 Components
Distributed I/O system
System Manual, 12/2016, A5E03576849-AG
25
2.4
Components
Basic components of the ET 200SP distributed I/O system

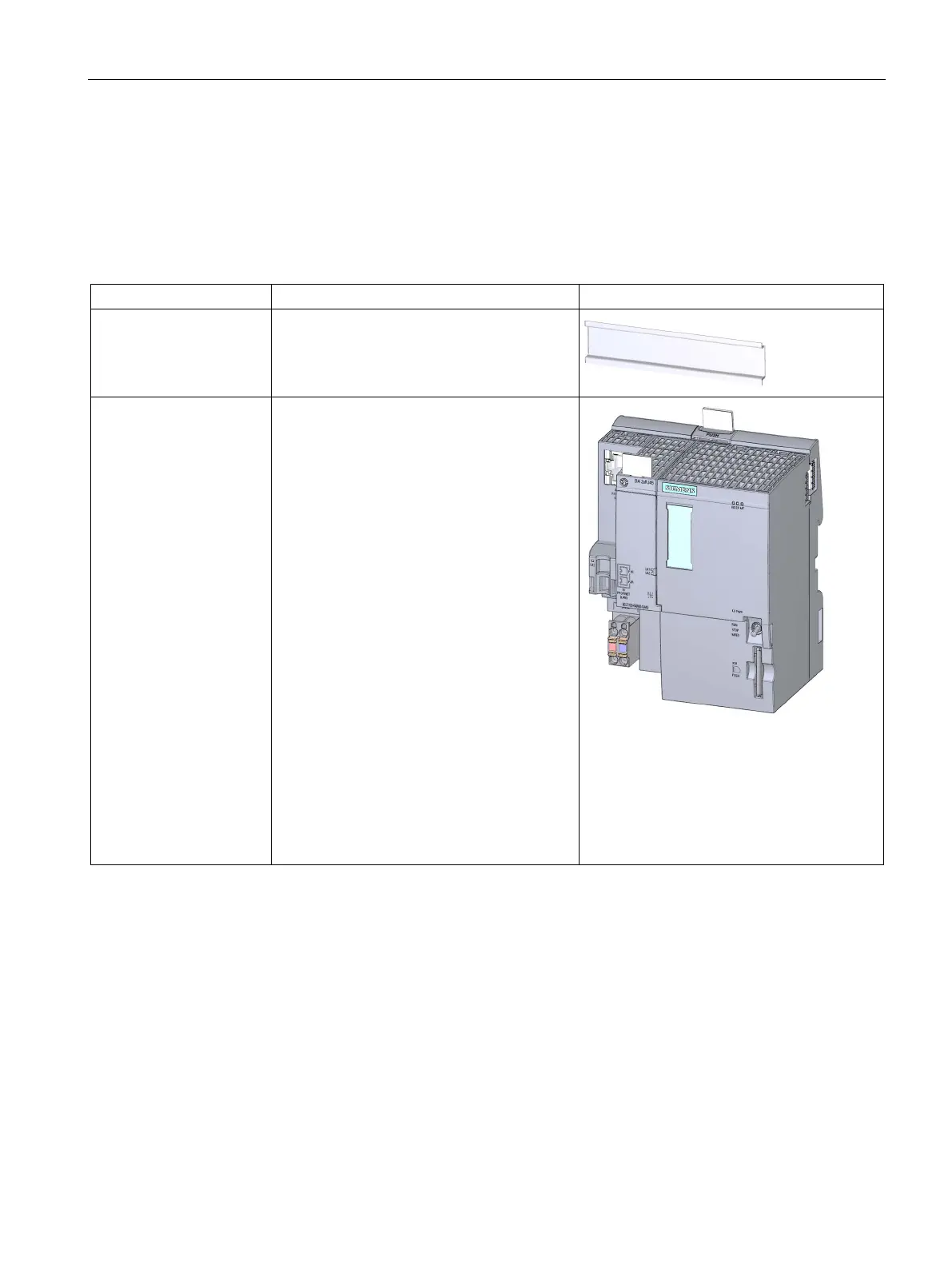

Table 2- 2 Basic components of the ET 200SP
Basic component
Function
Figure
Mounting rail in accord-
ance with EN 60715
The mounting rail is the rack of the ET 200SP.
The ET 200SP is installed on the mounting
rail. The mounting rail is 35 mm high.
CPU/Fail-safe CPU The (F) CPU:
• Runs the user program. The F-CPU also
runs the safety program.
• Can be used as an IO controller or I-
Device on PROFINET IO or as a
standalone CPU
• Links the ET 200SP to the IO devices or
the IO controller
• Exchanges data with the I/O modules via
the backplane bus.
Additional CPU functions:
• Communication via PROFIBUS DP (the
CPU can be used as a DP master or DP
slave in combination with the CM DP
communication module)
• Integrated Web server
• Integrated technology
• Integrated trace functionality
• Integrated system diagnostics
• Integrated safety
• Safety mode (when using fail-safe CPUs)

Siemens Simantic ET200SP Specifications

General

System Type	Modular I/O System
Mounting	DIN Rail
Power Supply	24 V DC
Category	I/O Systems
Protection Class	IP20
Modularity	Yes
Communication Protocols	PROFINET, PROFIBUS
Digital Inputs	Available (varies by module)
Digital Outputs	Available (varies by module)
Analog Inputs	Available (varies by module)
Analog Outputs	Available (varies by module)
Number of Modules per Station	Up to 64
Module Width	15 mm, 20 mm, 22.5 mm (depending on module type)
