Commissioning
10.2 Commissioning the ET 200SP for PROFINET IO
Distributed I/O system
System Manual, 12/2016, A5E03576849-AG
199
10.2
Commissioning the ET 200SP for PROFINET IO
Requirements
● The CPU/interface module is in the "Factory settings" status or has been reset to factory
settings (see section Interface module
(http://support.automation.siemens.com/WW/view/en/55683316/133300)).
● For CPU: The SIMATIC memory card is as delivered or has been formatted.
10.2.1
ET 200SP CPU as an IO controller
Configuration example
To use the ET 200SP distributed I/O system as an IO controller, you require the
CPU 151xSP-1 PN.

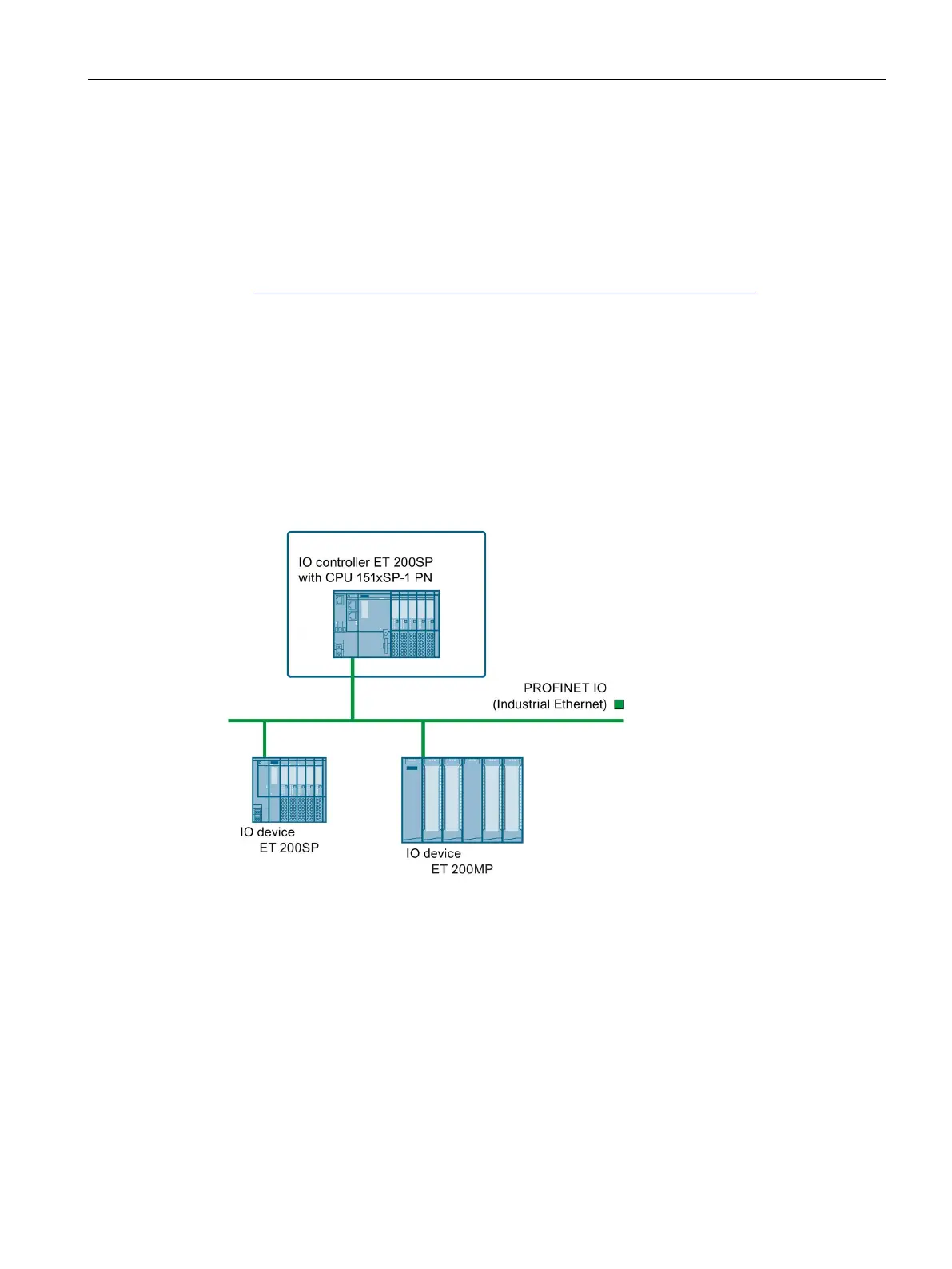

Figure 10-1 ET 200SP CPU as an IO controller

Siemens Simantic ET200SP Specifications

General

System Type	Modular I/O System
Mounting	DIN Rail
Power Supply	24 V DC
Category	I/O Systems
Protection Class	IP20
Modularity	Yes
Communication Protocols	PROFINET, PROFIBUS
Digital Inputs	Available (varies by module)
Digital Outputs	Available (varies by module)
Analog Inputs	Available (varies by module)
Analog Outputs	Available (varies by module)
Number of Modules per Station	Up to 64
Module Width	15 mm, 20 mm, 22.5 mm (depending on module type)
