Siemens Simantic ET200SP User Manual

Commissioning
10.2 Commissioning the ET 200SP for PROFINET IO
Distributed I/O system
System Manual, 12/2016, A5E03576849-AG
201
10.2.2
ET 200SP CPU as an I-device
Configuration example
You need the CPU 151xSP-1 PN to use the ET 200SP distributed I/O system as an I-device.

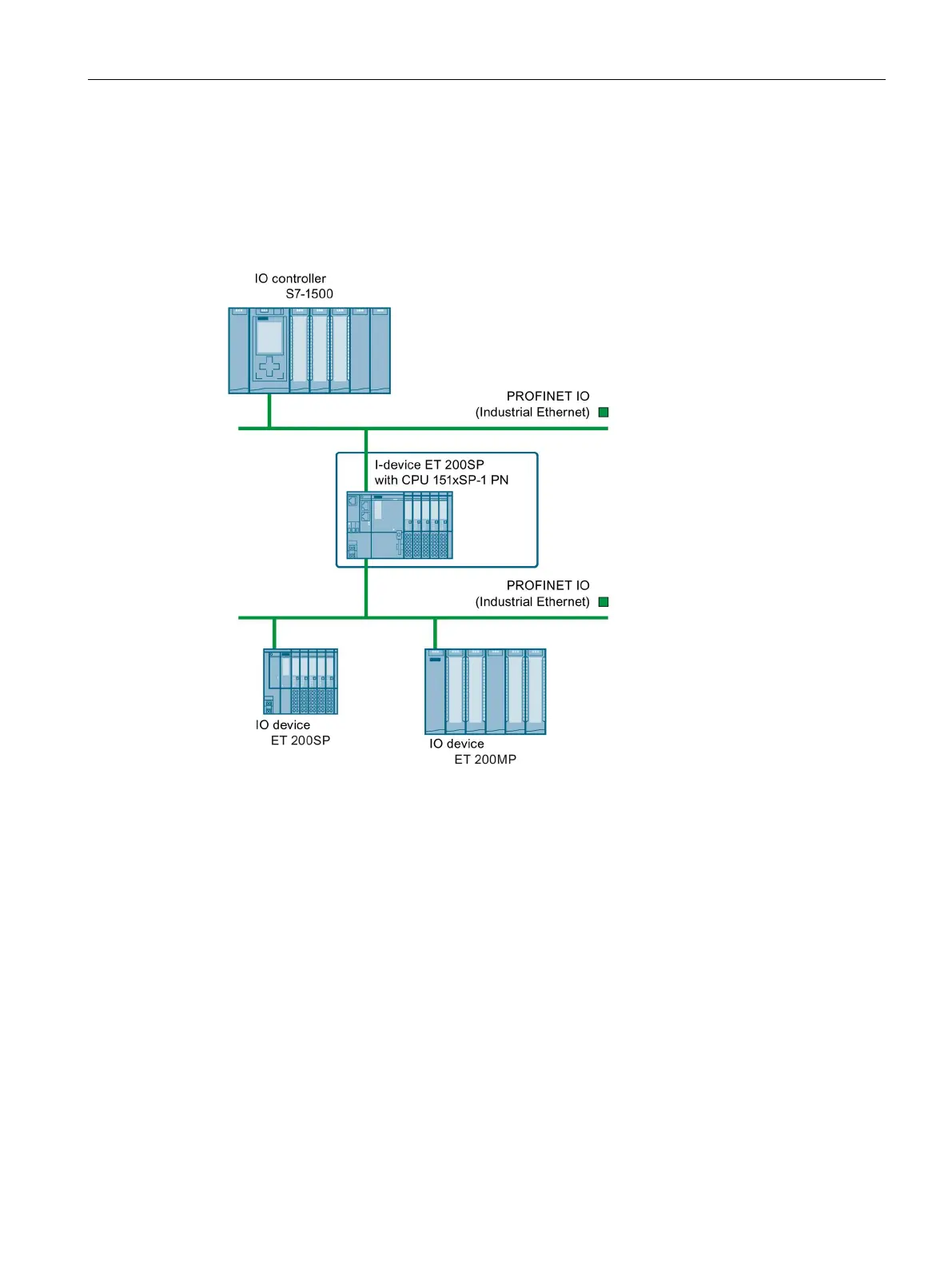

Figure 10-2 ET 200SP CPU as an I-device

Siemens Simantic ET200SP Specifications

General

System Type	Modular I/O System
Mounting	DIN Rail
Power Supply	24 V DC
Category	I/O Systems
Protection Class	IP20
Modularity	Yes
Communication Protocols	PROFINET, PROFIBUS
Digital Inputs	Available (varies by module)
Digital Outputs	Available (varies by module)
Analog Inputs	Available (varies by module)
Analog Outputs	Available (varies by module)
Number of Modules per Station	Up to 64
Module Width	15 mm, 20 mm, 22.5 mm (depending on module type)
