Siemens SIMATIC ET 200SP User Manual

Interrupts/diagnostic alarms
14.4 Diagnostics response
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
Manual, 07/2018, A5E42674880-AA
117
Example

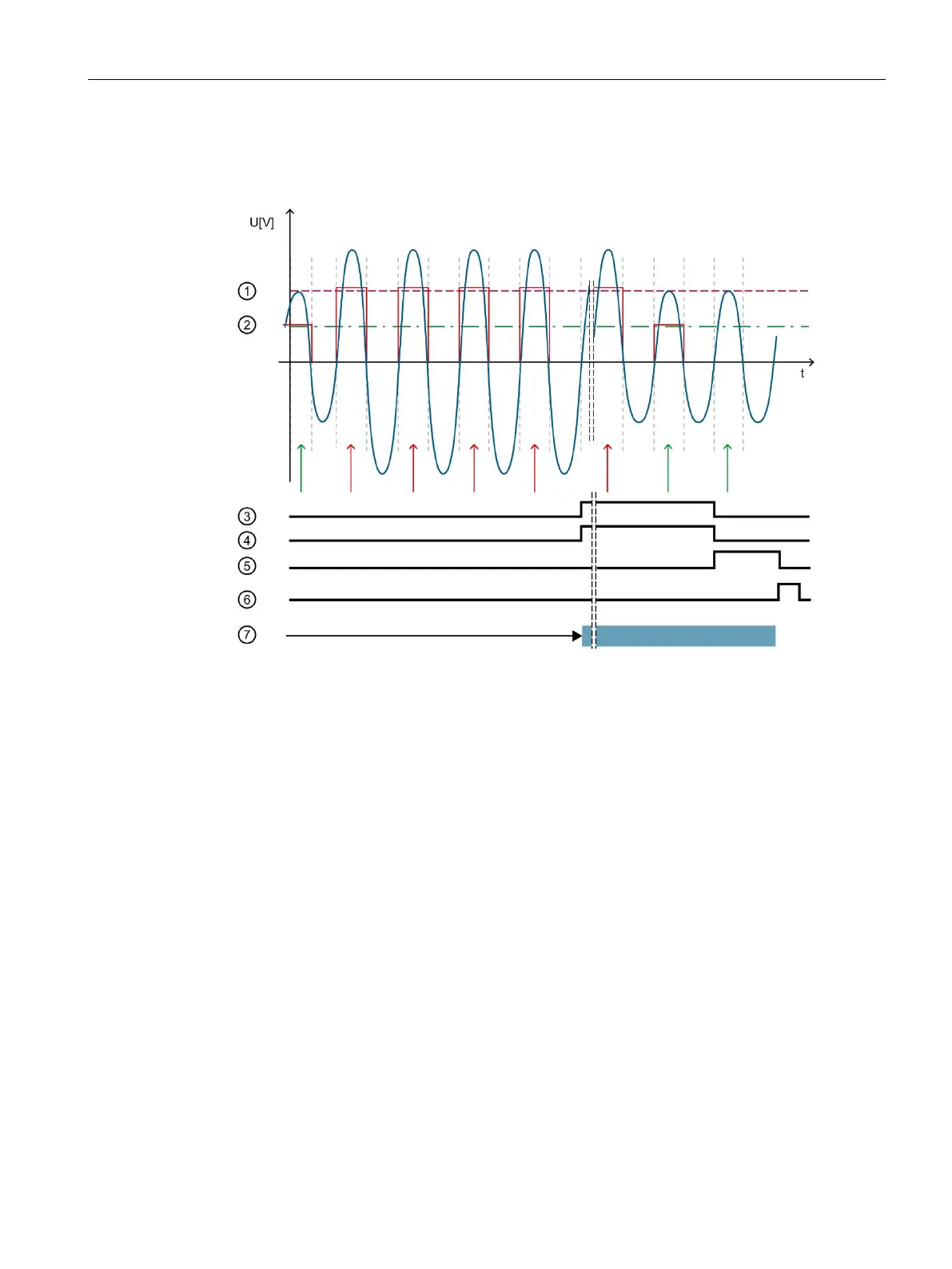

The following figure is a schematic diagram of the principle of operation:
①
Voltage swell limit
②
Nominal voltage
③
Diagnostics "power quality"
④
Qualifier Bit 6
⑤
Status "Power quality voltage swell"
⑥
Bit "Reset status "power quality""
⑦
Min. voltage swell (half-wave) and duration can be read
Figure 14-4 Example of principle of operation
