Siemens SIMATIC ET 200SP - Operating Quadrant

Reading and processing measured values
6.2 Quality information
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
Manual, 07/2018, A5E42674880-AA
49
6.2.3
Operating quadrant

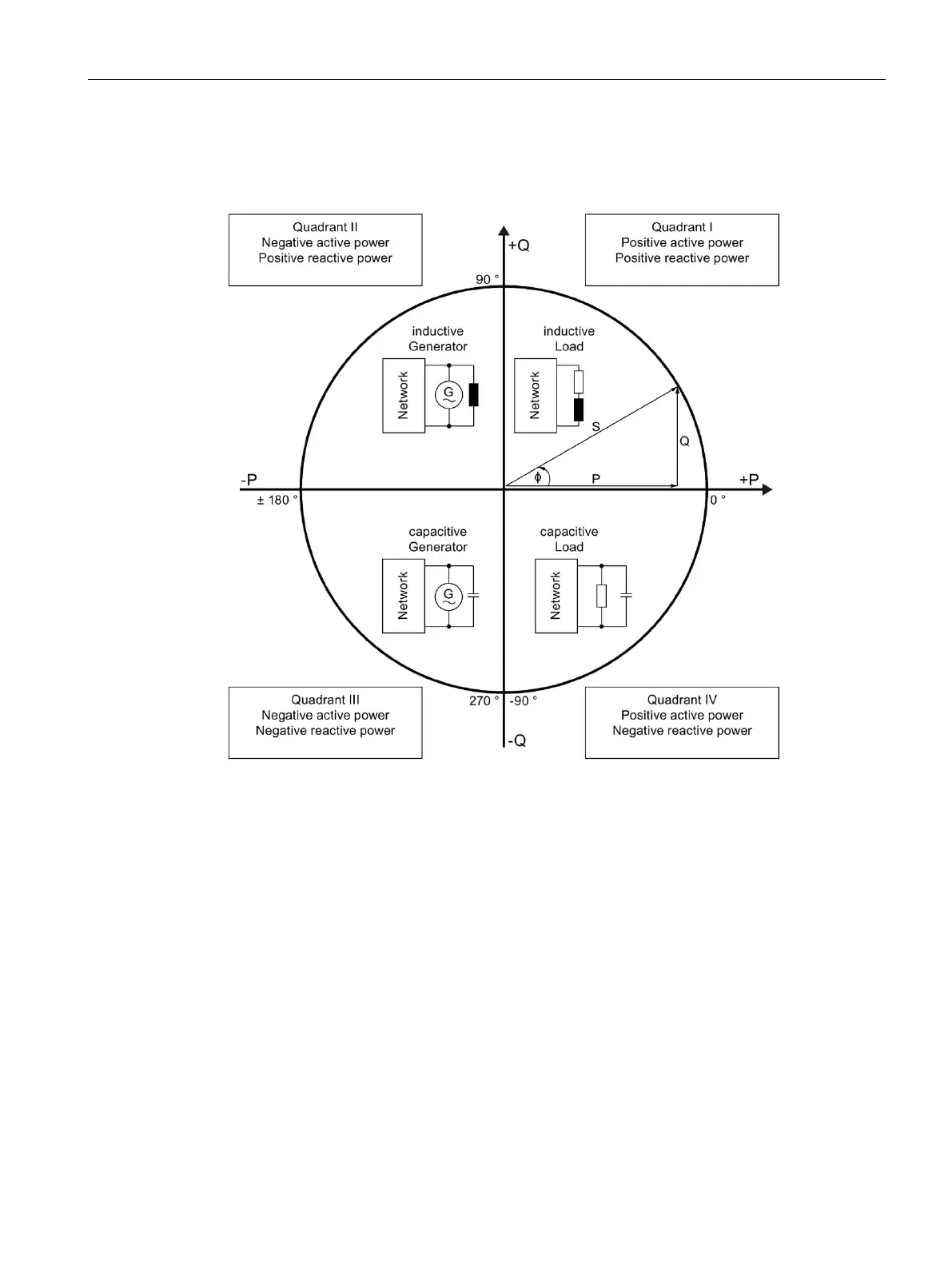

The figure below shows the quality information of the operating quadrants.
Figure 6-5 Quadrant in the quality bits
