Siemens SIMATIC ET 200SP User Manual

Parameter data records
A.4 Structure of the parameter data records 130/131 for user-data mapping
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
Manual, 07/2018, A5E42674880-AA
157
A.4
Structure of the parameter data records 130/131 for user-data
mapping
Structure of data record 130/131

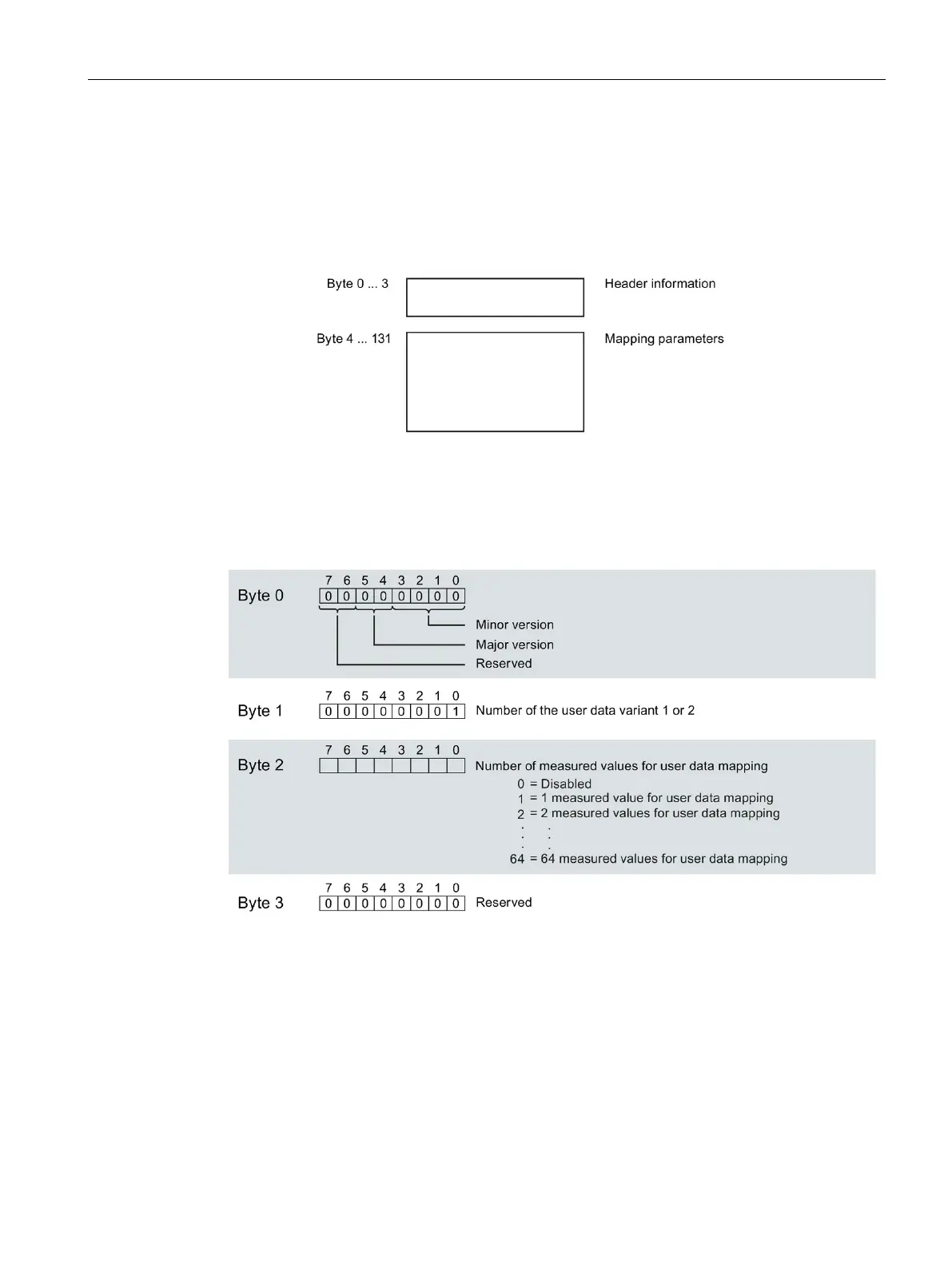

Figure A-12 Structure of data record 130/131
Header information
The figure below shows the structure of the header information.
Figure A-13 Header information DS 130/131
