Parameter data records
A.4 Structure of the parameter data records 130/131 for user-data mapping
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
158 Manual, 07/2018, A5E42674880-AA
Parameter block for user data mapping

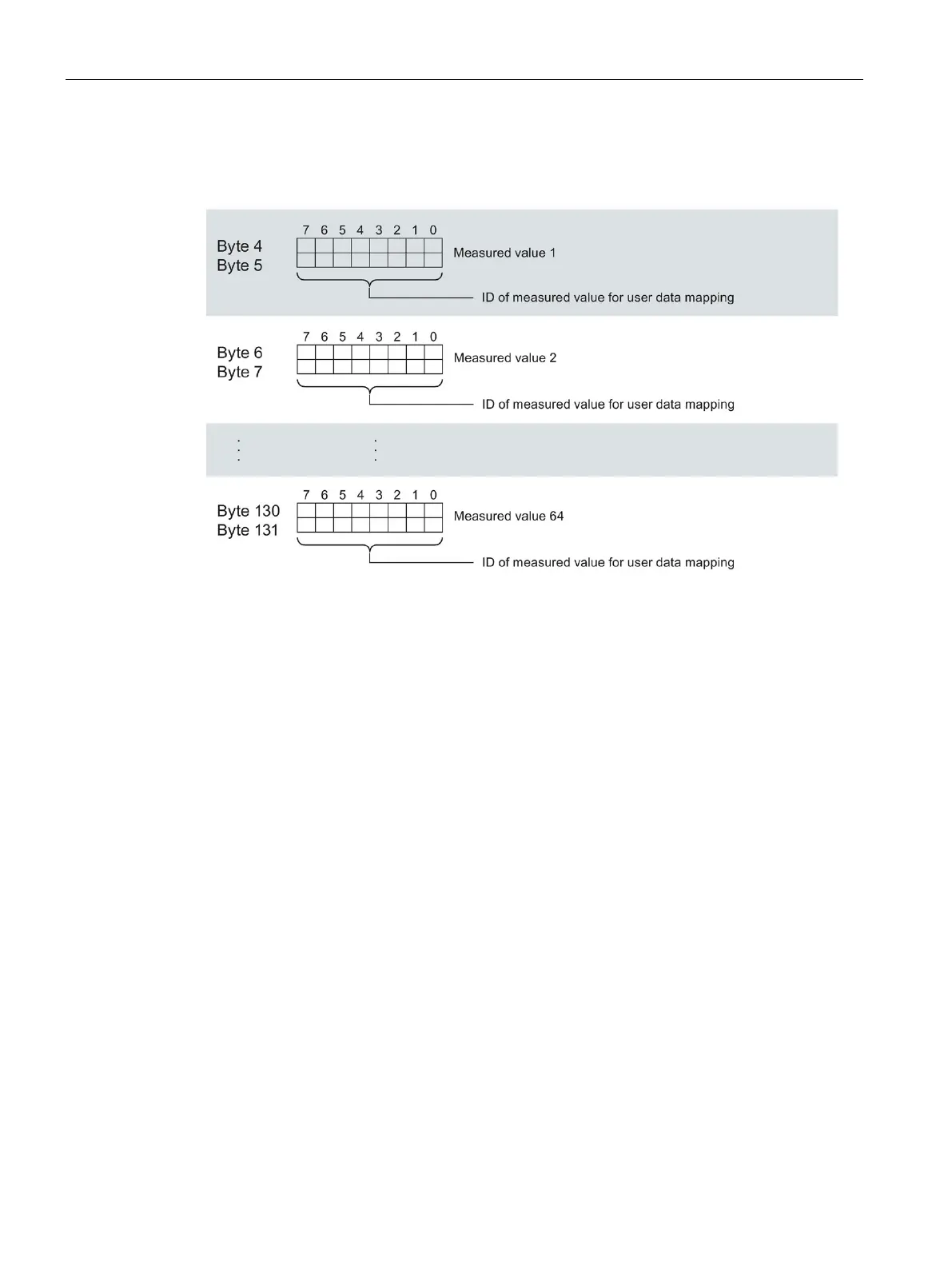

The following diagram shows the structure of the parameter blocks for user data mapping.
Figure A-14 Parameter block for user data mapping
