Siemens SIMATIC ET 200SP User Manual

Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
14 Manual, 07/2018, A5E42674880-AA
Product overview
2
2.1
Properties of the AI Energy Meter HF
Article number
6ES7134-6PA00-0CU0

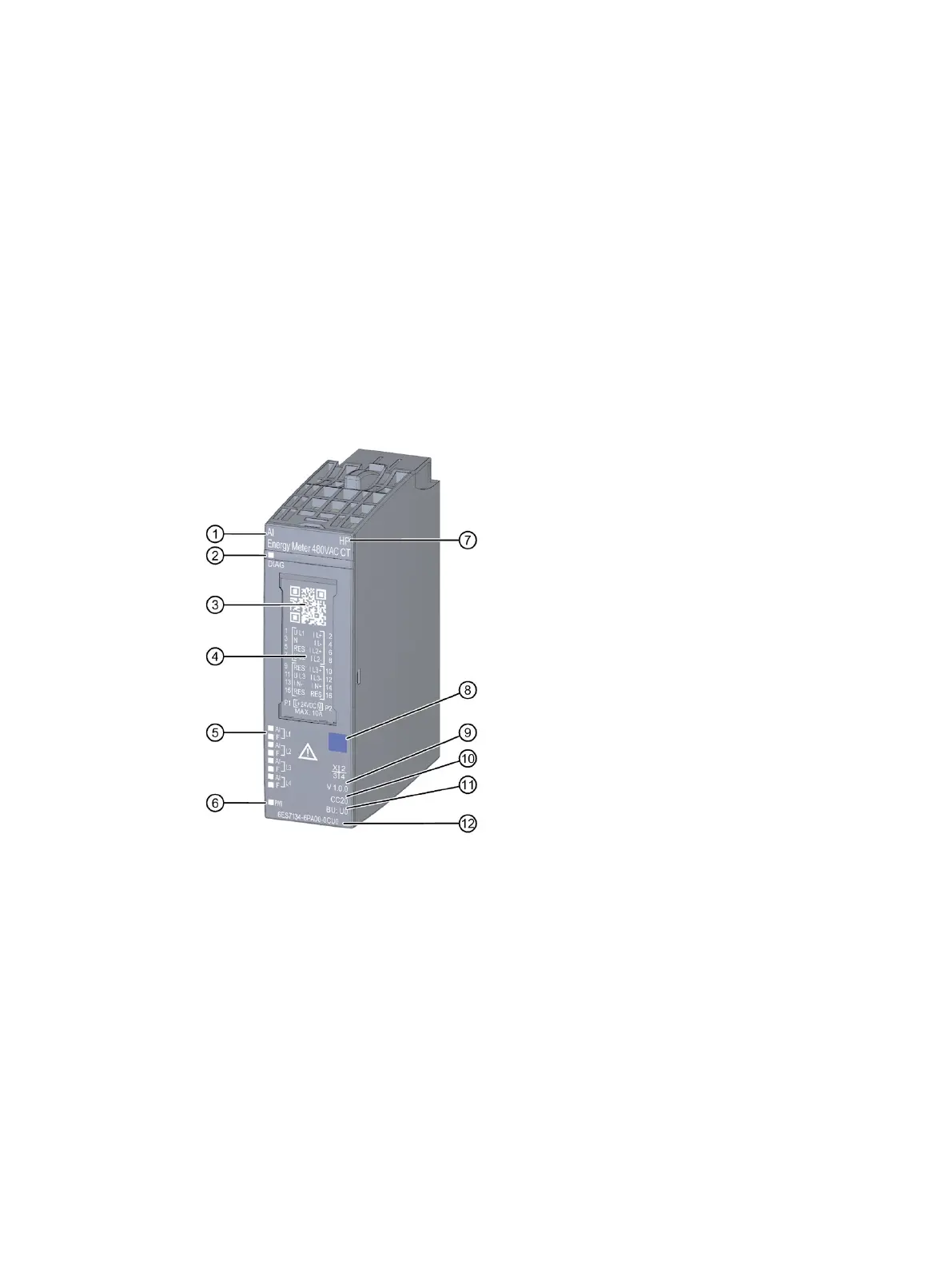

View of the module
①
Module type and name
⑦
Function class
②
LED for diagnostics
⑧
Color coding module type
③
2D matrix code
⑨
Function and firmware version
④
Wiring diagram
⑩
Color code for selecting the color identification labels
⑤
LEDs for channel status
⑪
BU type
⑥
LED for supply voltage
⑫
Article number
Figure 2-1 View of the module AI Energy Meter HF

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
