Module versions
C.2 Module version "32 I / 20 Q"
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
200 Manual, 07/2018, A5E42674880-AA
Control bytes for each individual phase

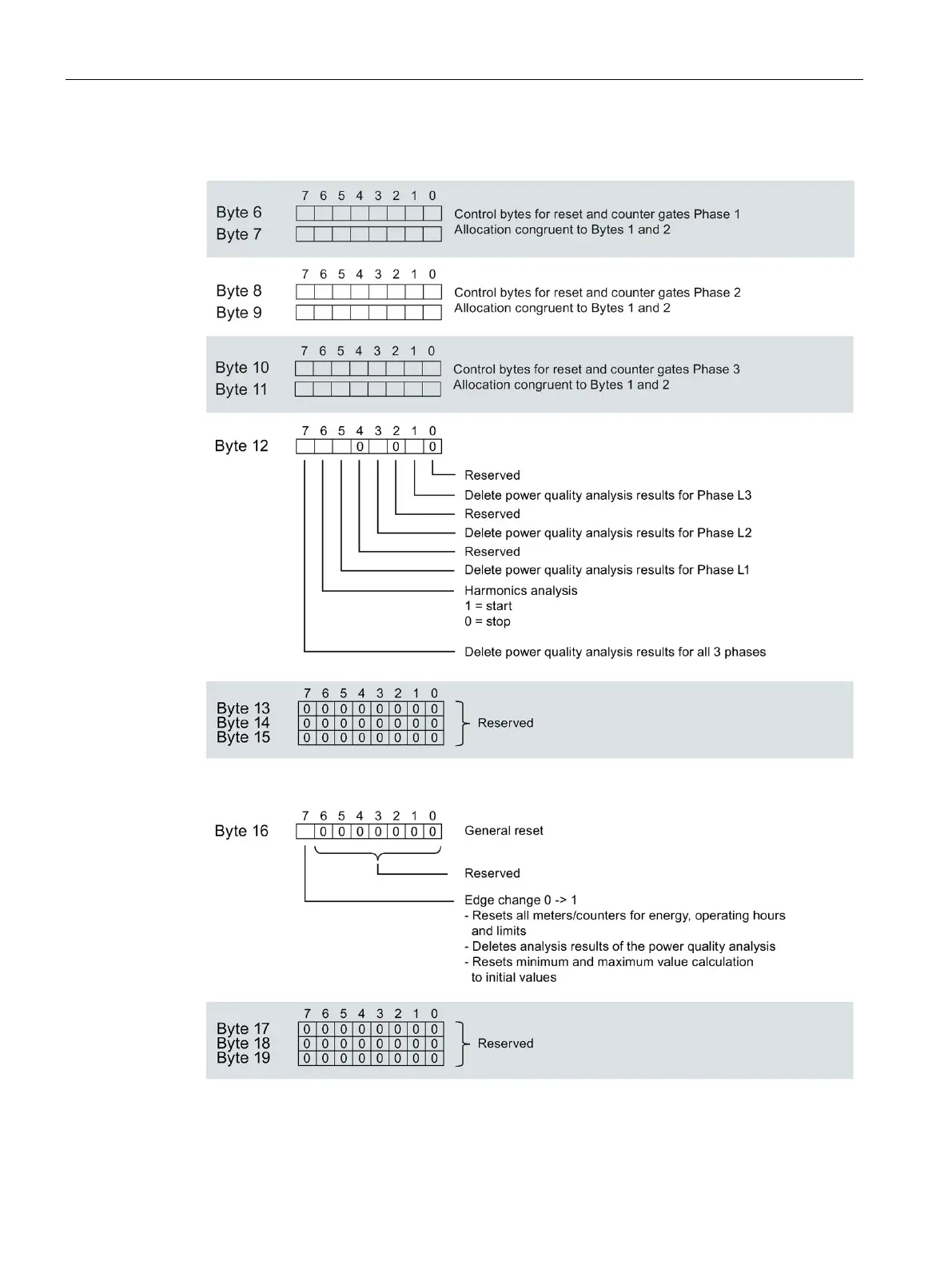

Figure C-7 Allocation of the control bytes for each individual phase (bytes 6 to 15)
Figure C-8 Allocation of the control bytes for each individual phase (bytes 16 to 19)
