Reading and processing measured values
6.2 Quality information
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
Manual, 07/2018, A5E42674880-AA
45

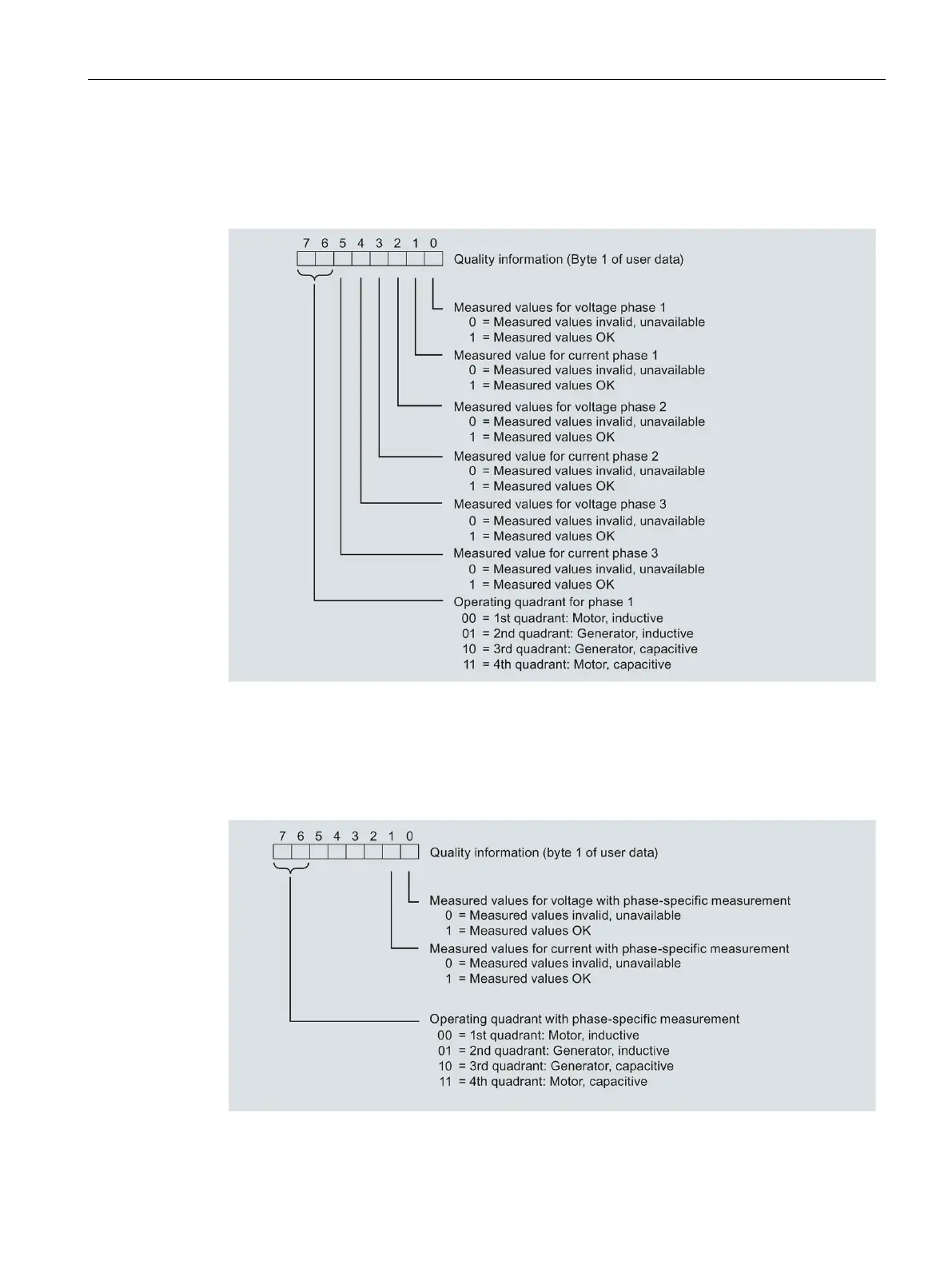

Quality information in byte 1 of the user data for 3-phase measurement
The quality information for 3-phase measurement is provided by the module in user data
variants ID 244 to ID 254.
Figure 6-2 Assignment of byte 1 for user data variants ID 224 to ID 254
Quality information in byte 1 for phase-specific measurement
The quality information for phase-specific measurement is provided by the module in user
data variants ID 154 to ID 159.
Figure 6-3 Byte 1 assignment for user data variants ID 154 to ID 159
