Energy counters
7.2 Preset and apply start values for energy and overflow counters
Analog input module AI Energy Meter 480VAC/CT HF (6ES7134-6PA00-0CU0)
Manual, 07/2018, A5E42674880-AA
61
Procedure for module version with 20 bytes of output data
Apply start values for energy counters and overflow counters for all three phases
1. In Byte 2 of the output data, select the categories for which you want to apply start
values.
– Set bit 5 for active energy counters.
– Set bit 6 for reactive energy counters.
– Set bit 7 for apparent energy counters.

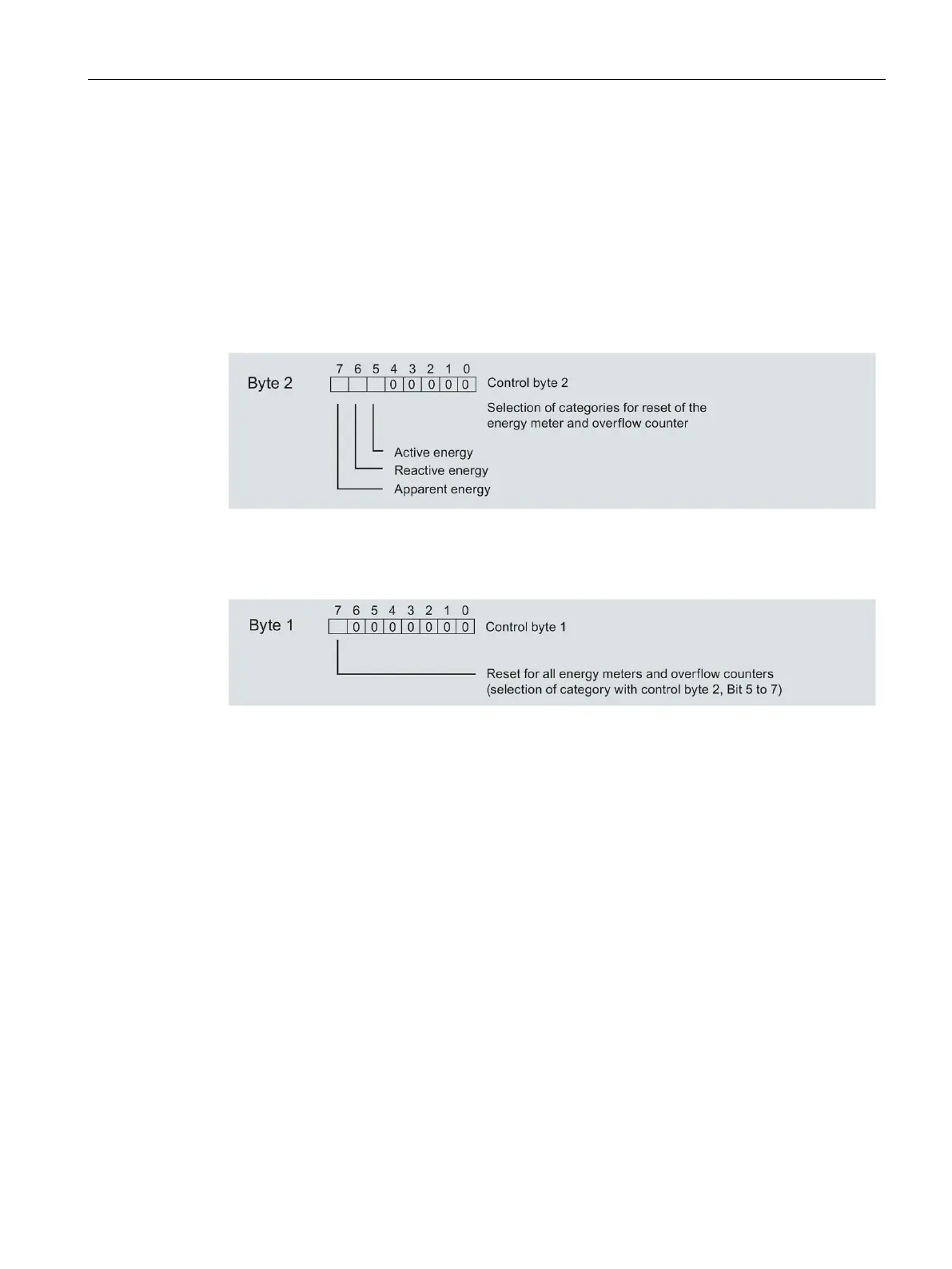

Figure 7-3 Selection of categories for reset
2. Set the reset bit (Bit 7) in byte 1 of the output data.
Figure 7-4 Reset bit for energy and overflow counter
If there is an edge change of the reset bit from 0 -> 1, the module resets the energy and
overflow counters that you previously selected in byte 2 to their start values.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
