Operation
9.2 Device with key panel
SIMATIC HMI IPC677C
104 Operating Instructions, 04/2013, A5E02722710-04
Procedure
1. Label the DIN A4 film with a laser printer, for example, using the print format templates for
MS Word on the "Documentation and Drivers" CD.
2. Cut the labeling strips along the pre-printed lines.
Note
Do not insert handwritten labeling strips until the ink has dried.
3. Insert the labeling strips into the slots provided from the rear side of the control unit.

 

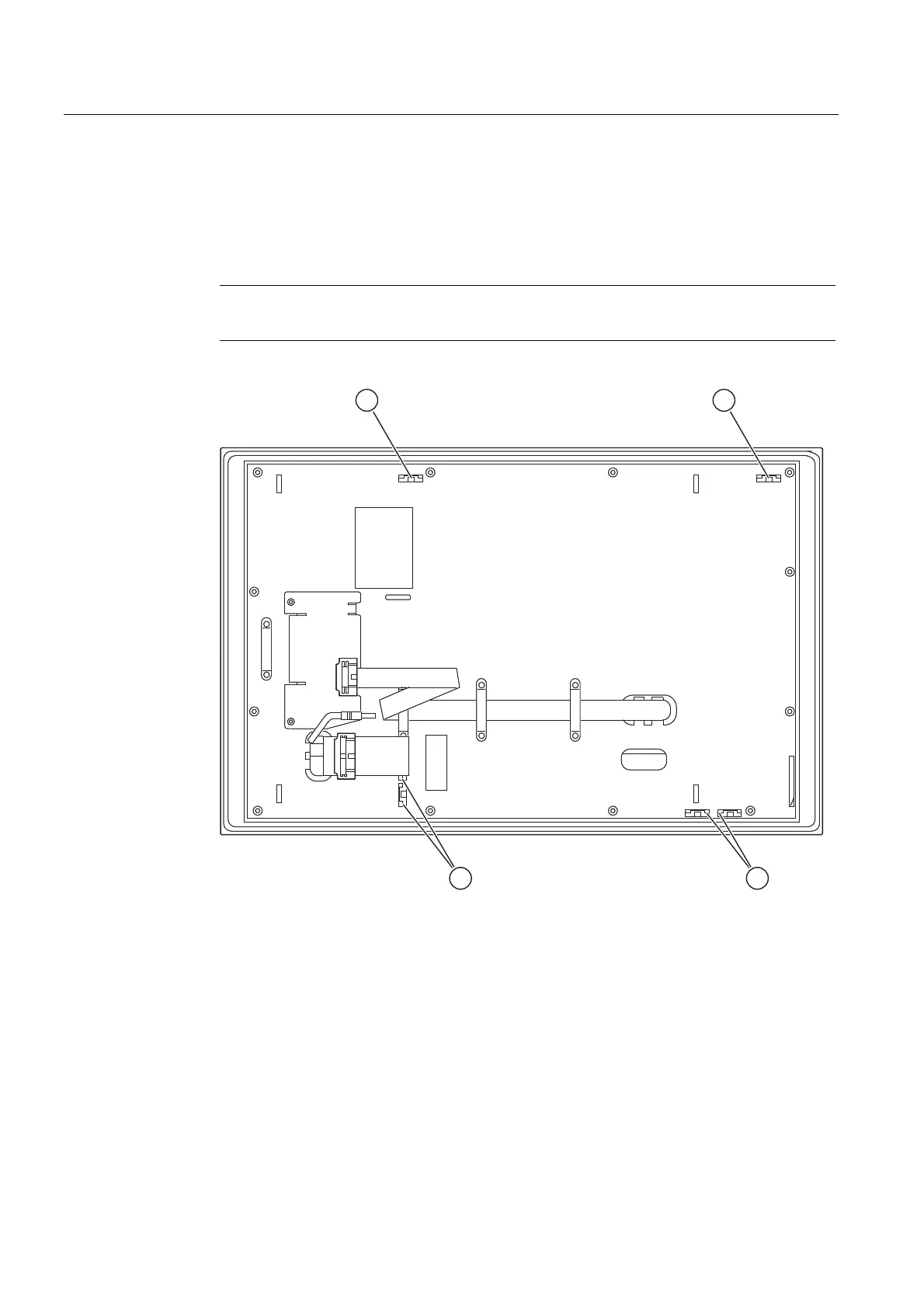

Figure 9-5 Rear of the control unit, using example of a 12" key panel.
Similar to illustration, can deviate from device
(1) Slots for long labeling strips, vertical keypads
(2) Slots for short labeling strips, horizontal keypads
(3) Slots for labeling strips, horizontal keypads
