11.8 Removing and installing hardware components
SIMATIC HMI IPC677C
Operating Instructions, 04/2013, A5E02722710-04
137

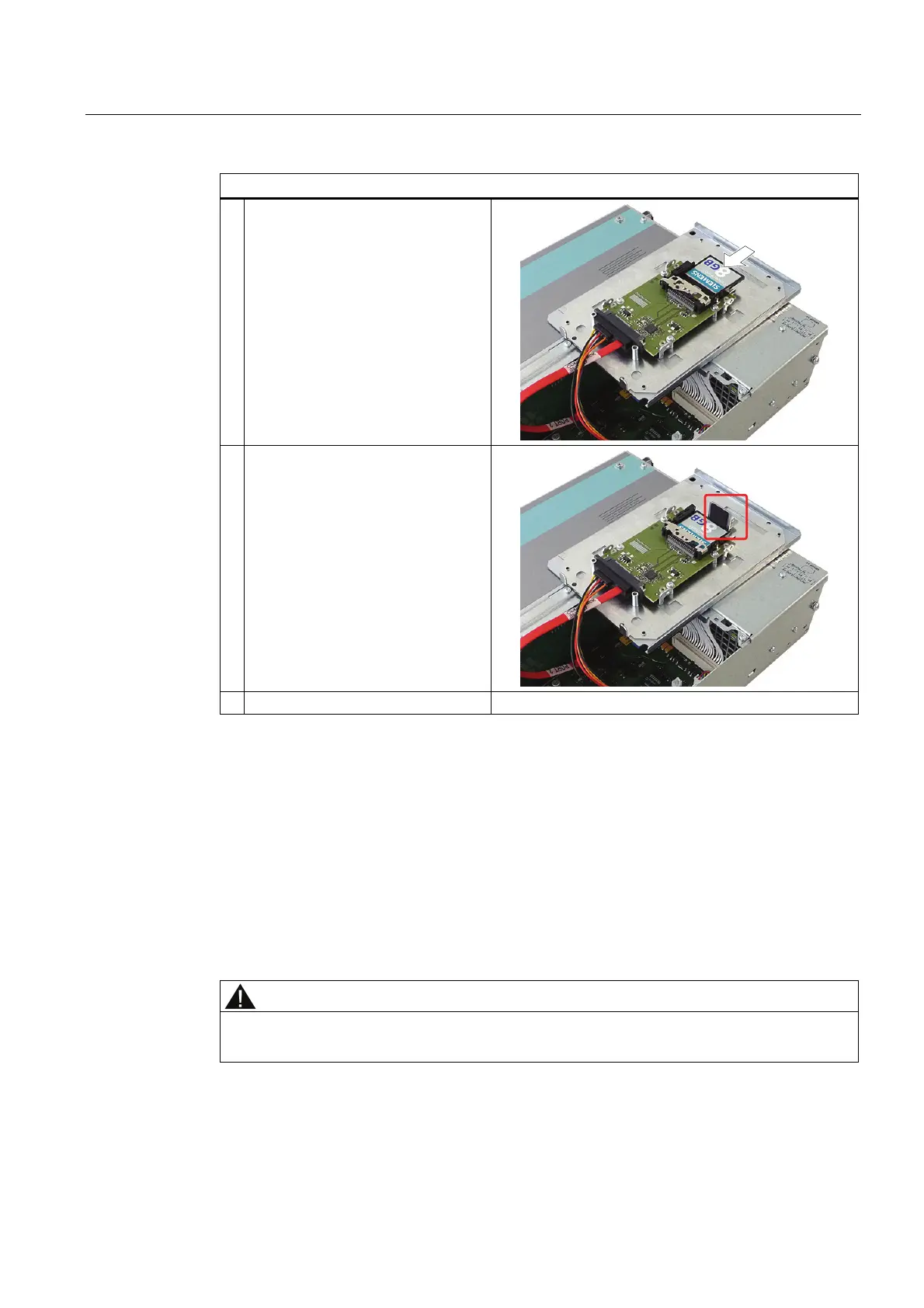

How to install the Compact Flash card in the Compact Flash adapter
4 Insert the Compact Flash card in the
adapter with the connector facing in
until it locks into place.
5 Close the Compact Flash latch.
6 Mount the hard disk cover.
11.8 Removing and installing hardware components
11.8.1 Repairs
Repairing components
Only authorized personnel are permitted to repair the device.
WARNING
Unauthorized opening and improper repairs may lead to material damage and hazards to
users.
