Service and maintenance
11.7 Expansion and parameter assignment
SIMATIC HMI IPC677C
136 Operating Instructions, 04/2013, A5E02722710-04
Installing the additional Compact Flash card

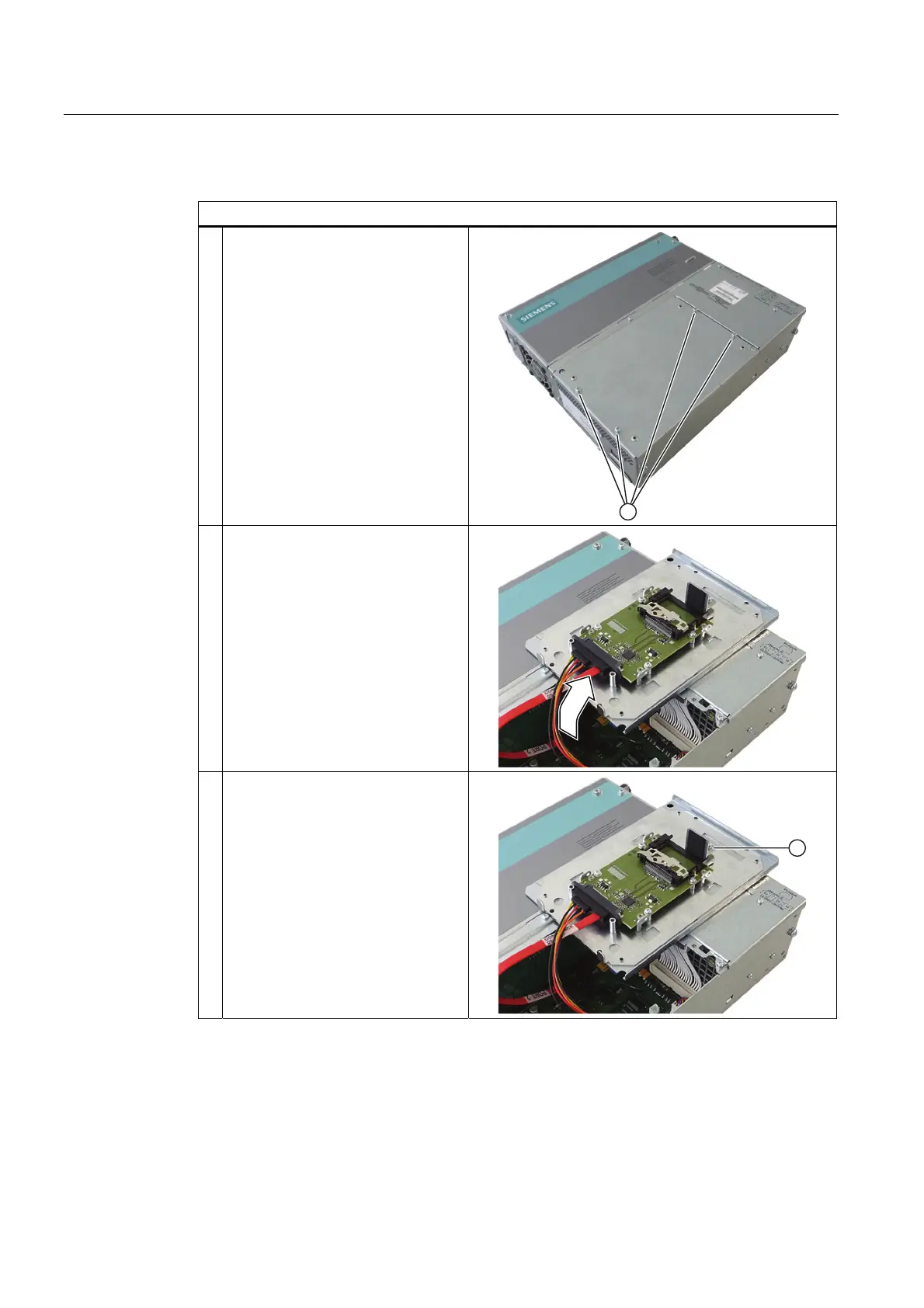

How to install the Compact Flash card in the Compact Flash adapter
1 Remove the hard disk cover.
2 Lift out the Compact Flash adapter
module and lay it on the device.
3
Remove the screws
① and remove
the CompactFlash latch.
