11.8.7 Installing / removing the equipment fan
Preparations
1. Disconnect the device from the mains.
2. Open the device (Page 121).
Removing the fan
How to remove the fan
1

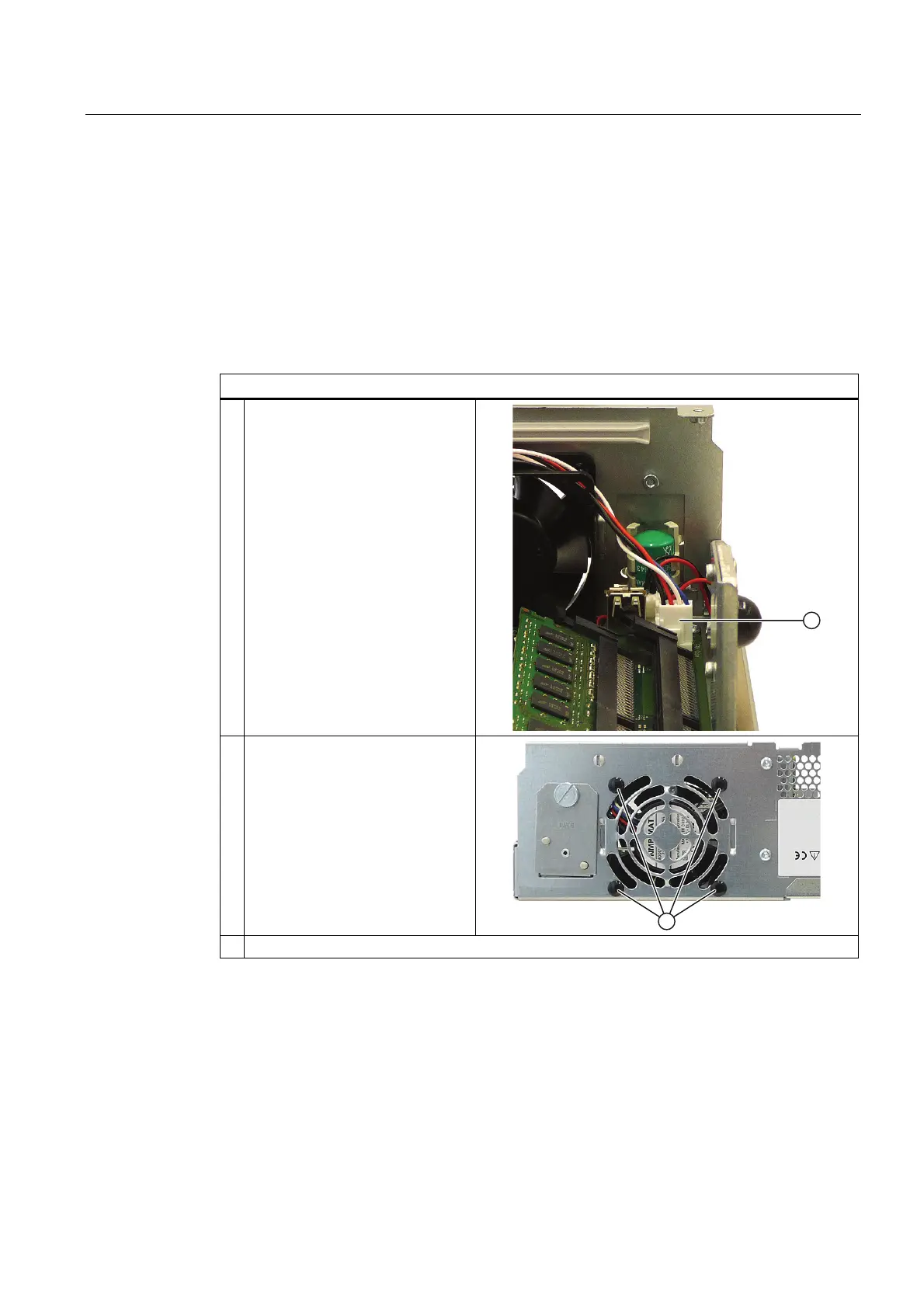

Pull the fan plug ① from the
motherboard.

2
Loosen the four plastic rivets ① on
the enclosure.

3 Take the fan out of the enclosure.
