Service and maintenance
11.8 Removing and installing hardware components
SIMATIC HMI IPC677C
144 Operating Instructions, 04/2013, A5E02722710-04
How to remove the motherboard
3 Remove the power supply cover.
5 Remove the power supply.
4 Remove the bus board.
6 Disconnect all cables from the motherboard, noting down their positions while doing so.
7

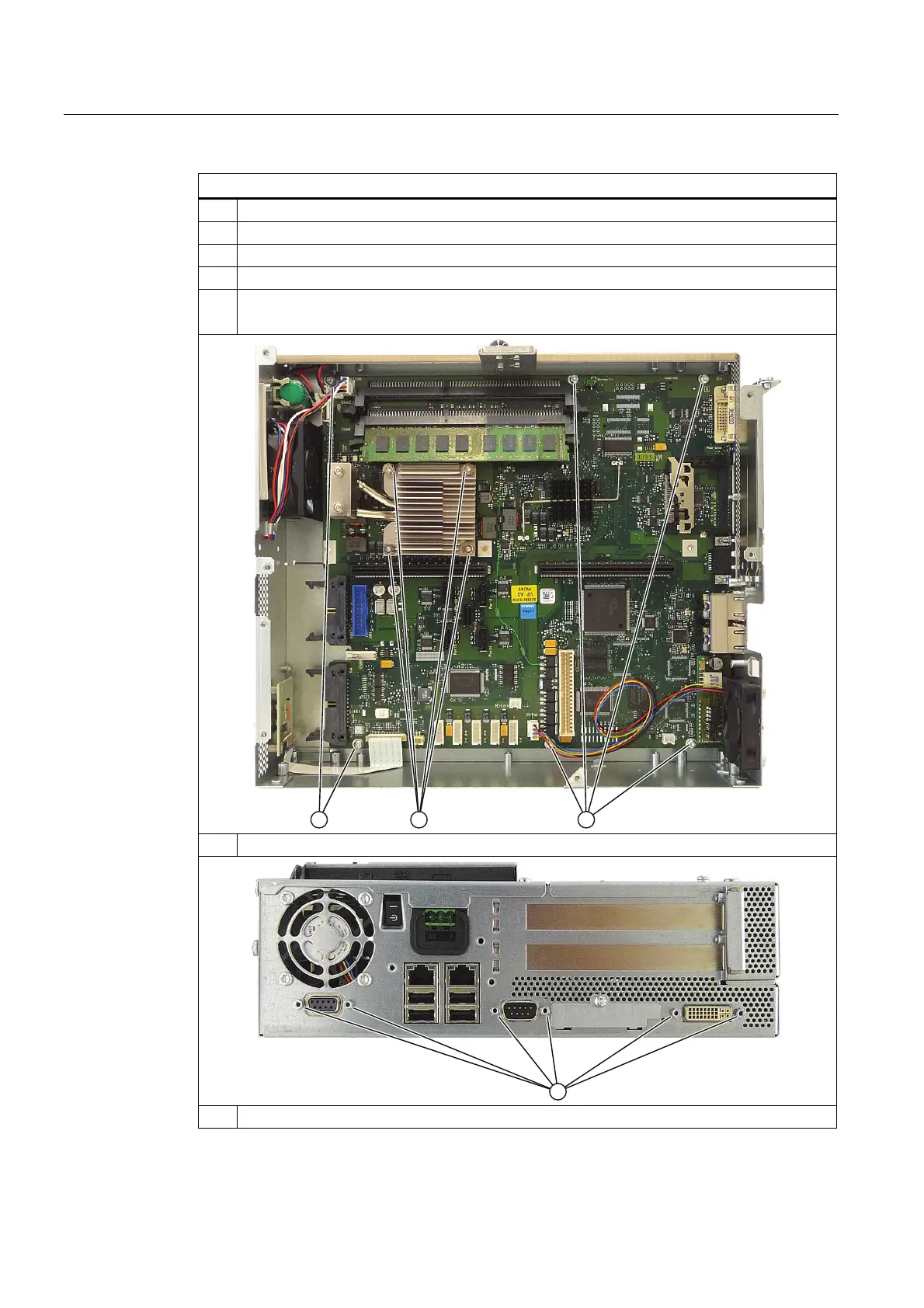

Remove the screws â‘  (6 pieces) and then the screws â‘¡ (4 pieces). Remove the processor
heat sink.



8 Remove the hexagon bolts (6 pieces) from the ports.

9 Remove the motherboard.
