Siemens SIMATIC HMI IPC677C User Manual

Service and maintenance
11.7 Expansion and parameter assignment
SIMATIC HMI IPC677C
Operating Instructions, 04/2013, A5E02722710-04
129
11.7.4.3 Removing / installing an optical drive
Preparations
Isolate the device from mains and disconnect all connection cables.
Required tools
You need the following screwdrivers to remove the the DVD burner:
● Torx T10 to mount/remove the drive bay
● Torx T6 to install/remove the drive
Removing the DVD burner drive

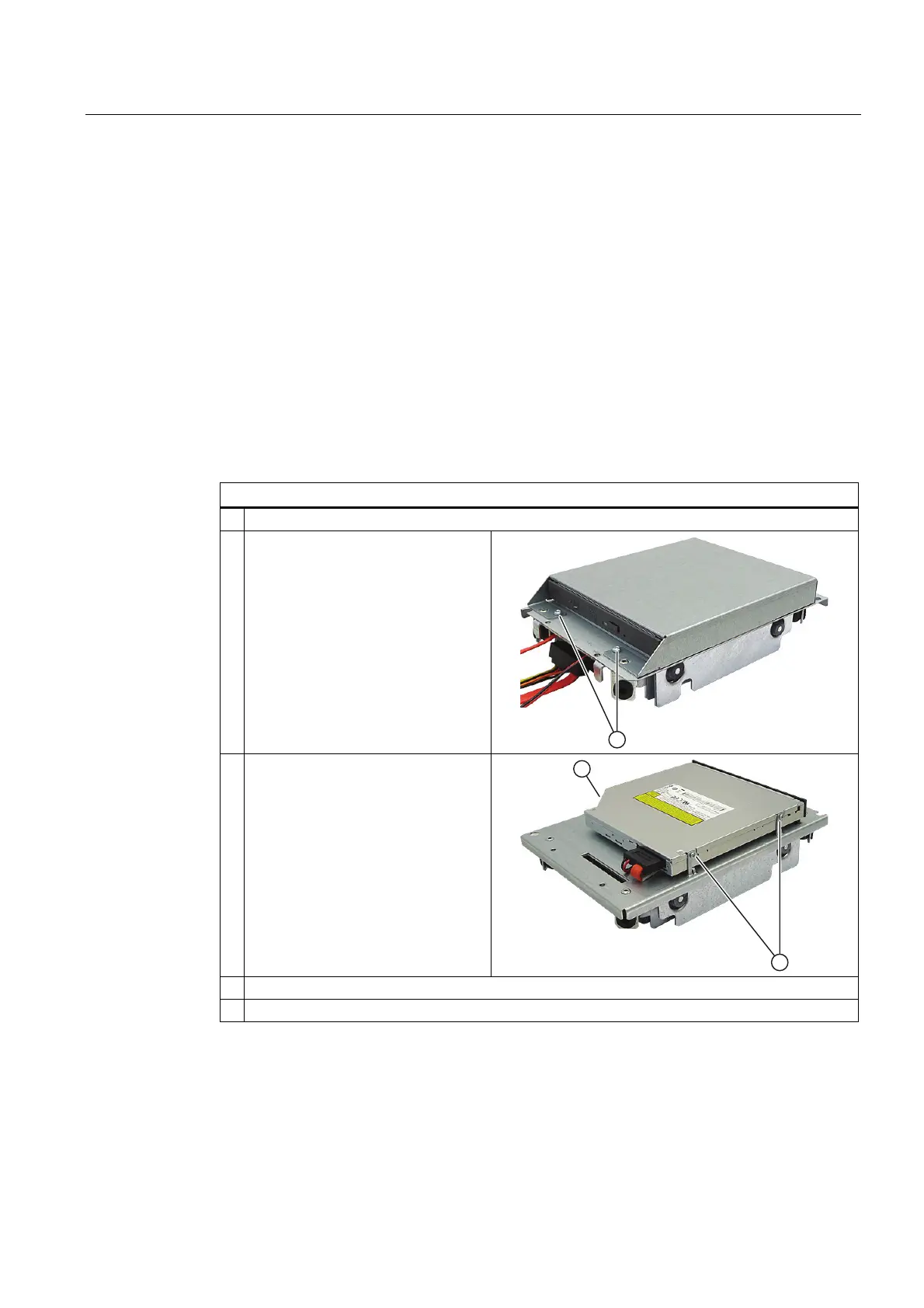

How to remove a DVD burner drive
1 Remove the drive bay module.
2
Loosen the screws ① on the DVD
burner drive bay.

3
Remove the retaining screws
① of
the drive.


4 Disconnect the power supply and the data cable from the drive.
5 Lift the drive out.
