Service and maintenance
11.7 Expansion and parameter assignment
SIMATIC HMI IPC677C
126 Operating Instructions, 04/2013, A5E02722710-04

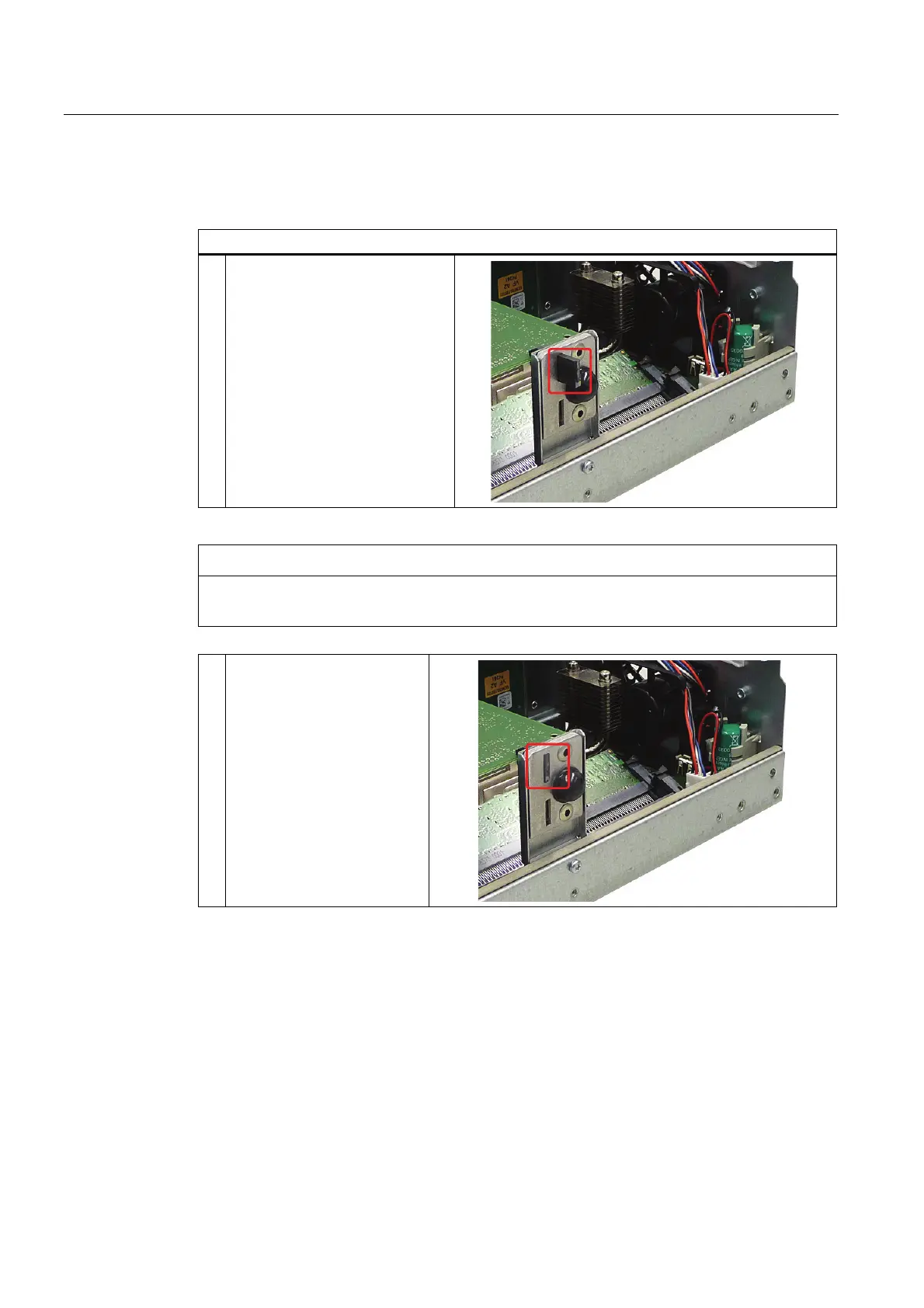

Inserting the slider
Proceed as follows when using the slider:
How to install a slider
1 Push the slider through the guide
slot until it is seated firmly on the
module. Insert the module into the
slot.
NOTICE
Do not put pressure on the module! Do not apply excessive force on the slider when you
push it onto the module.
2 Cut off the rest of the slider
element: Use a knife to apply a
cut on the slider at the upper
edge of the bracket and then
break this section off. Cut off
the residual element using a
side cutter.
Notes on the allocation of resources
The two slots for the PCI cards each have an exclusive interrupt. Information on the
assignment of the PCI IRQ line to the PCI slot is available in the BIOS setup, "Advanced
menu" section, and in the detailed descriptions of the "Bus board" section.
