Siemens SIMATIC HMI IPC677C User Manual

Dimensional drawings
15.1 Dimension drawing IPC
SIMATIC HMI IPC677C
192 Operating Instructions, 04/2013, A5E02722710-04
0
/
1

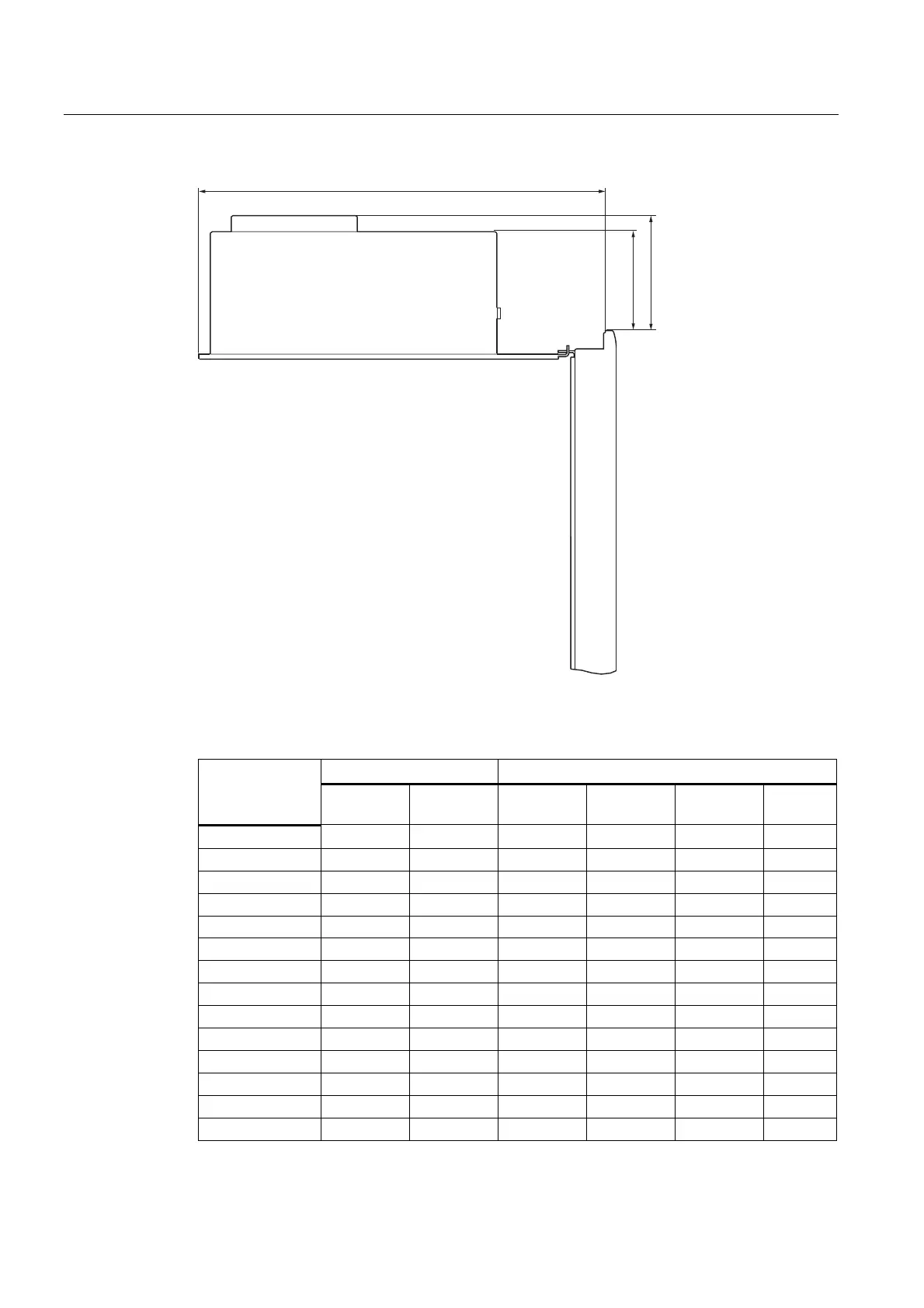

Figure 15-2 Dimension drawing IPC, computer unit swung away from control unit
Table 15- 1 Dimensions of IPC677C in mm
Key panel Touch panel
Control unit
12" TFT 15" TFT 12" TFT 15" TFT 15" TFT
INOX
19" TFT
A 482.6 482.6 400.0 482.6 482.6 482.6
B 310.3 354.8 310.3 310.3 310.3 400.0
C 447.2 447.2 366.0 450.0 450.0 450.0
D 314.9 314.9 314.9 314.9 314.9 314.9
E 30.8 49.8 37.8 46.6 46 56.1
F 39.8 59.8 48.3 58.6 60 68.1
G 288.3 324.4 288.3 288.3 288.3 378.0
H 270.4 270.4 270.4 270.4 270.4 270.4
I 104.5 123.5 123.0 120.3 126 129.5
J 121.9 140.9 141 138 135 147
K 10.5 10.5 10.5 10.5 6 10.8
L 41.9 30.0 53.4 24.4 20 18.4
M 350.6 369.0 369.1 366.5 371 375.6
N 59.3 48.1 70.8 41.8 38.1 35.8
