Detailed descriptions
16.1 Motherboard
SIMATIC HMI IPC677C
202 Operating Instructions, 04/2013, A5E02722710-04
Ethernet RJ45 connection
LED 1 Off: 10 Mbps
Lit in green color: 100 Mbps
Lit in orange color: 1000 Mbps
–
LED 2 Lit: Active connection
(to a hub, for example)
Flashing: Activity
–
Note
The interfaces available on the device have been numbered so they can be clearly
distinguished. This numbering may deviate from the numbering provided by the respective
operating system.

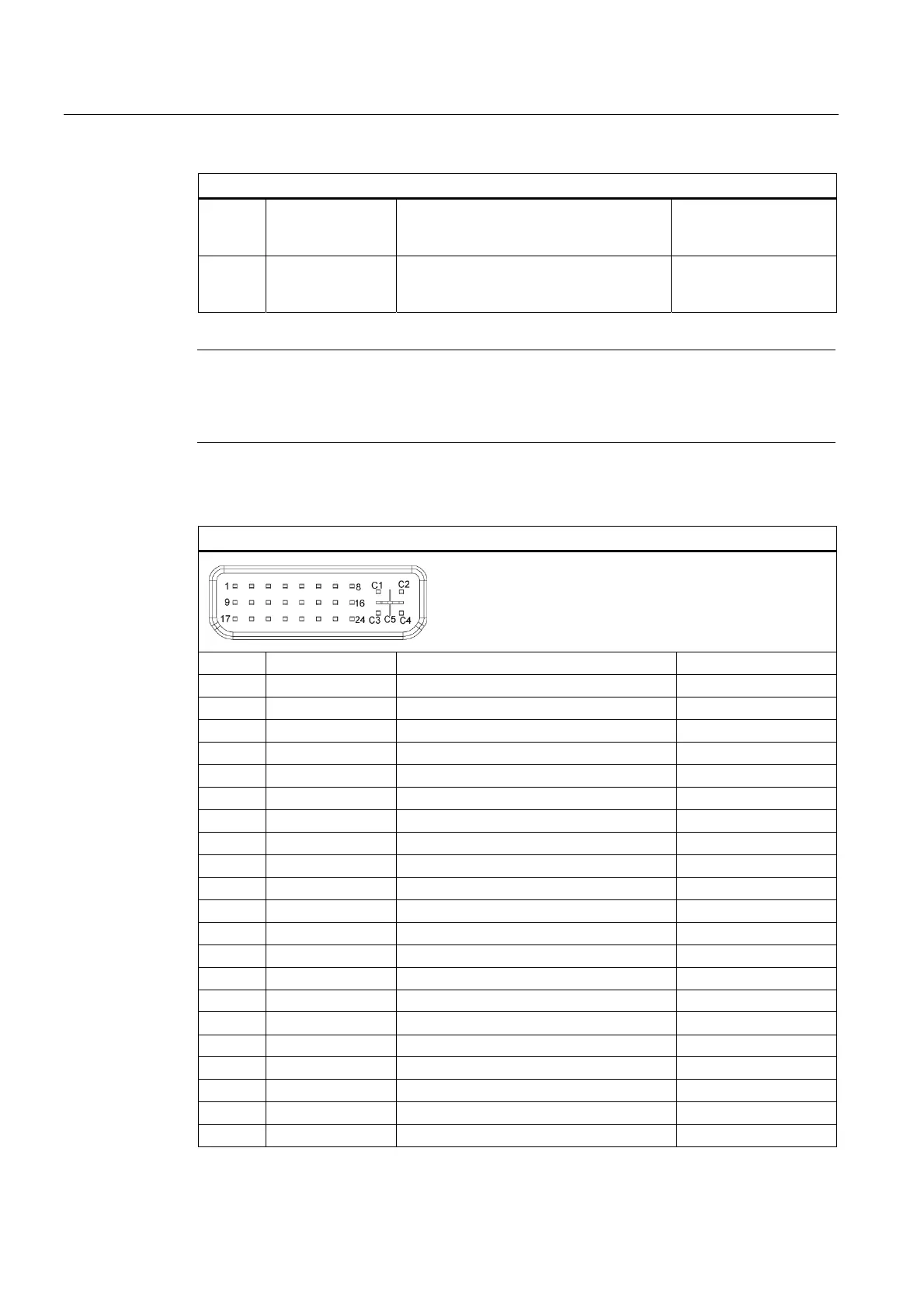

DVI-I port, X70
DVI-I port
Pin no. Short description Meaning Input / Output
S GND Ground –
S1 GND Ground –
C1 R Red Output
C2 G Green Output
C3 B Blue Output
C4 HSYNC Horizontal synchronizing pulse Output
C5 GND Ground –
CSA GND Ground –
1 TX2N TDMS data 2- Output
2 TX2P TDMS data 2+ Output
3 GND Ground –
4 NC Unassigned –
5 NC Unassigned –
6 DDC CLK DDC clock Input / Output
7 DDC CLK DDC data Input / Output
8 VSYNC Vertical synchronizing pulse Output
9 TX1N TDMS data 1- Output
10 TX1P TDMS data 1+ Output
11 GND Ground –
12 NC Unassigned –
13 NC Unassigned –
