Mounting
4.3 Fix the device with stainless steel front using clamps
SIMATIC HMI IPC677C
Operating Instructions, 04/2013, A5E02722710-04
41

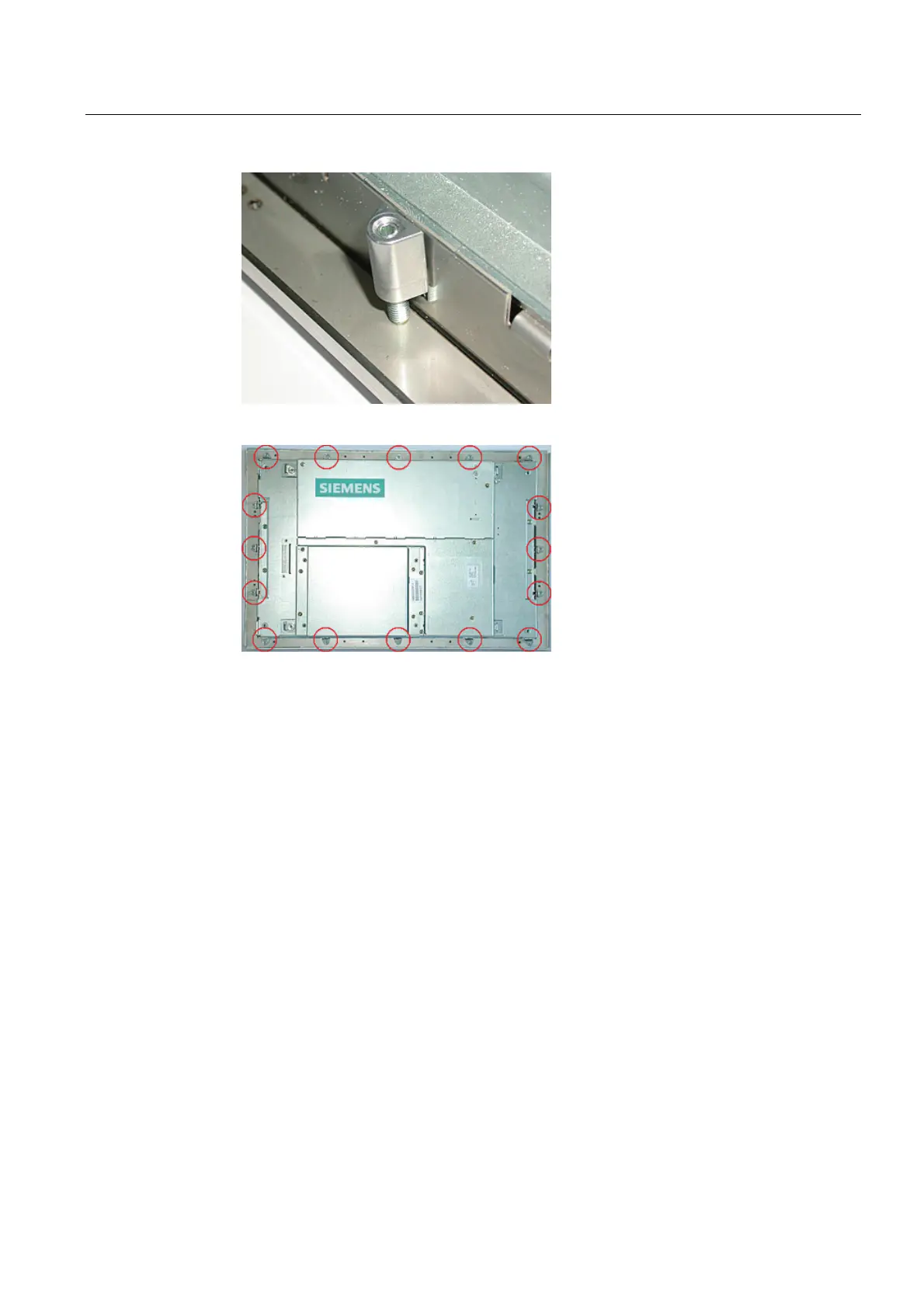

Figure 4-4 Proper positioning of the clamp
Figure 4-5 Position of the clamps
6. Check the proper seating of the seal on the front side. If it is not seated properly, repeat
the installation.
