Connecting
5.2 Connecting the 100 - 240 V AC Power Supply
SIMATIC HMI IPC677C
48 Operating Instructions, 04/2013, A5E02722710-04
Connecting

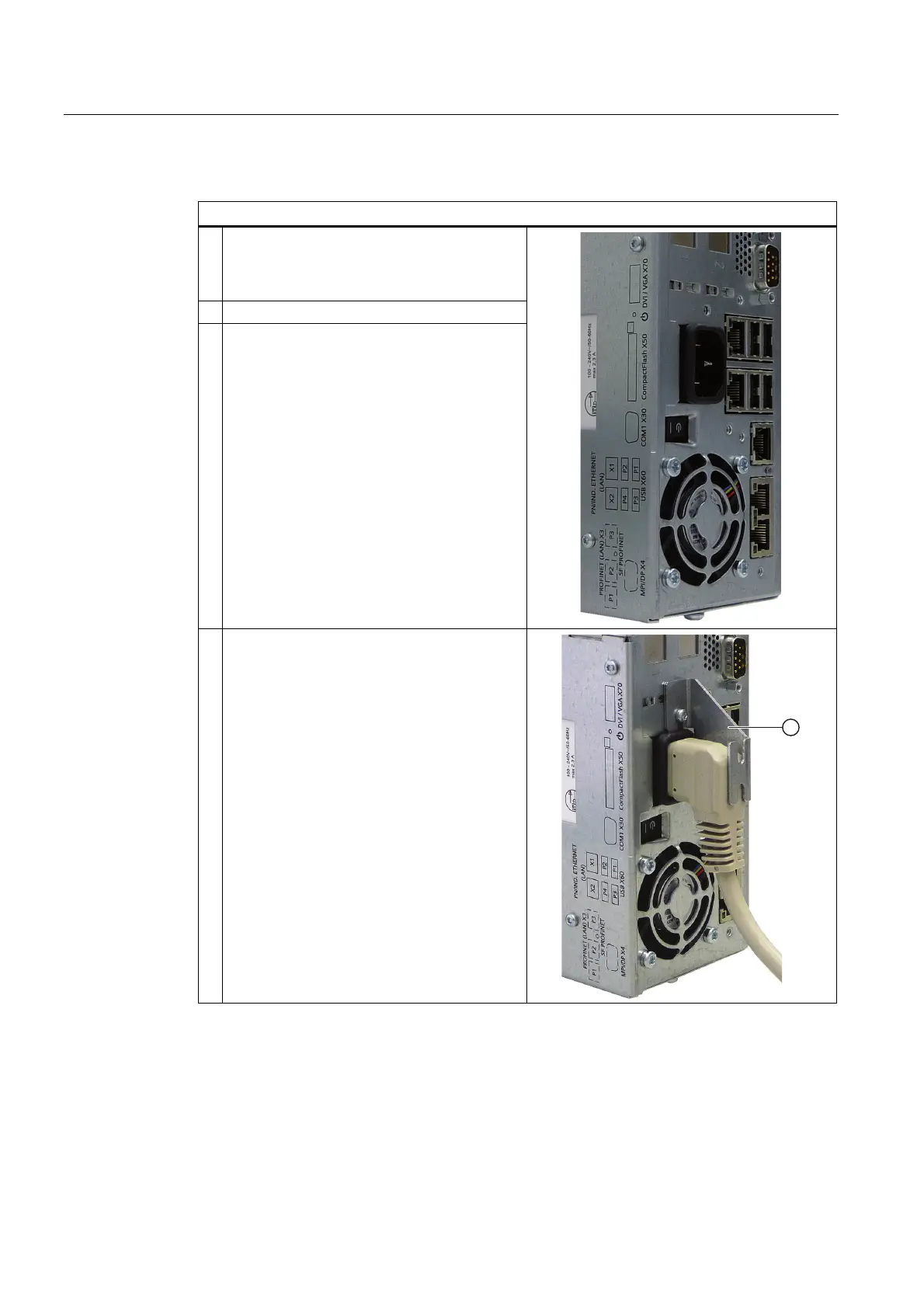

How to connect the device to the 120 V AC / 230 V AC power supply
1 Ensure that the ON/OFF switch is in "0"
position (Off) when you plug in the power cord
in order to avoid unintentional startup of the
device.
2 Connect the IEC connector
3 Connecting the power cord to the power socket
4 Fasten the cable with the supplied power plug
latch ①, if necessary.
