Commissioning
7.9 Notes on operation
SIMATIC HMI IPC677C
Operating Instructions, 04/2013, A5E02722710-04
71
RAID system management functions
The pre-installed RAID system software offers enhanced functionality for RAID system
operation and management. Start the software by selecting the "Start > Programs > Intel
Rapid Storage Technology command.

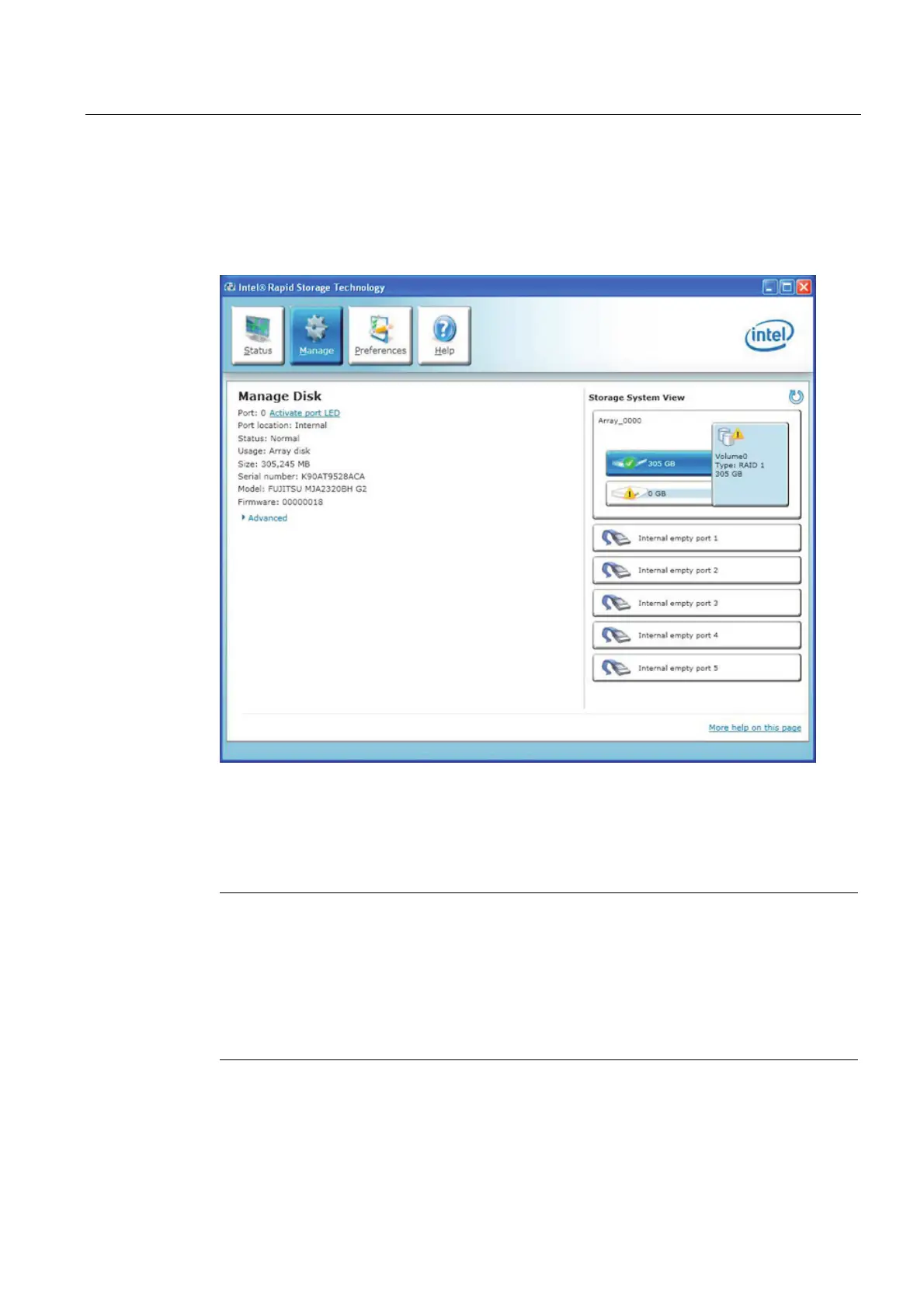

Figure 7-2 Example
The "Manage > Advanced" command returns details of the RAID volumes.
The command "Help > System Report > Save" can be used to create a report with details of
the RAID volumes.
Note
The RAID status is always indicated in Windows.
A hard drive can be synchronized at operating system level if a fault is detected. It may take
up to several hours to synchronize a new disk in the background, depending on the size of
the hard disk and on the system load.
The redundant system state RAID 1 is reached again only after synchronization is
completed.
