1.4 External design of the device
SIMATIC IPC BX-39A
Operating Instructions, 07/2022, A5E50715883-AA
13
1.4 External design of the device

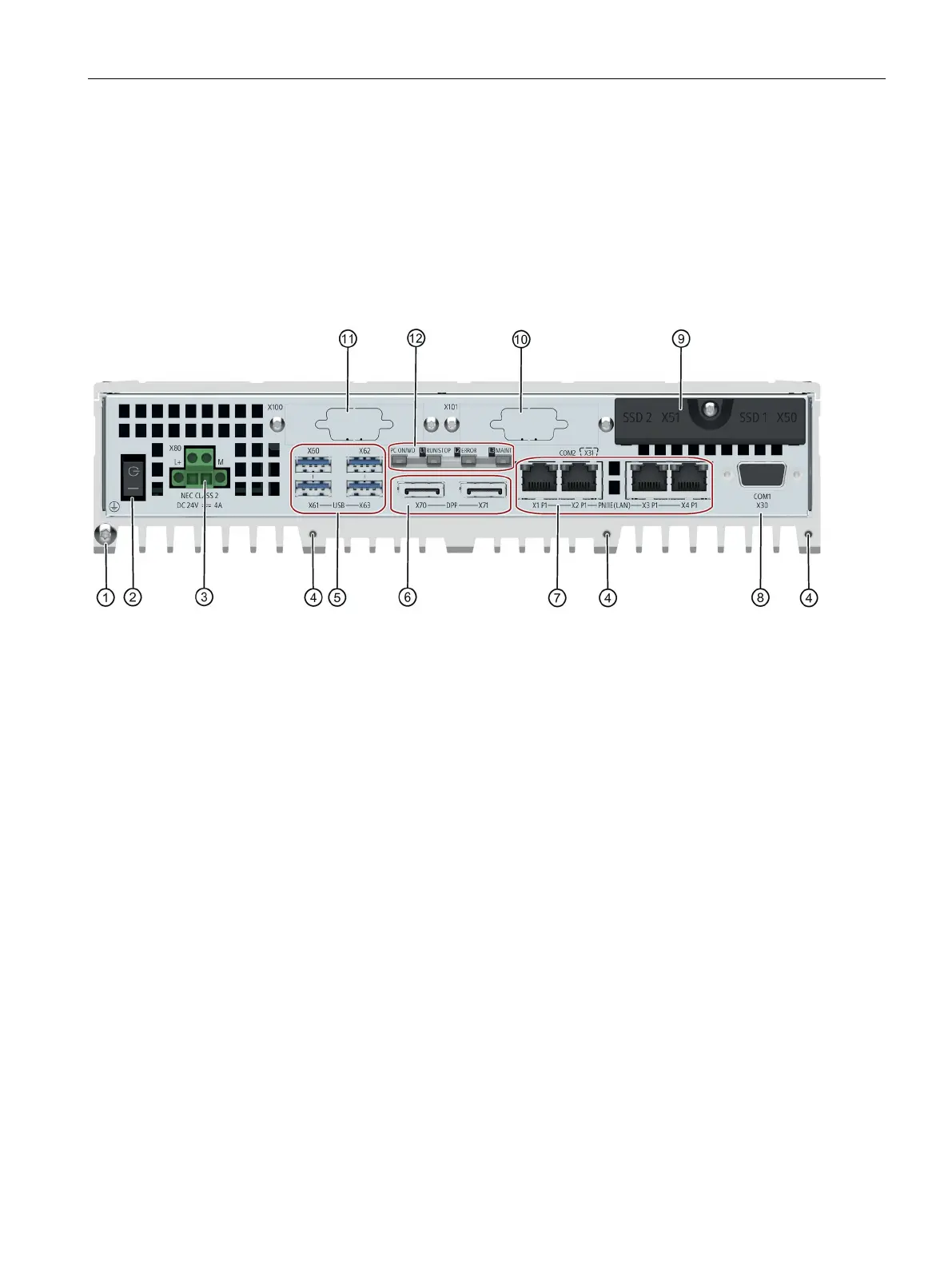

1.4.1 Interfaces and operating elements
Device without expansion slots
①
Protective conductor
Connection for functional grounding
② On/off switch You switch on the device with the on/off switch. The on/off switch does not isolate the de-
vice from the power supply.
• Position "ON", when the "_" symbol is pressed.
•
Position "OFF" is the delivery state.
③ 24 V DC
X80
Power supply connection
④
Position for fixing screws of the strain relief
⑤ 4 × USB
X60/X61/X62/X63
USB 3.2 Gen 2 type A, high current, backward compatible
⑥ 2 x DPP
X70/X71
Connection for monitors with DisplayPort interface
⑦ 4 × Ethernet
X1 P1/X2 P1/X3
P1/X4 P1
Connections for Ethernet RJ45 for 10/100/1000 Mbps
• Ethernet X1 P1 is iAMT-capable
•
Ethernet X2 P1, Ethernet X3 P1 and Ethernet X4 P1
⑧
COM1 X30
Serial interface 1 (V.24), 9-pin SUB-D socket
⑨ 2 x slot for SSD drive
SSD1 X50/SSD2 X51
SSD drives in NVMe format, installed in SIMATIC IPC Slider
⑩ Opening for expansion
interface X101 or
Interfaces of external expansion modules (M.2 format)
COM2 X31 (optional)
Serial interface 2 (V.24), 9-pin SUB-D socket (optional)
