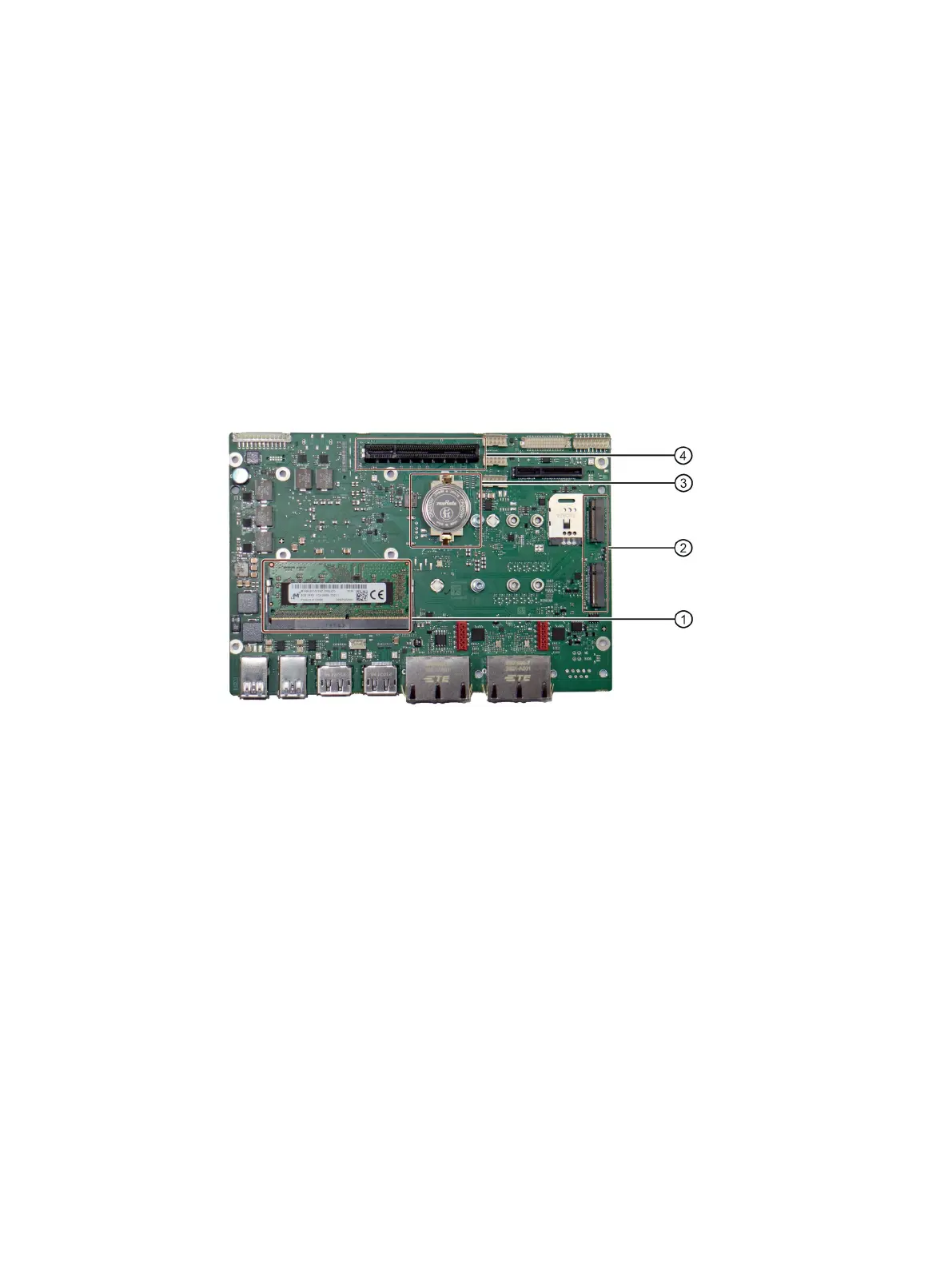

Siemens SIMATIC IPC PX-39A PRO - Hardware Description; Motherboard; Layout of the Motherboard

Technical specifications
8.8 Technical specifications of graphics/display
SIMATIC IPC PX-39A PRO
Operating Instructions, 11/2022, A5E51699950-AA
93
8.8 Technical specifications of graphics/display
See the note in "Applicability of technical specifications (Page 88)".
Graphics controller
Graphics controller
Intel® UHD Graphics 16 EUs:
• Intel® Celeron® 6600HLE
• Intel® Xeon® W-11155MLE
Intel® UHD Graphics 32 EUs:
• Intel® Xeon® W-11865MLE
•
Intel® Xeon® W-11555MLE
Resolutions/frequencies/colors
DisplayPort (DP1.4-capable): Max. 4096 × 2304 / 60 Hz / 36 bits
Display
15"
19"
22"
24"
Display type
LCD TFT with
extended view-
ing angle
LCD TFT
LCD TFT with
extended view-
ing angle
LCD TFT with
extended view-
ing angle
Active display area
345 x 195 mm
410 x 230 mm
475 mm x 267
mm
527 mm x 296.
5 mm
Resolution
1920 x 1080
pixels
1920 x 1080
pixels
1920 x 1080
pixels
1920 x 1080
pixels
Displayable colors
Up to 16.7 million
Brightness control
Yes, value range 0 to 99
1
0 = backlighting off
Backlight
Half-brightness Lifetime
(MTBF
1, 2
)
LED
50000 h
LED
50000 h
LED
30000 h
LED
30000 h
Pixel error class in accord-
ance with ISO 9241-307
II
Power consumption
14 W
16.5 W
11 W
22 W
1
Via SetBrightness dialog: 9 to 99 (≙ 10 to 100%),
via SetBrightness command line call: 0 to 99
2
MTBF: Operating hours after which the maximum brightness is reduced by half compared to the
original value. MTBF is increased by using the integrated dimming function, for example, time-con-
trolled via screen saver or centrally via PROFIenergy.
8.9 Technical specifications of the interfaces
Observe the information in "Applicability of technical specifications (Page 88)" and use only
original connections of the I/O to be connected.
DisplayPort
1
2 x connection of DisplayPort monitor
Keyboard
USB support
