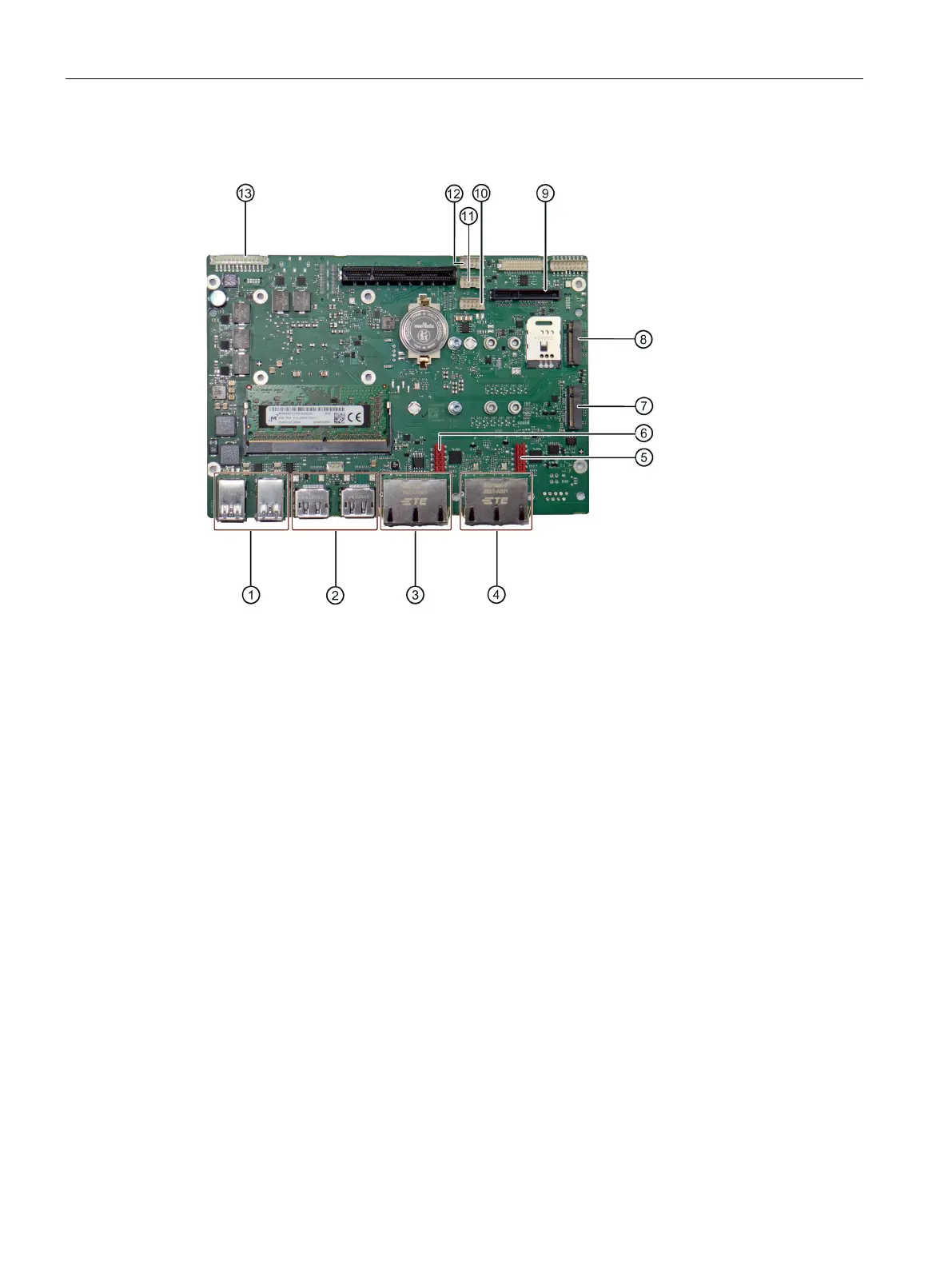

Siemens SIMATIC IPC PX-39A PRO - Position of the Interfaces on the Motherboard

Technical specifications
8.9 Technical specifications of the interfaces
SIMATIC IPC PX-39A PRO
94 Operating Instructions, 11/2022, A5E51699950-AA
Mouse
USB support
USB
4 × USB 3.2 Gen 2 type A, high current, backward compatible
Ethernet
2
4 × Ethernet interface (RJ45), 10/100/1000 Mbps
• 1 x Ethernet 1: Intel® Jacksonville i219-LM; iAMT-capable
3, 4
• 1 x Ethernet 2: Intel® Springville i210-IT
•
2 x Ethernet 3, 4: Intel® EC 1000S
Wake on LAN, Remote Boot and the following Teaming modes are sup-
ported
5
:
• Adapter Fault Tolerance (AFT)
• Adaptive Load Balancing (ALB)
• IEEE 802.3ad Dynamic Link Aggregation (DLA)
• Static Link Aggregation (SLA)
•
Switch Fault Tolerance (SFT)
COM1 (optional)
RS232/ RS422/ RS485, 115 kbps max., 9-pin SUB-D, male
1
An analog monitor can be used with an adapter cable (optional).
2
For unambiguous labeling, the Ethernet interfaces are numbered on the enclosure. The numbering
by the operating system can differ.
3
No teaming with iAMT
4
When using iAMT, the X1 P1 interface must be used to connect to remote maintenance.
5
Only possible with ports X1 P1 and X2 P1
