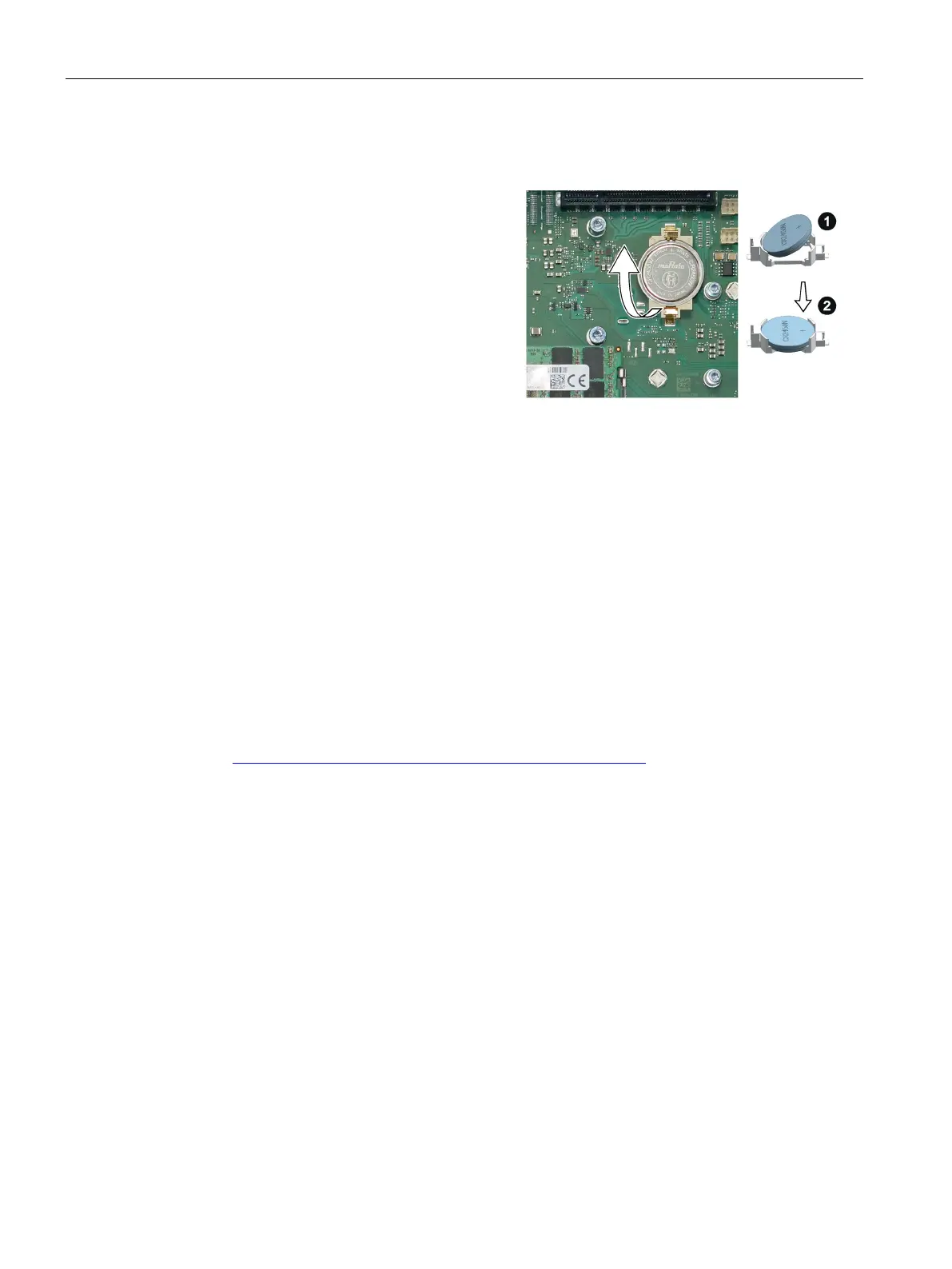

Expanding and assigning parameters to the device
6.2 Expansion modules (M.2)
SIMATIC IPC PX-39A PRO
72 Operating Instructions, 11/2022, A5E51699950-AA
6.2 Expansion modules (M.2)
6.2.1 Usable expansion module (M.2)
The expansion module (M.2) is referred to as the M.2 module in the following.
An M.2 module that complies with the following specifications is supported:
M.2 module 1 (X100)
Dimensions
2230, 2242, 2260, 3030, 3042
Interface
Key B
Protocols
1 × PCIe 3.0 x2 lane
1 × USB 2.0
Buffer memory NVRAM
x
WLAN module
1
, e.g. WiFi
x
WWAN module, e.g. LTE/ 5G
x
Field Bus
x
M.2 NVMe SSD
-
Artificial Intelligence
x
Special (Digital IO)
x
1
Key E/Key A+E is also possible via M.2 Key E-Key B adapter
Conditions when using the M.2 module
• The dimensions of the M.2 module must not exceed the specified dimensions. If the
dimensions are exceeded, you may experience contact problems, malfunctions and
difficulties with the assembly.
• The connection cable between the M.2 module and the interface card should be at least
150 mm long.
See also
Position of the interfaces on the motherboard (Page 114)
Dimension drawing of expansion modules (M.2) (Page 108)
