SIMATIC IPC RW-543A
Operating Instructions, 03/2023, A5E52332059-AA
111
Hardware description
A
A.1 Motherboard

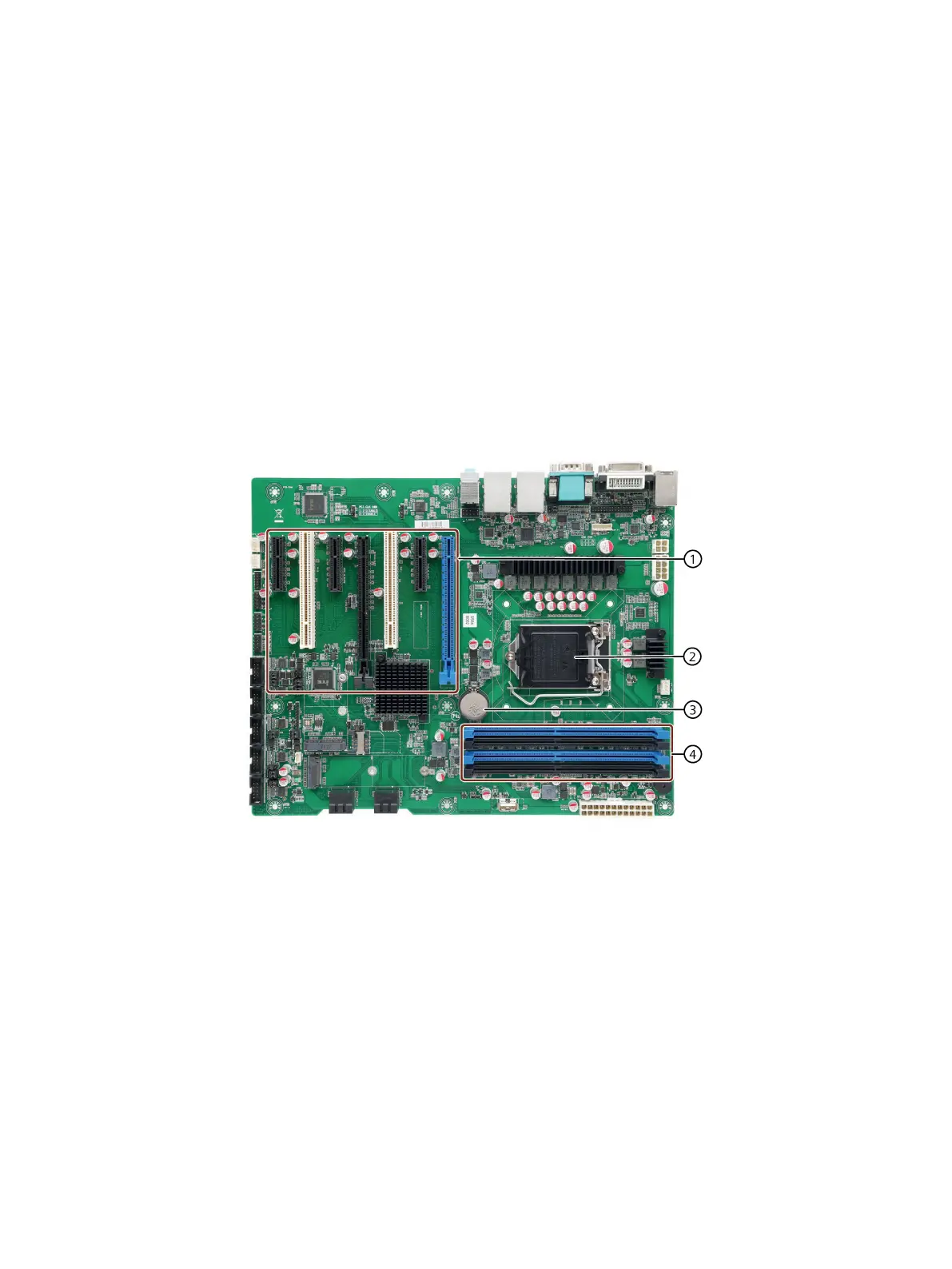

A.1.1 Layout of the motherboard
The motherboard consists of these main components: processor and chipset, six slots for PCIe
modules, two slots for memory modules, internal and external interfaces, Flash BIOS and the
backup battery.
①
Slots for PCIe/PCI modules
②
Slot for CPU Fan and processor
③
Backup battery
④
Slots for memory modules
Technical features of the motherboard
Technical features of the motherboard can be found under "Technical specifications of the
motherboard (Page 81)".
