LED 2
Connection status
OFF
• No cable connected
• Physical link disconnects
• Interface disabled
Yellow
Active connected
Yellow flashing
Data transfer active

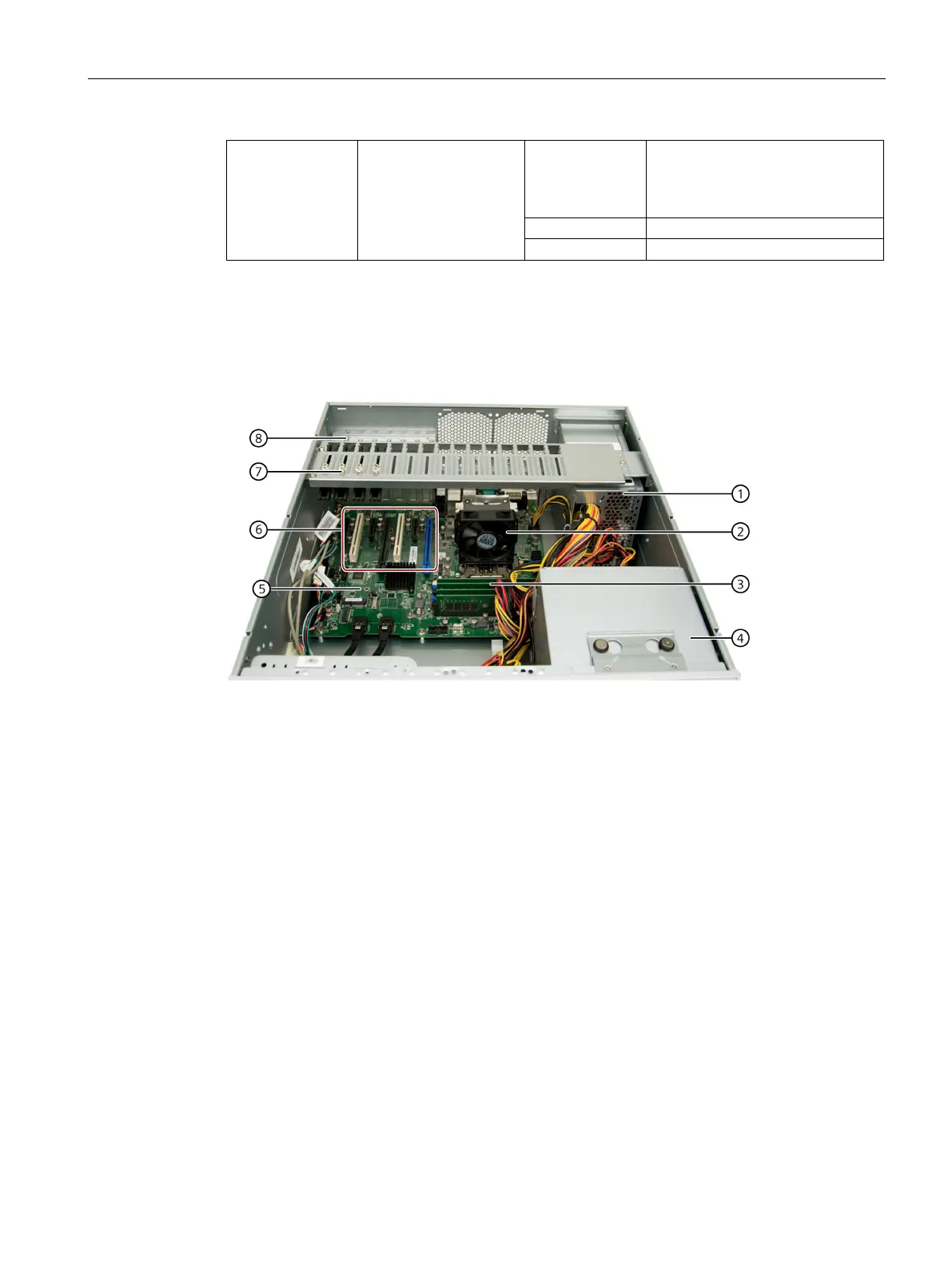

1.5 Internal construction of the device
①
Power supply
②
Heat sink of the processor
③
Motherboard with slots for memory slots
④
Drive cage
⑤
Motherboard
⑥
Slots for expansion cards
⑦
Card holder for expansion cards
⑧
On the enclosure: Numbering of slots for expansion cards
