Product description
1.4 External design of the device
SIMATIC IPC RW-543A
14 Operating Instructions, 03/2023, A5E52332059-AA
Components
(A)
Cover
(B)
Front right door
Additional information
Technical notes and information on the rated conditions are available in the section
Installation options for drive (Page 55).
1.4.4 Interfaces and connections
1.4.4.1 Interfaces
Note
You can find the detailed information on interfaces under "External interfaces (Page 115)".

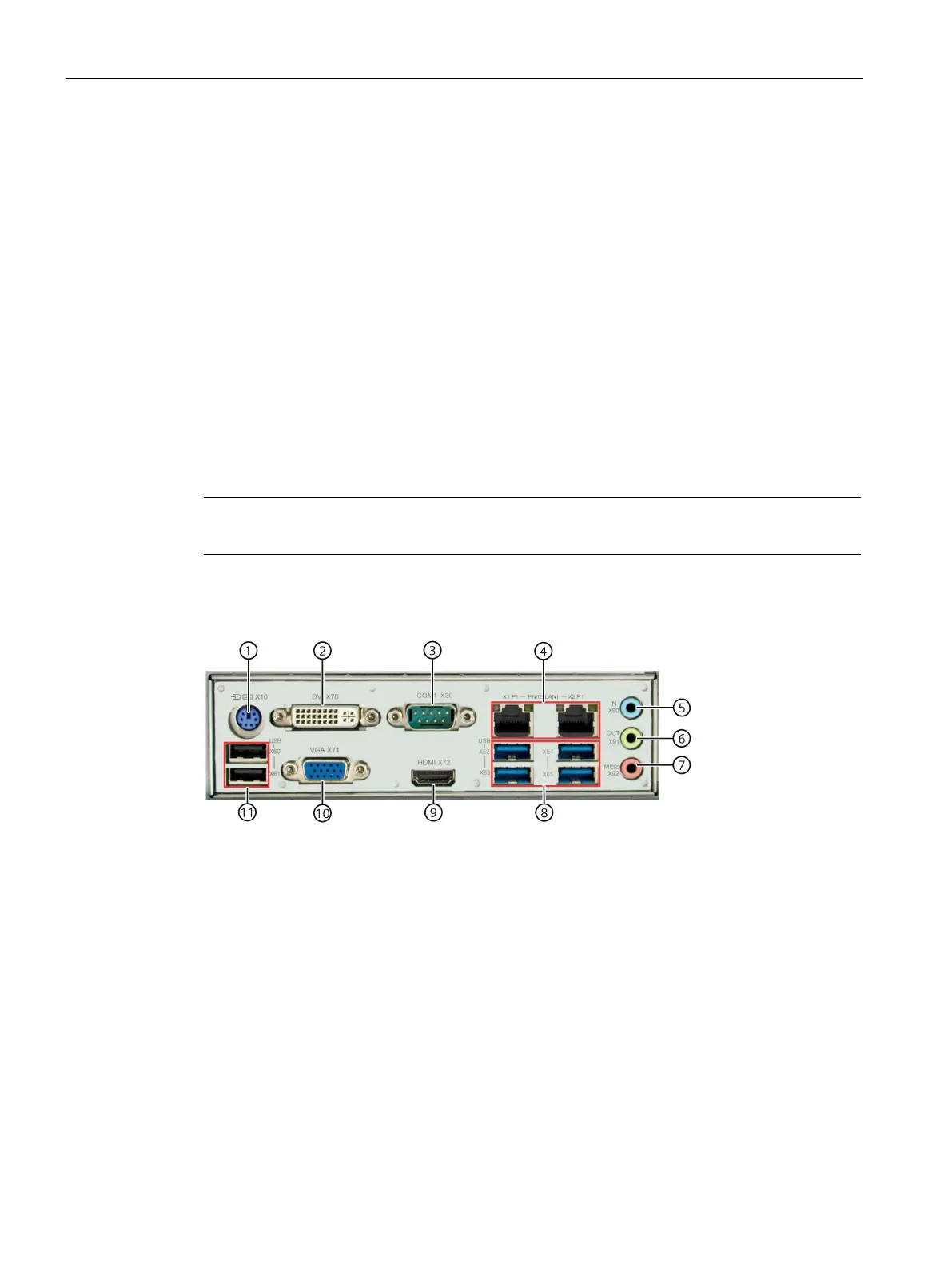

Interfaces at rear of device
①
PS/2 X10
PS/2 Connector (Keyboard & Mouse)
②
DVI X70
DVI-I 24+4P/F Connector (Support DVI-D)
③
COM X30
COM1 DB9/M Connector
④
LAN
1
RJ45 Connector
X1P1/X2P1
RJ-45 Ethernet Port for 10/100/1000Mbps LAN, the MAC-
Address is listed in Component label.
⑤
Line in (blue)
Connection for analog audio source, 3.5 mm phono jack
⑥
Line out (green)
Connection for active speakers or headset, 3.5 mm phono jack
⑦
Microphone (pink)
Connection for microphone, 3.5 mm phono jack
⑧
RJ45_USB2 (USB)
2
X62/X63/X64/X65
Dual USB3.0 TYPE-A Connector
⑨
HDMI X72
HDMI TYPE-A Connector
⑩
VGA X71
VGA DB15/F Connector
⑪
USB X60/X61
Dual USB2.0 TYPE-A Connector
