1.4 External design of the device
SIMATIC IPC RW-543A
Operating Instructions, 03/2023, A5E52332059-AA
13
①
Power supply
②
Function earth
③
Air outlet
④
Interfaces
⑤
Extensible interface
⑥
Expansion slots for:
•
2 × PCI
•
3 × PCIe x4
•
2 × PCIe x16

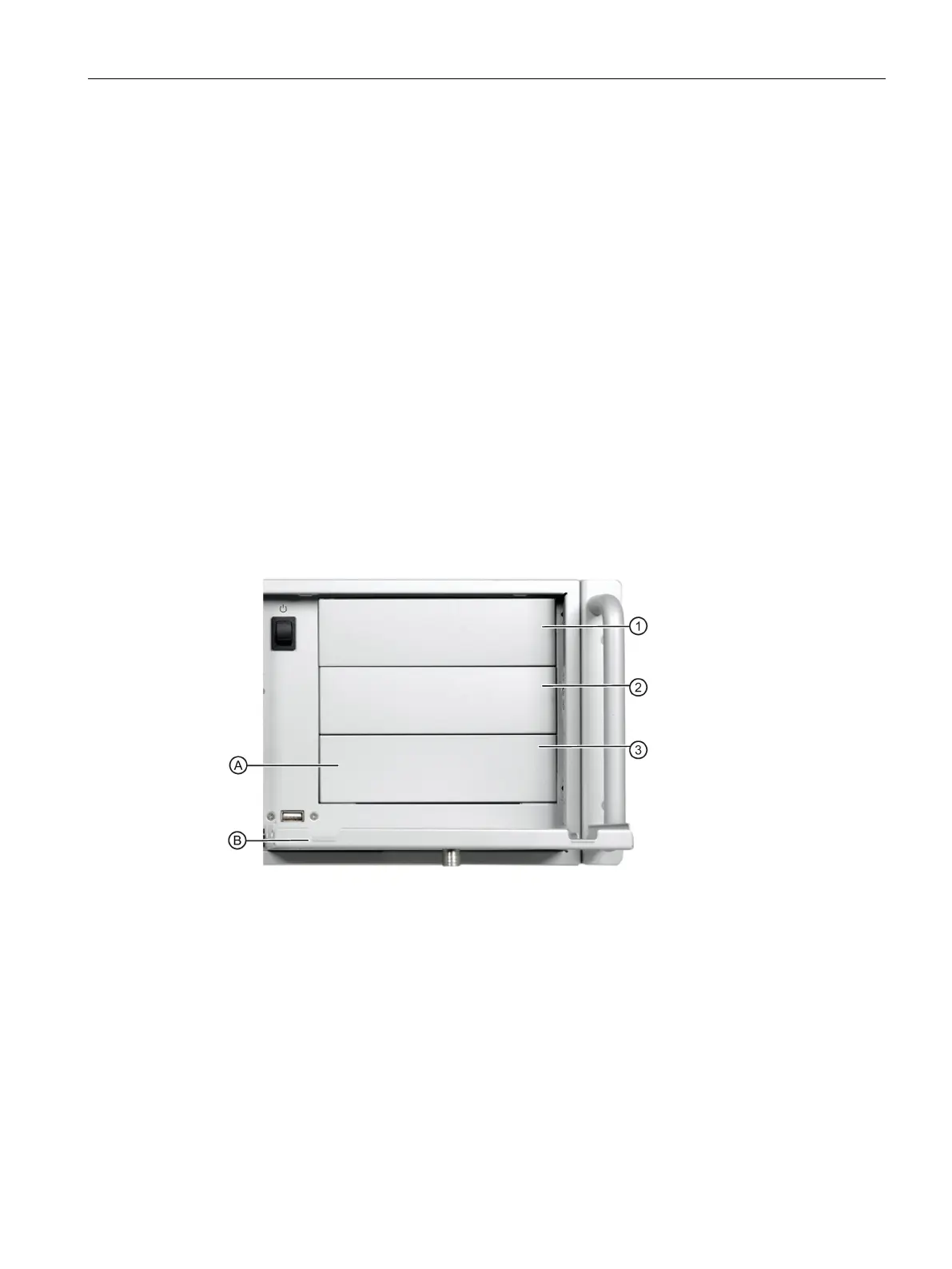

1.4.3 Drive cage
The drive cage is located behind the front door.
In drive cage, drives are permanently installed inside and cannot be accessed externally.
The drives are very well protected against vibration and oscillation ("vibration-damped drive
cage") in this drive cage.
Drive bays
①
Mounting location 1
Mounting location for 3.5" or 2.5" drive in a shock-proof/vibration-
proof fixture or for 5.25" drive or components
②
Mounting location 2
Mounting location for 3.5" or 2.5" drive in a shock-proof/vibration-
proof fixture or for 5.25" drive or components
③
Mounting location 3
Mounting location for 3.5" or 2.5" drive in a shock-proof/vibration-
proof fixture or for 5.25" drive or components
