Product description
1.4 External design of the device
SIMATIC IPC RW-543A
18 Operating Instructions, 03/2023, A5E52332059-AA

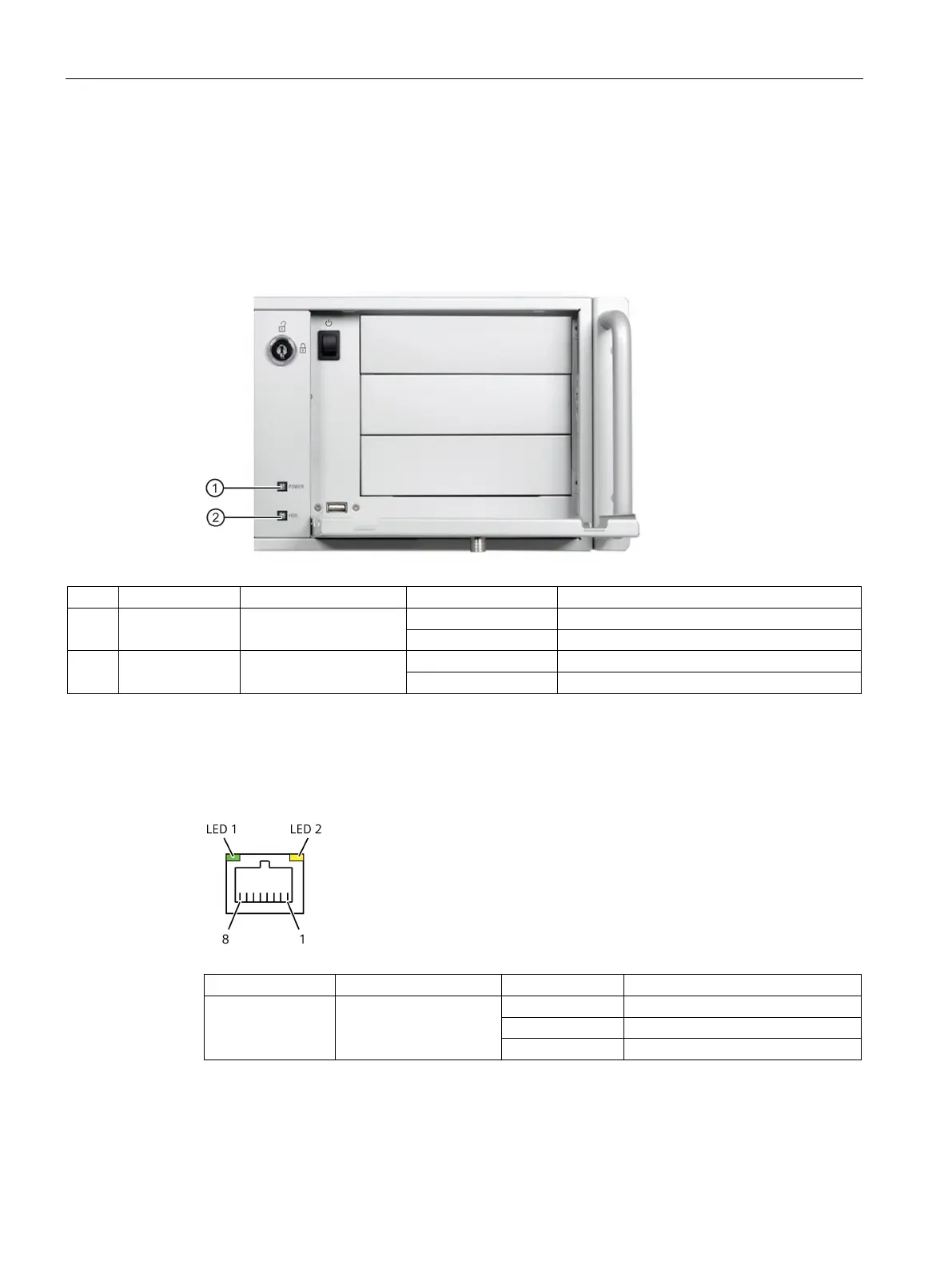

1.4.6 Status displays
1.4.6.1 System status displays
The status displays for the system are located on the front of the device. They provide
information on the status of the device components.
Item
Status display
Meaning
LED
Description
① POWER Operating mode of the
PC
Off
Hibernate, switched off or unplugged
Green
PC in operation
②
HDD
Display for hard disk
access
Off
No accessing
Green flashing
Accessing data
1.4.6.2 Status display of the Ethernet interface
The Ethernet interfaces are numbered on the enclosure to identify them clearly.
The numbering by the operating system can differ.
Status display
Meaning
Status
Meaning of the status
LED 1
Data transmission rate
OFF
10 Mbps
Green
100 Mbps
Orange
1000 Mbps
