Hardware description
A.3 Internal Connector
SIMATIC IPC RW-543A
118 Operating Instructions, 03/2023, A5E52332059-AA

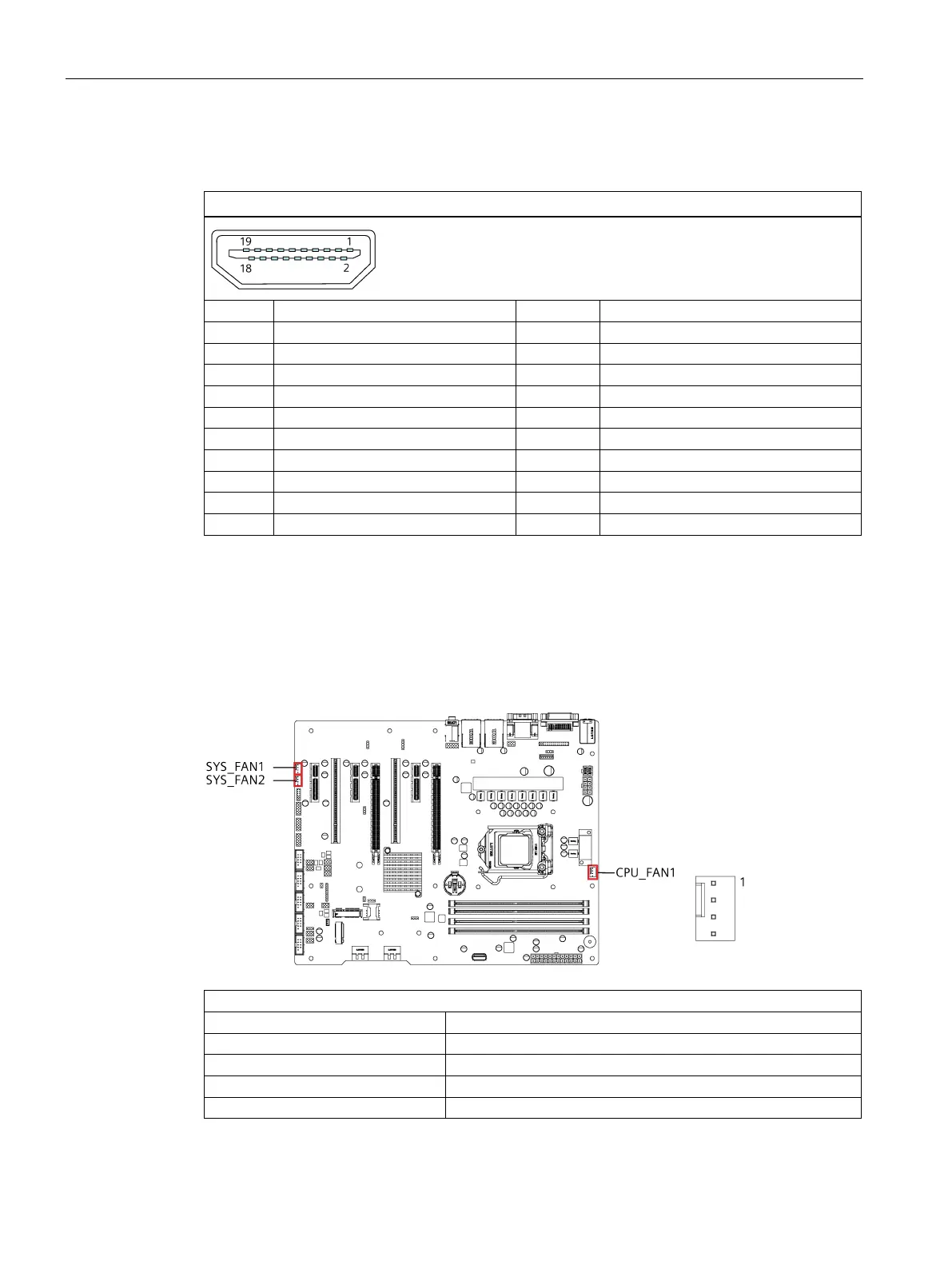

A.2.5 HDMI
HDMI interface
Pin no.
Signal
Pin no.
Signal
1
TMDS data 2+
11
TMDS clock shield
2
TMDS data 2 shield
12
TMDS clock-
3
TMDS data 2-
13
CEC
4
TMDS data 1+
14
No connected
5
TMDS data 1 shield
15
DDC clock
6
TMDS data 1-
16
DDC data
7
TMDS data 0+
17
GND
8
TMDS data 0 shield
18
+5V power
9
TMDS data 0-
19
Hot plug detect
10
TMDS clock+
A.3 Internal Connector
A.3.1 Fan connector
The pin assignment in the table below applies to all fan connectors on motherboard.
FAN Header
Pin setting
Function
1
GND
2
+12V
3
FAN Speed Detection
4
FAN Speed Control
