A.3 Internal Connector
SIMATIC IPC RW-543A
120 Operating Instructions, 03/2023, A5E52332059-AA
F_USB2_1
F_USB2_2
Pin
Definition
Pin
Definition
Pin
Definition
Pin
Definitio
n
1
+ 5V
2
+ 5V
1
+ 5V
2
+ 5V
3
USB2_12-
4
USB2_13-
3
USB2_7-
4
USB2_8-
5
USB2_12+
6
USB2_13+
5
USB2_7+
6
USB2_8+
7
GND
8
GND
7
GND
8
GND
9
10
N/C
9
10
N/C

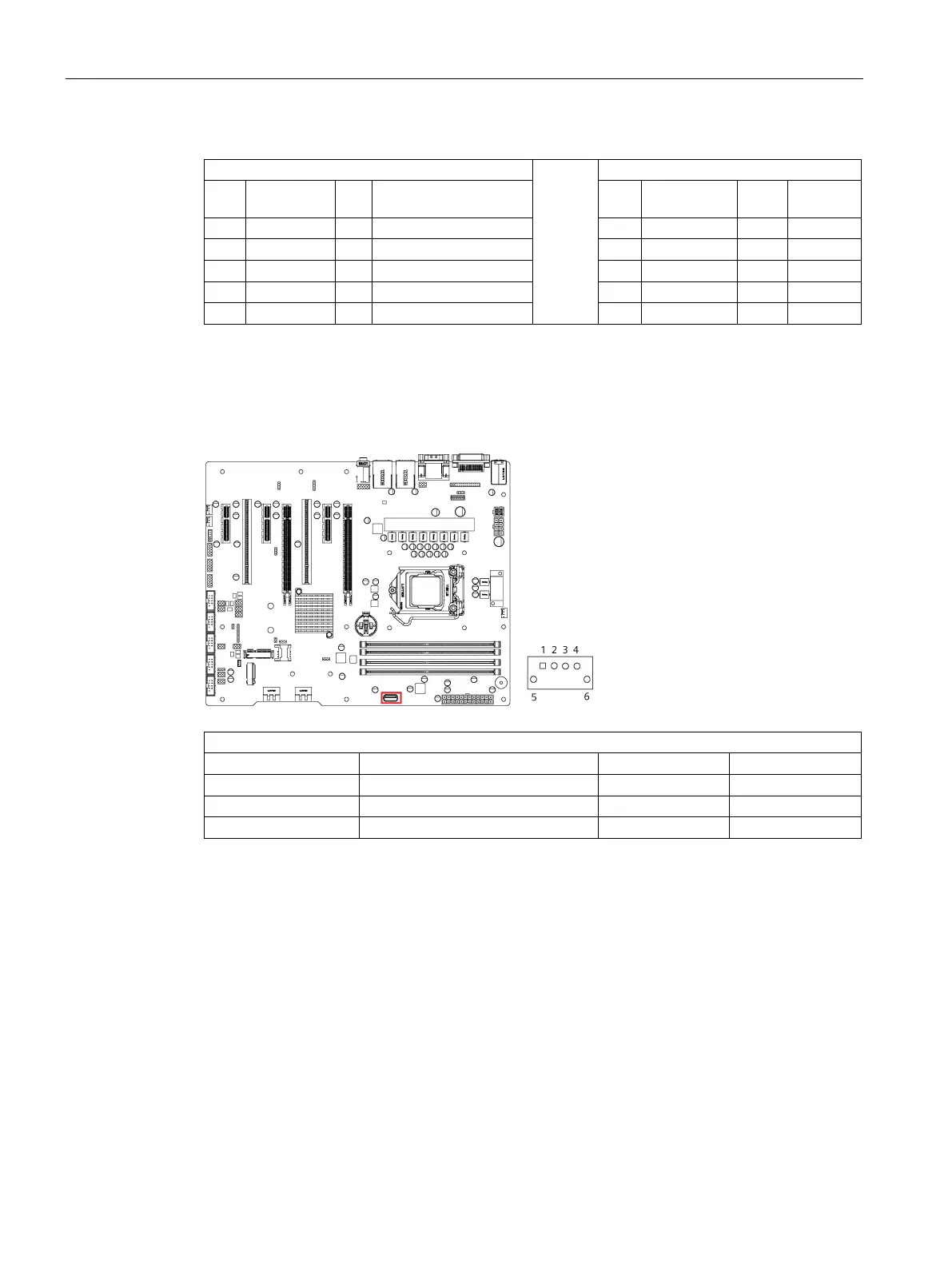

A.3.4 Internal USB 2.0 Vertical Connector
Internal USB 2.0 Vertical Connector provides two Type-A USB 2.0 Ports.
USB 2.0 Vertical Connector
Pin
Definition
Pin
Definition
1
+5V
4
GND
2
S_USB_PN10
5
GND
3
S_USB_PP10
6
GND
