Hardware description
A.3 Internal Connector
SIMATIC IPC RW-543A
Operating Instructions, 03/2023, A5E52332059-AA
119

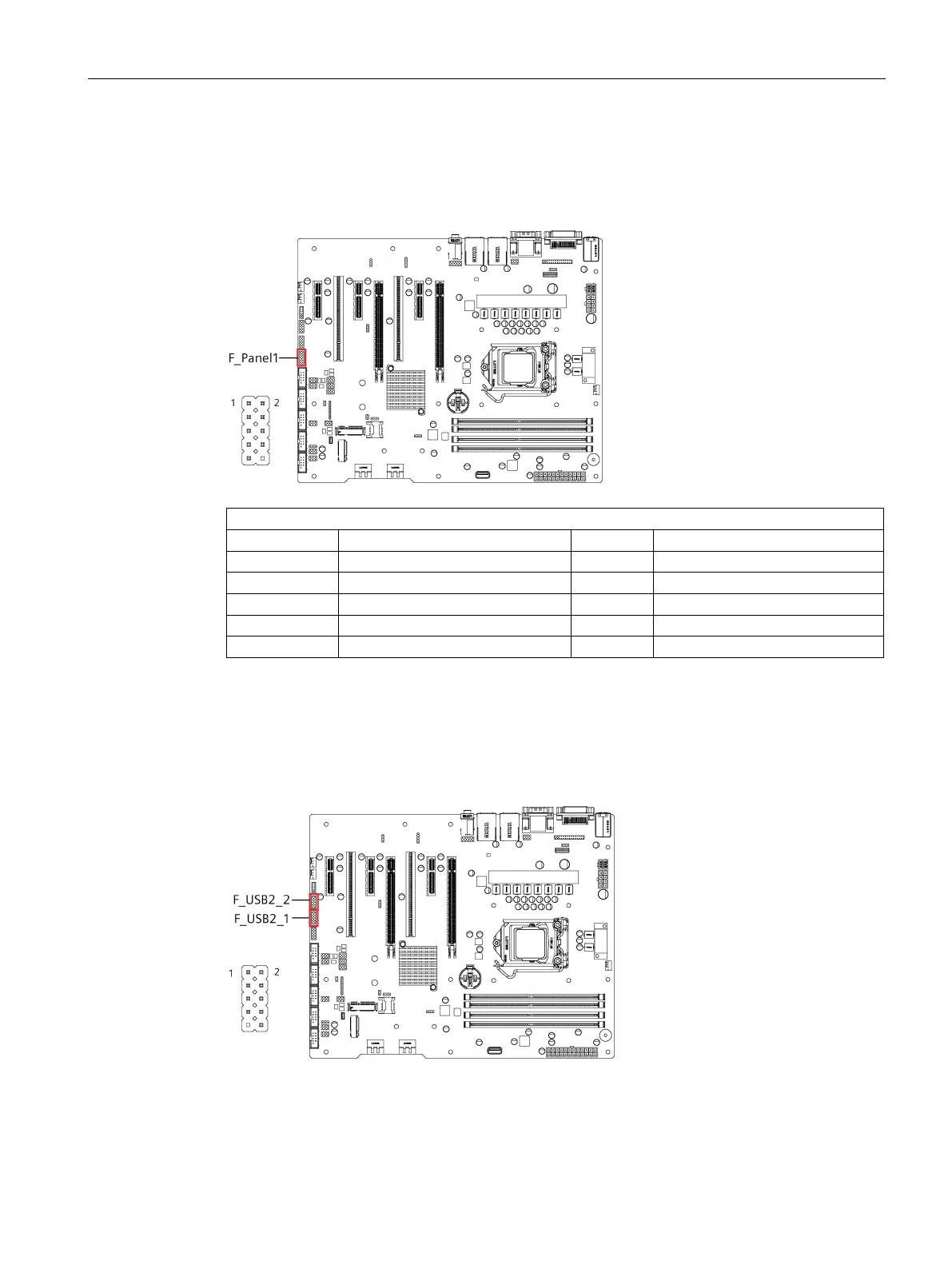

A.3.2 Front panel connector
The front panel connector is used to connect cable to Chassis Front Panel, and provide HDD
LED, Power LED, Power Button and Reset Button functions.
Front Panel Header
Pin
Definition
Pin
Definition
1
HDD 3.3V LED+
2
POWER 3.3V LED+
3
HDD 3.3V LED-
4
POWER 3.3V LED-
5
RESET-
6
POWER+
7
RESET+
8
POWER-
9
N/C
A.3.3 Internal USB 2.0 connector
Internal USB 2.0 Connectors provides front USB 2.0 Header which require appropriate cable
to support.
