Siemens SIMATIC IPC RW-543A User Manual

Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC RW-543A
Operating Instructions, 03/2023, A5E52332059-AA
63
7.3.2 Replacing the device fan
Requirement
• The device is fully disconnected from the line voltage, see "Switching off the device
(Page 44)".
• The front panel cover is open.
• A fan with the same type.
• PH2 screwdriver
Procedure - Removing the fan

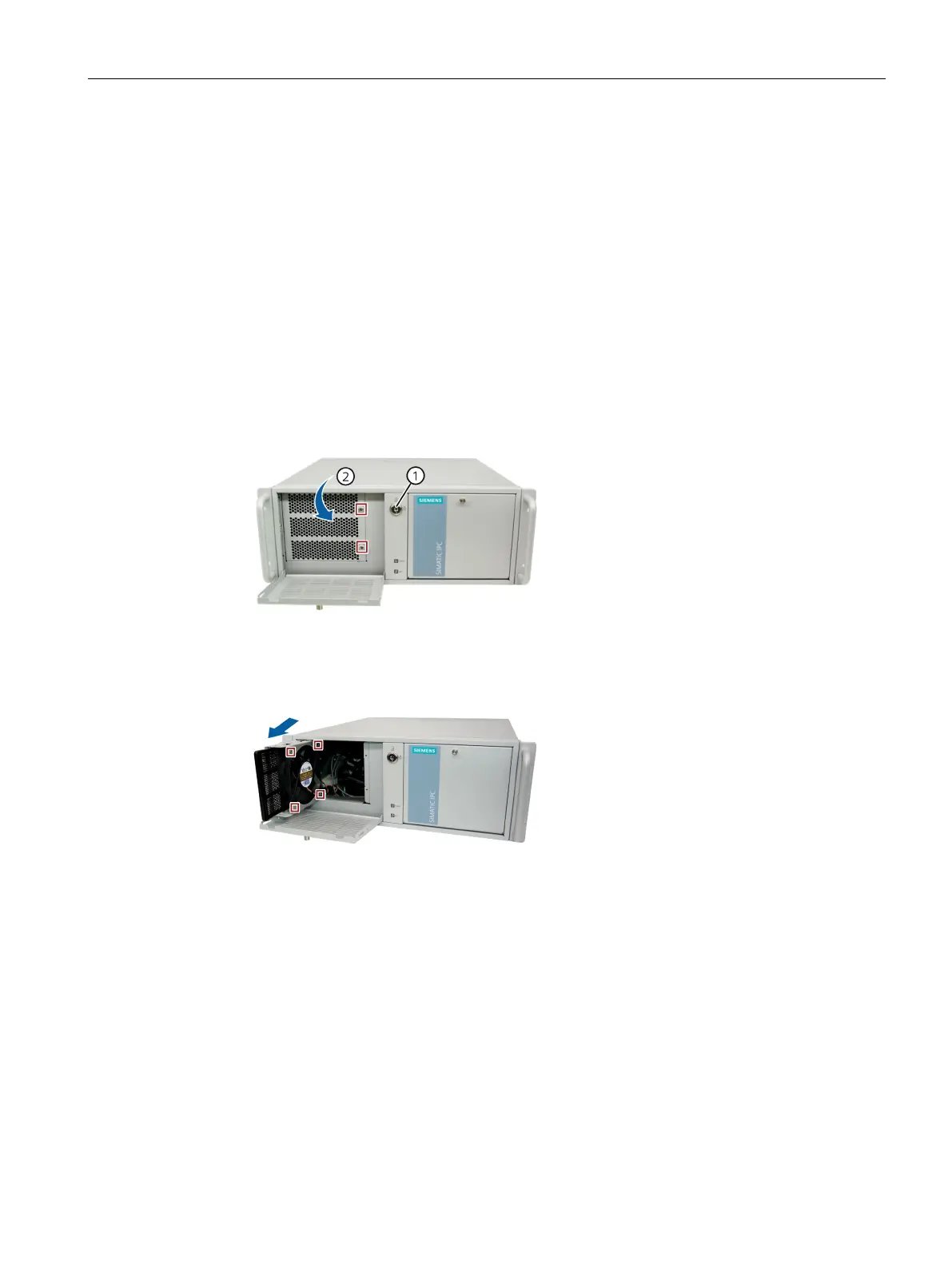

1. Unlock the front cover with the key ①.
2. Pull the handle in the direction of the arrow ② to open the left-front door.
3. Unscrew the marked screws.
4. Pull the marked screws to open the fan bracket.
5. Remove the highlighted screws.
6. Remove the fan in the direction of the arrow.
7. Pull the fan plug from the connector.
Procedure - Installing the fan
To install the fan, follow the steps for removing it in reverse order. During installation, make
sure that the arrow on the fan points away from the fan bracket.
