Dimension drawings
9.1 Dimension drawing of the expansion cards
SIMATIC IPC RW-543A
88 Operating Instructions, 03/2023, A5E52332059-AA
9.1 Dimension drawing of the expansion cards

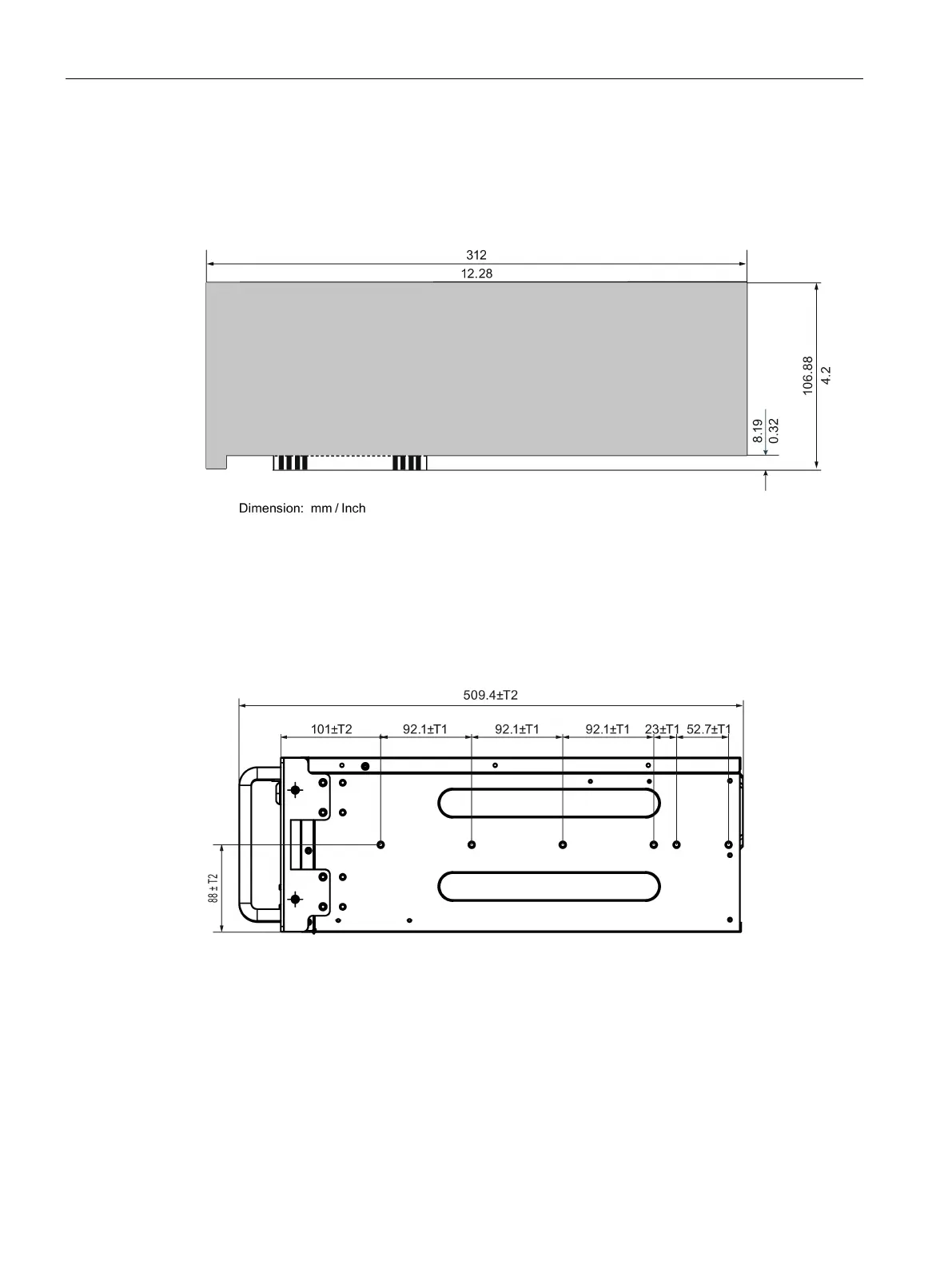

Long PCI card, PCIe card
9.2 Dimension drawing of the telescope rails
Dimensions for bore holes for telescopic rails
Dimensions: mm
T1=Tolerances of ± (0.1mm)/(0.004")
T2=Tolerances of ± (0.3mm)/(0.01")
