Siemens SIMATIC IPC RW-543A User Manual

Hardware description
A.3 Internal Connector
SIMATIC IPC RW-543A
Operating Instructions, 03/2023, A5E52332059-AA
121

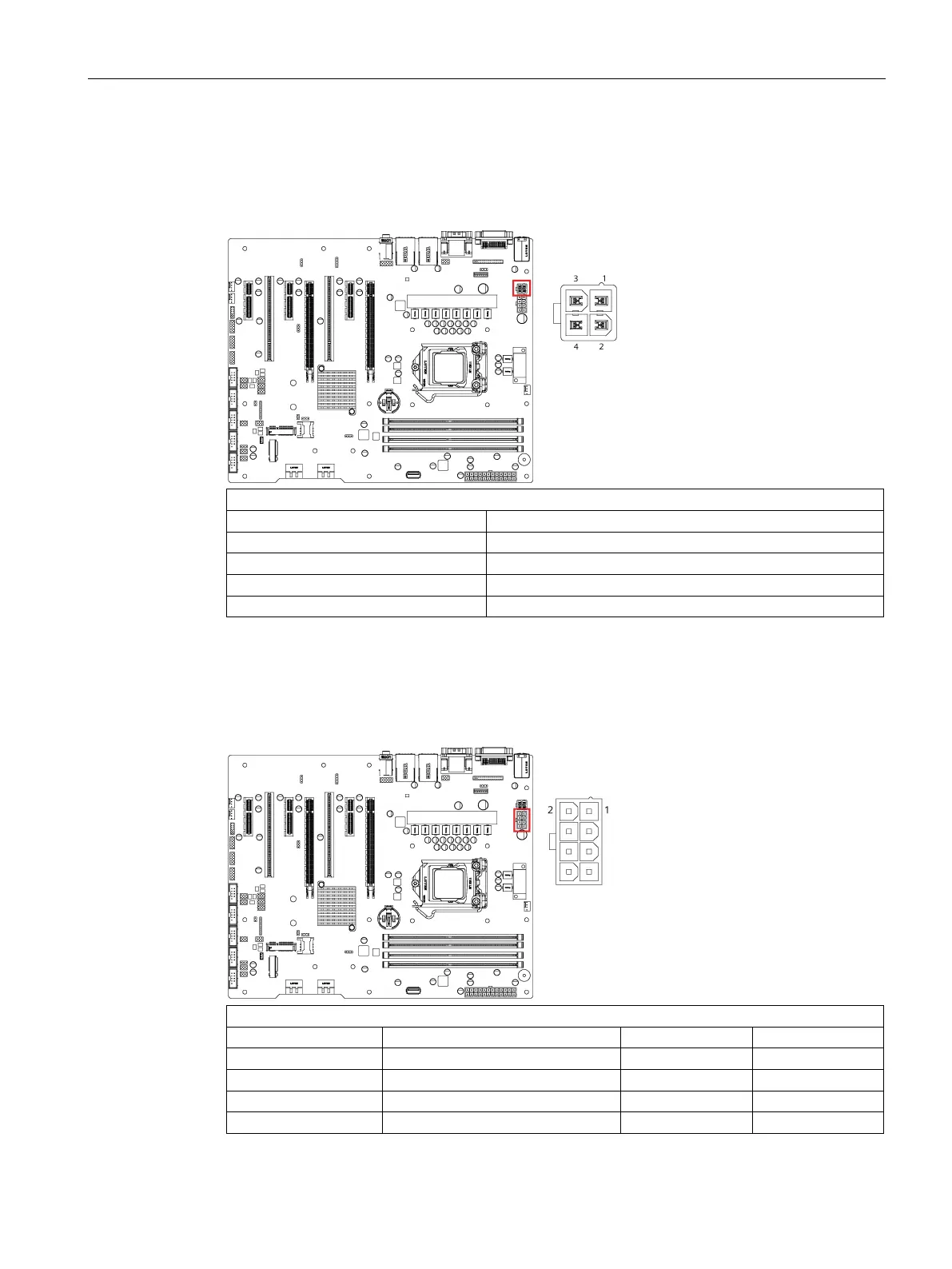

A.3.5 ATX Power 4-pin connector
ATX Power 4‐Pin Connector is for ATX PSU plug. Make sure you insert the ATX PSU plug
on motherboard in the right orientation, otherwise the plug cannot be inserted.
ATX 4-Pin Power Input Connector
Pin
Definition
1
GND
2
GND
3
+12V
4
+12V
A.3.6 ATX power 8-pin connector
ATX Power 8‐Pin Connector is for ATX PSU plug. Make sure you insert the ATX PSU plug
on motherboard in the right orientation, otherwise the plug cannot be inserted.
ATX 8-Pin Power Input Connector
Pin
Definition
Pin
Definition
1
GND
5
GND
2
+12V
6
+12V
3
GND
7
GND
4
+12V
8
+12V
