Hardware description
A.2 External interfaces
SIMATIC IPC RW-543A
Operating Instructions, 03/2023, A5E52332059-AA
115

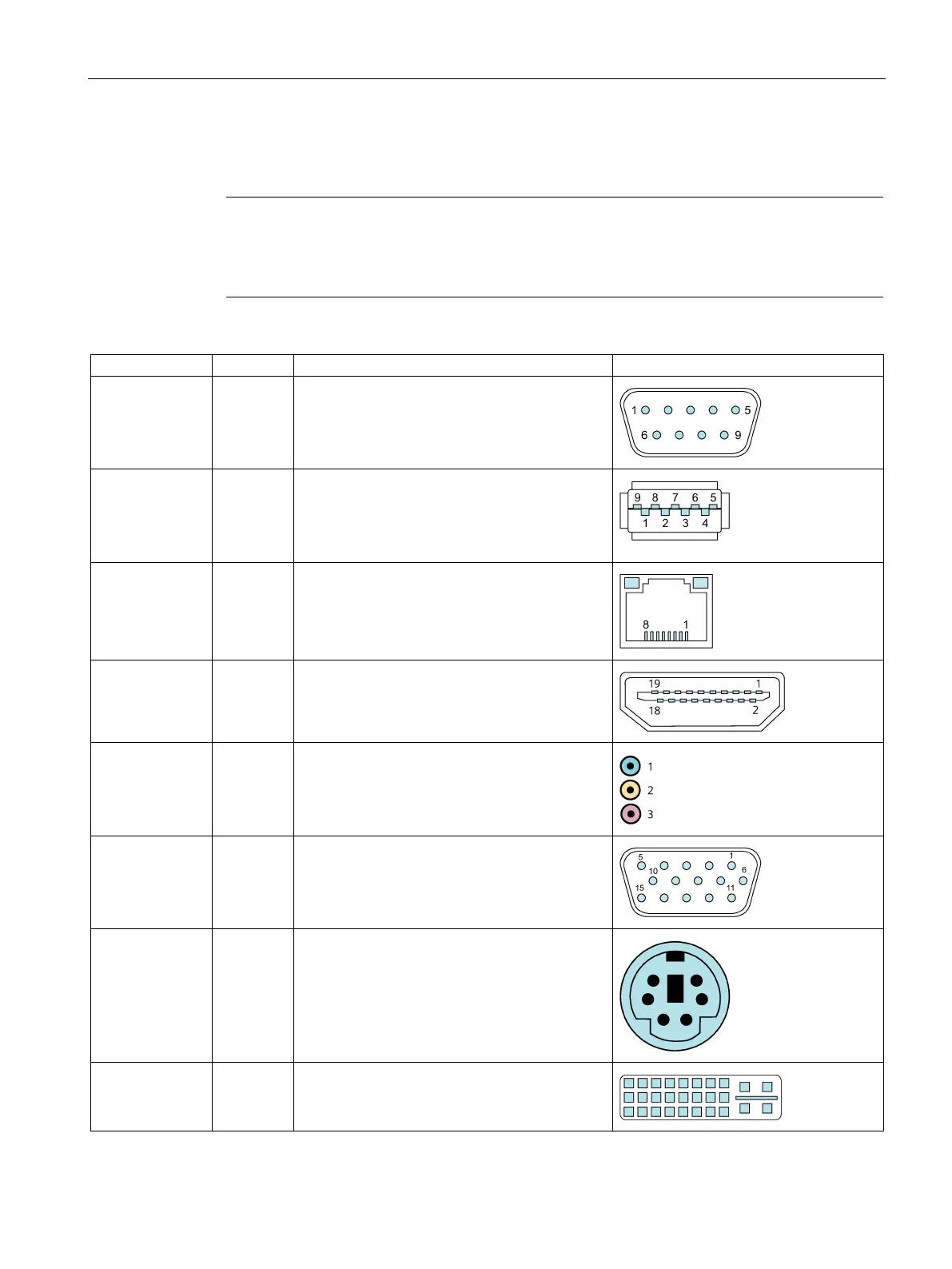

A.2 External interfaces
Note
Interface specification
The data of all external interfaces listed below correspond to the respective interface
specifications and the intended use.
Interface
Connector
Description
Assignment
COM X30 COM1 9-pin standard plug
USB X60-X65
PS/2_USB1,
RJ45_USB1,
RJ45_USB2
USB3 Port 0, 1; USB2 Port 0, 1 interface side
LAN X1P1 and
X2P1
LAN1_U31
G1_12,
LAN2_U31
G1_34
RJ45
HDMI X72
HDMI1
HDMI Type A
Audio AUDIO1 3.5 mm jack
1. Line-In
2. Line-Out
3. Mic-In
VGA
DVI VGA1
Connection of an analog monitor
PS/2 X10
PS/2_USB1
PS/2 Connector (Keyboard and Mouse)
DVI
DVI X70
DVI-I 24+4P/F Connector (Support DVI-D)
