Siemens SIMATIC IPC RW-543A - Power Supply Connections; Operator Controls

Product description
1.4 External design of the device
SIMATIC IPC RW-543A
Operating Instructions, 03/2023, A5E52332059-AA
15
1
See the pin assignment below.
2
Each of the USB port can be disabled/enabled separately by disabling/enabling its
associated USB port in BIOS. On how to disable the USB port, see USB configuration in
Advanced menu (Page 97).
1.4.4.2 Power supply connections

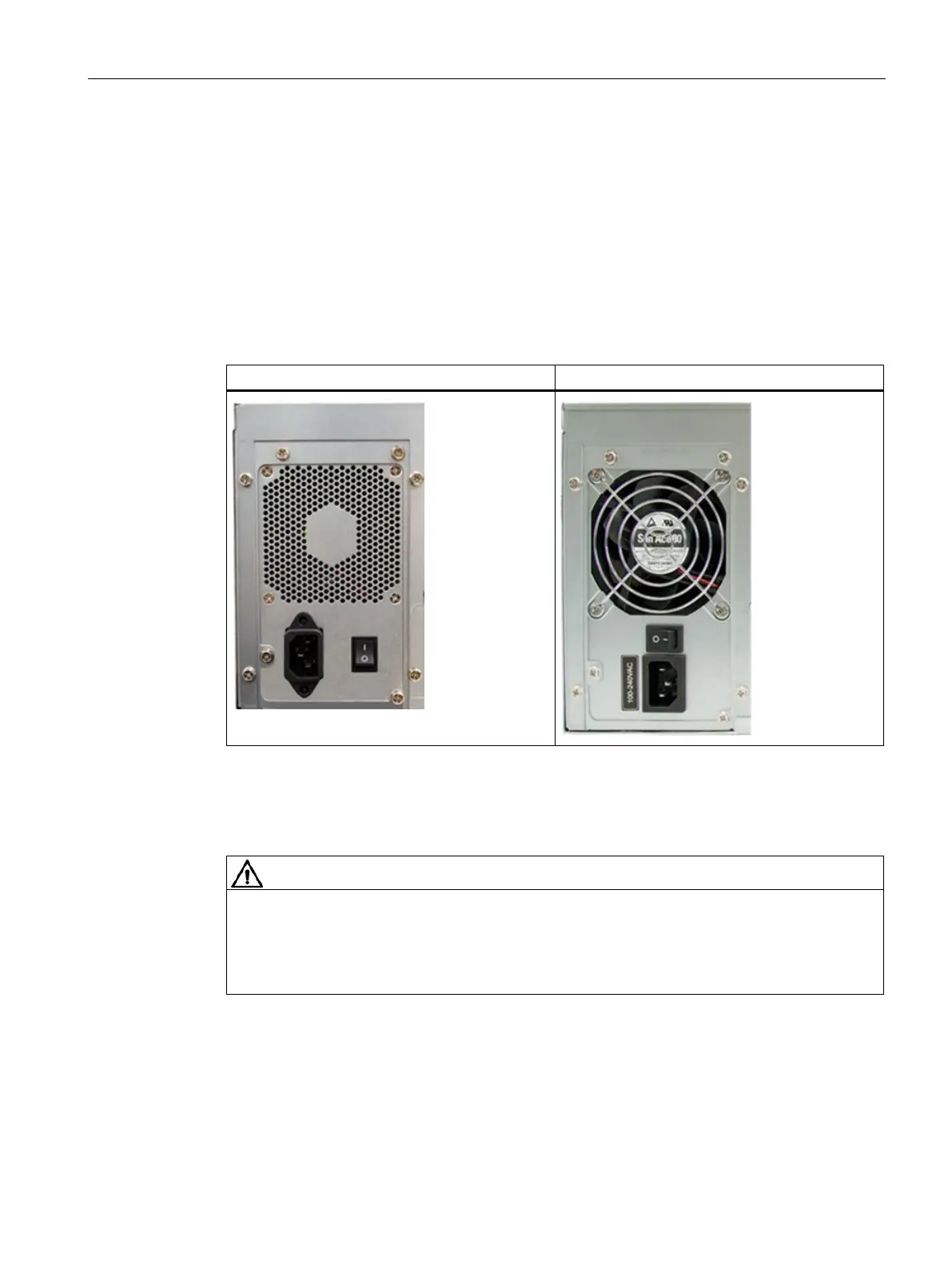

The following figure shows the power supply connector.
350 W and 500 W
850 W
1.4.5 Operator controls
WARNING
Risk of electric shock
The buttons and switches described in the following do not fully disconnect the device from
the line voltage.
You also need to the notes and information under "Switching off the device (Page 44)".
