Device maintenance and repair
7.3 Removing and installing hardware
SIMATIC IPC RW-543A
62 Operating Instructions, 03/2023, A5E52332059-AA
7.3 Removing and installing hardware
7.3.1 Replacing the filter
Requirement
• The device is fully disconnected from the line voltage, see "Switching off the device
(Page 44)".
• The fan cover has been removed; see "Replacing the device fan (Page 63)".
• An original spare part, for example, a filter pad with the same type.

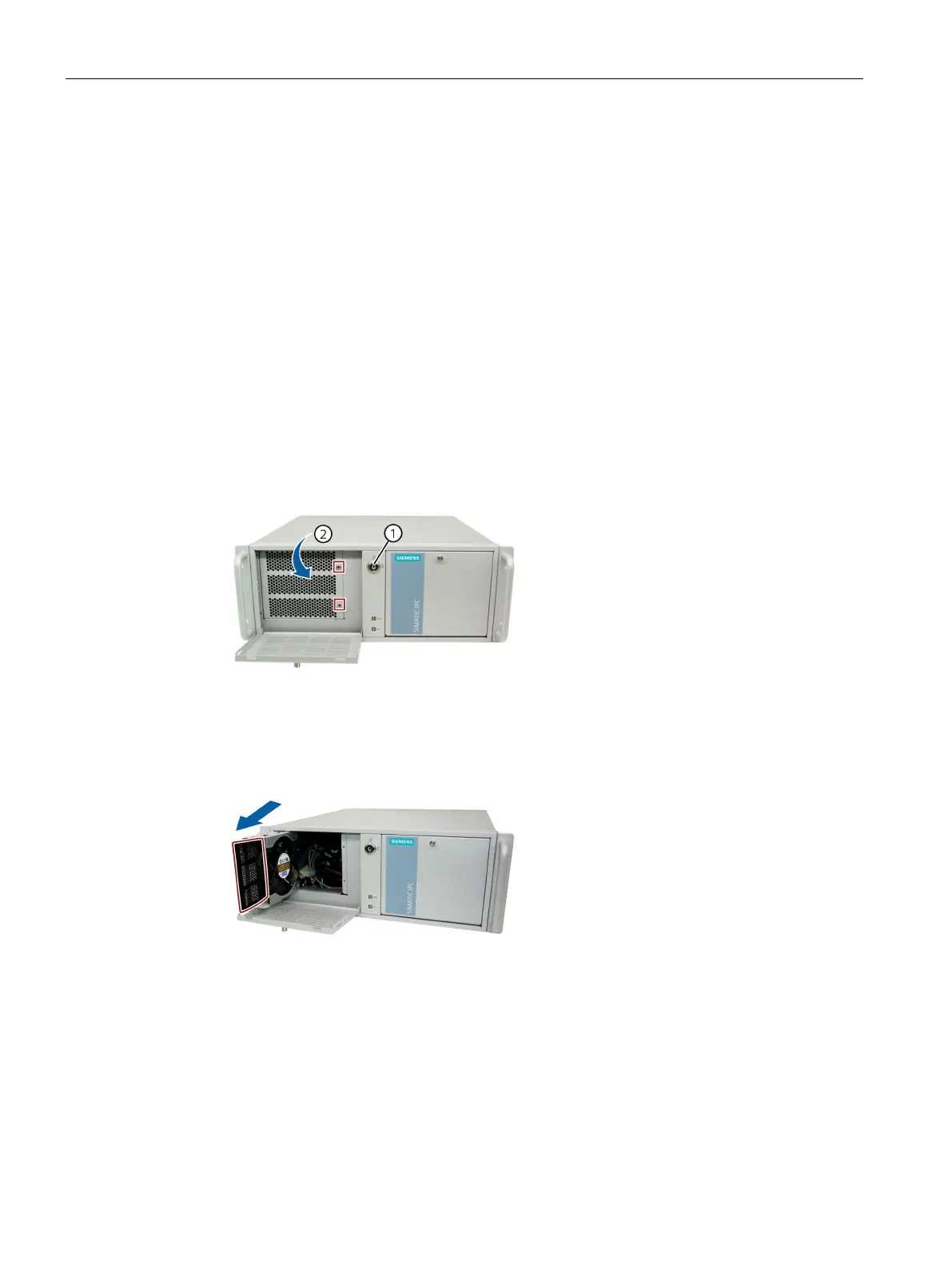

Procedure - Removing the filter
1. Unlock the front cover with the key ①.
2. Pull the handle in the direction of the arrow ② to open the left-front door.
3. Unscrew the marked screws.
4. Pull the marked screw to open the fan bracket.
5. Remove the filter in the direction of the arrow.
Procedure - Installing the filter
To install the filter, follow the steps for removing it in reverse order.
