A.3 Internal Connector
SIMATIC IPC RW-543A
126 Operating Instructions, 03/2023, A5E52332059-AA

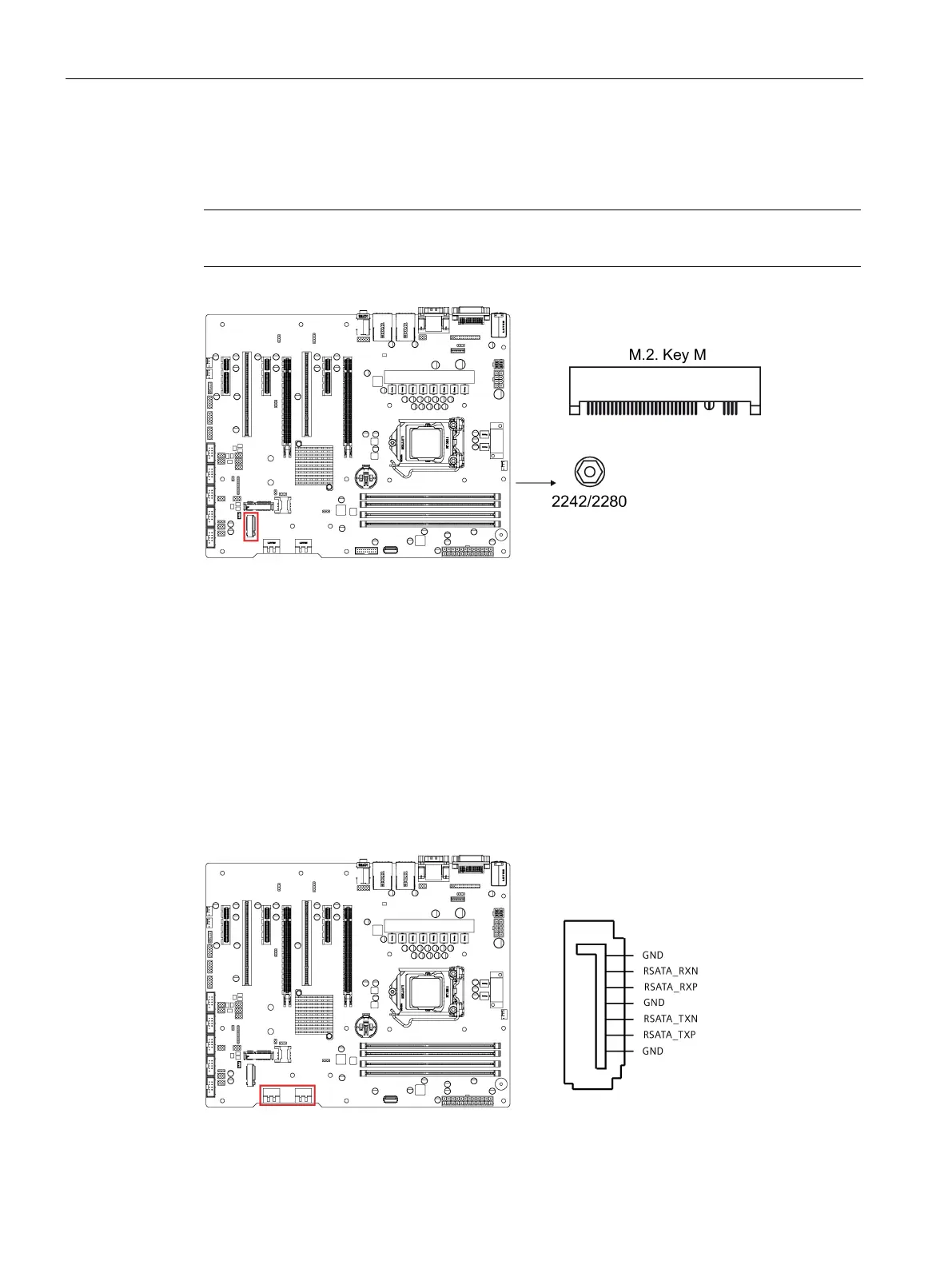

A.3.9 M.2 Key M slot
This socket allows you to install an M.2 module.
Note
This slot supports PCIe x4 NVMe/ SATA SSD Auto Detect, 2242/2280 storage devices.
A.3.10 DDR4 Memory sockets
The motherboard provides four memory sockets, which support four pieces of 288‐pin DDR4
Memory Modules. Refer to the chapter Installing memory module (Page 54) for
detailed installation instruction.
A.3.11 SATA 6.0 Gbps Port Connectors
The motherboard provides four pieces of 7‐pin SATA Port Connectors, which support SATA
devices through the connection of SATA Cable.
