Siemens SIMATIC IPC RW-543A User Manual

Hardware description
A.3 Internal Connector
SIMATIC IPC RW-543A
Operating Instructions, 03/2023, A5E52332059-AA
125

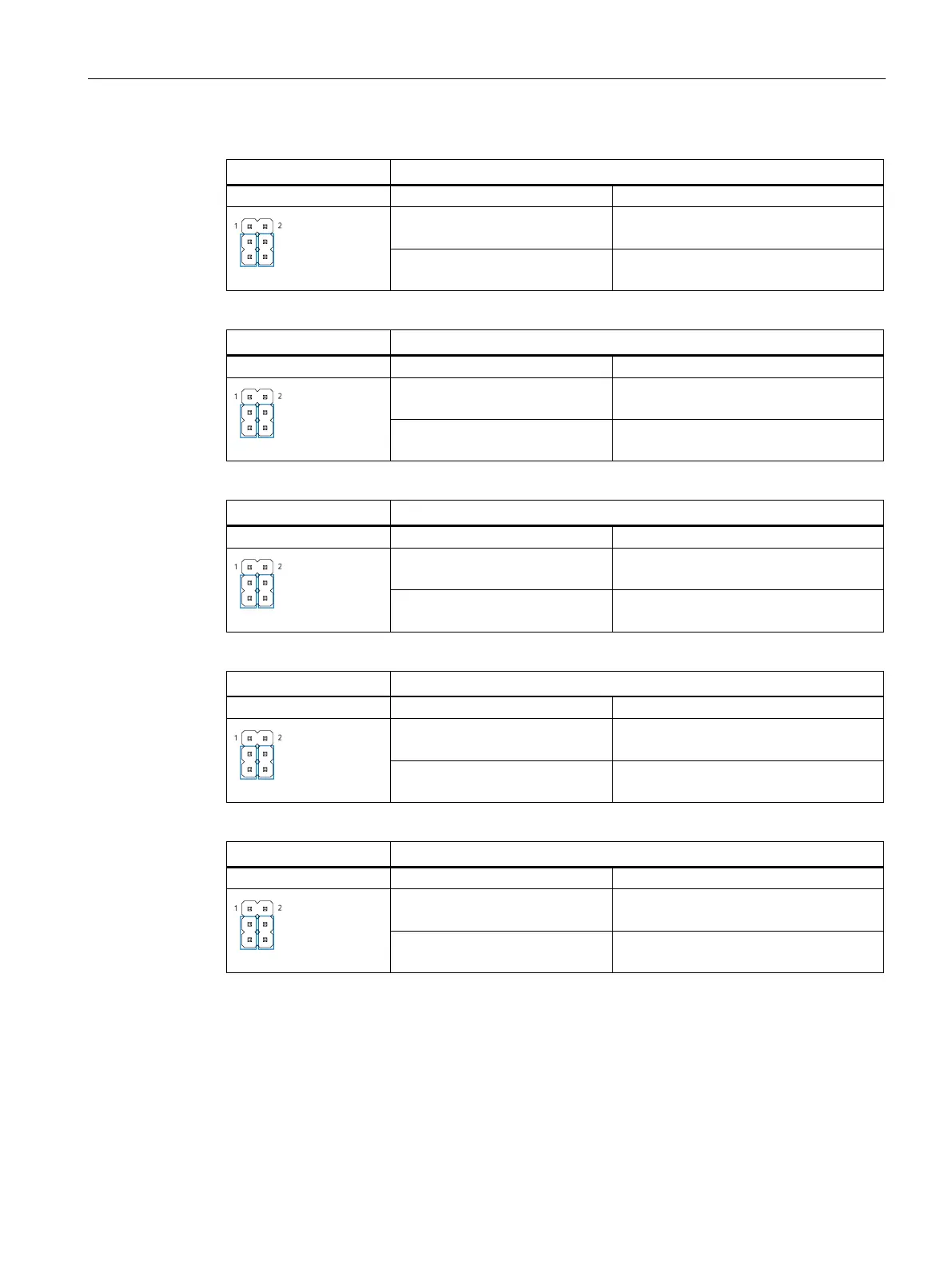

JP8 (COM3 DCD/RI Select Jumper 3*2 Pin 2.54mm)
Graphic
Pin setting
Function
1-3, 2-4 COM3_PIN1: + 5V
COM3_PIN8: + 12V
3-5, 4-6(Default)
COM3_PIN1: DCD
COM3_PIN8: RI
JP9 (COM4 DCD/RI Select Jumper 3*2 Pin 2.54mm)
Graphic
Pin setting
Function
1-3, 2-4
COM4_PIN1: + 5V
COM4_PIN8: + 12V
3-5, 4-6(Default) COM4_PIN1: DCD
COM4_PIN8: RI
JP10 (COM5 DCD/RI Select Jumper 3*2 Pin 2.54mm)
Graphic
Pin setting
Function
1-3, 2-4
COM5_PIN1: + 5V
COM5_PIN8: + 12V
3-5, 4-6(Default)
COM5_PIN1: DCD
COM5_PIN8: RI
JP11 (COM6 DCD/RI Select Jumper 3*2 Pin 2.54mm)
Graphic
Pin setting
Function
1-3, 2-4 COM6_PIN1: + 5V
COM6_PIN8: + 12V
3-5, 4-6(Default)
COM6_PIN1: DCD
COM6_PIN8: RI
JP12 (COM2 DCD/RI Select Jumper 3*2 Pin 2.54mm)
Graphic
Pin setting
Function
1-3, 2-4
COM2_PIN1: + 5V
COM2_PIN8: + 12V
3-5, 4-6(Default)
COM2_PIN1: DCD
COM2_PIN8: RI
