C.1 Previous MDS version with different MLFB
MOBY D
304 System Manual, 01/2010, J31069-D0147-A6-7618
Ambient temperature
 Operation
 Transport and storage
 -25 to +125°C
 -40 to +150°C
Weight, approx. 5 g
Field data

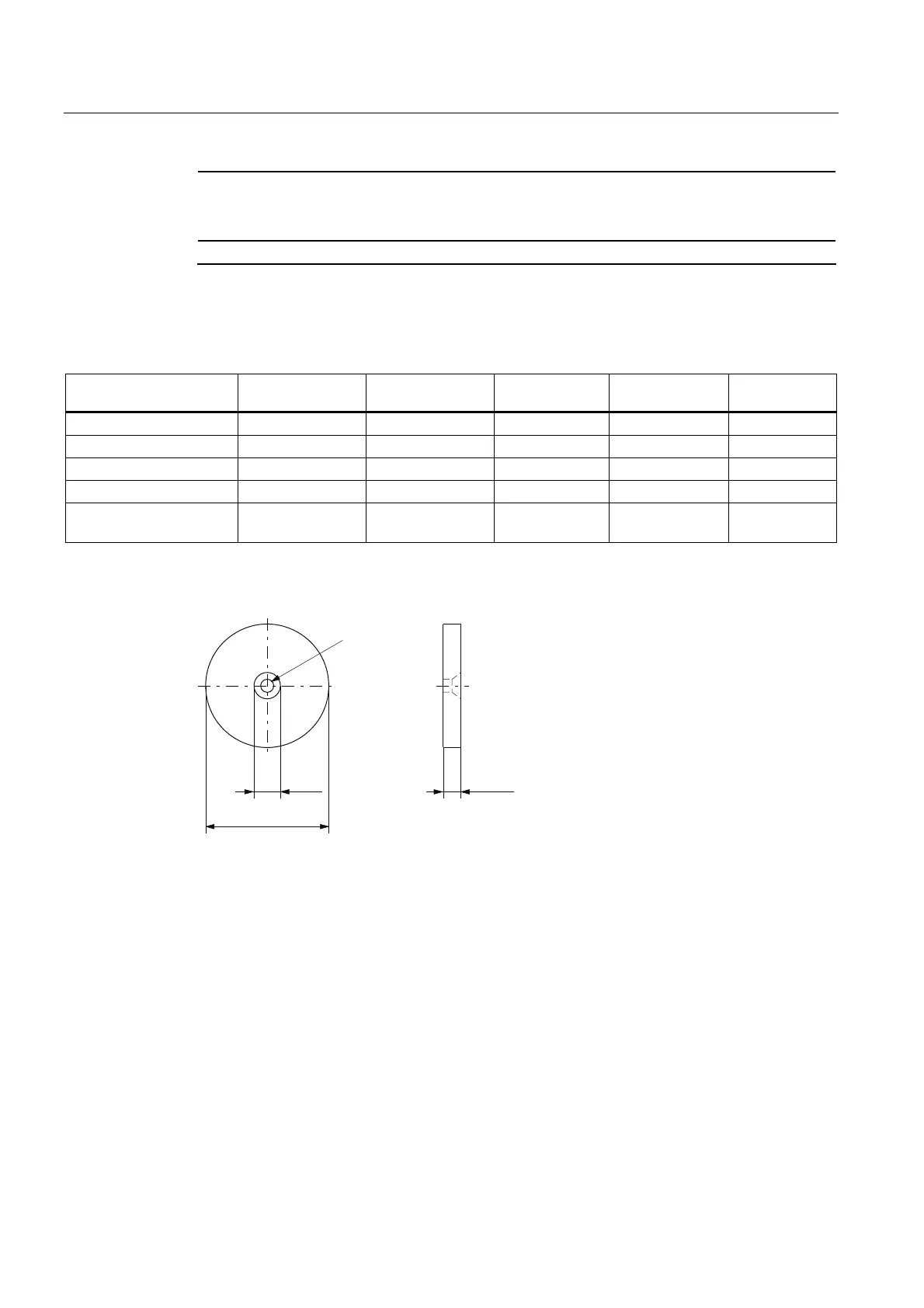

Table C- 3 Field data of MDS D124
SLG D10/D10S
ANT D5
SLG D10/D10S
ANT D6
SLG D10/D10S
ANT D10
SLG D11/D11S
ANT D5
SLG D12/
SLG D12S
Operating distance (S
a
) 0 to 130 mm 0 to 130 mm 0 to 130 mm 0 to 70 mm 0 to 50 mm
Limit distance (S
g
) 180 mm 180 mm 180 mm 110 mm 70 mm
Transmission window (L) Ø 320 mm 440 mm 980 mm Ø 300 mm 120 mm
Transmission window (W) 128 mm 340 mm 380 mm 120 mm 48 mm
Minimum distance from
MDS to MDS
≥ 0.8 m ≥ 1.2 m ≥ 1.8 m ≥ 0.8 m ≥ 0.3 m
Dimensions (in mm)


s
s
Figure C-2 Dimensions of MDS D124
