Planning the MOBY D system
4.3 Installation guidelines
MOBY D
42 System Manual, 01/2010, J31069-D0147-A6-7618
SLG D12/SLG D12S
With SLG D12/SLG D12S with integral antenna, the height of the housing provides sufficient
distance from the metal base; the device can be mounted directly onto metal. In the case of
flush-mounting, you must however comply with the specified lateral distance to metal.
0HWDO
K +HLJKWRIWKH6/* PP
K

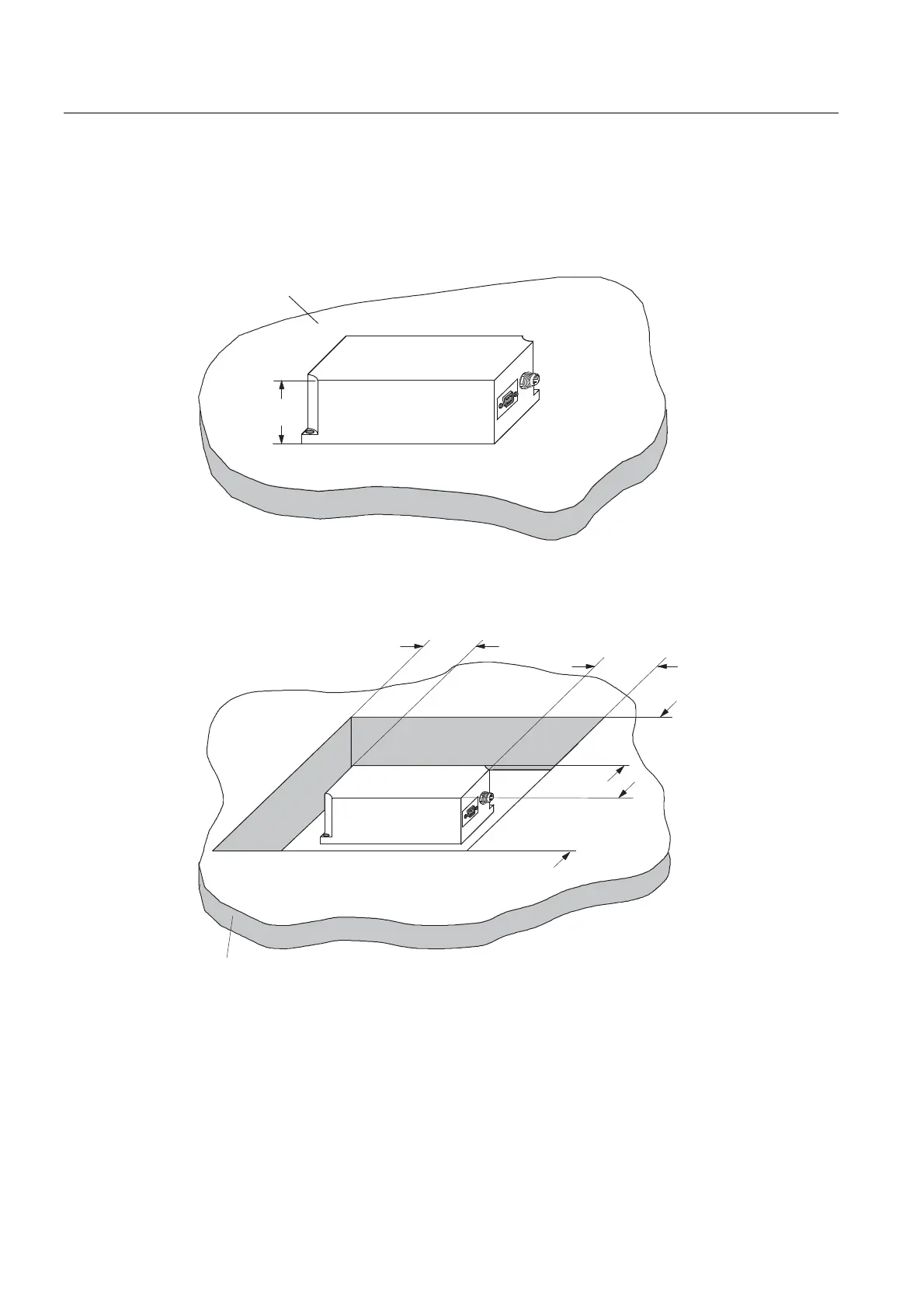

Figure 4-11 Mounting on metal: SLG D12/SLG D12S
0HWDO
DE 0HWDOIUHHGLVWDQFHV PP
E
E
D
D
Figure 4-12 Flush-mounting in metal: SLG D12/SLG D12S
