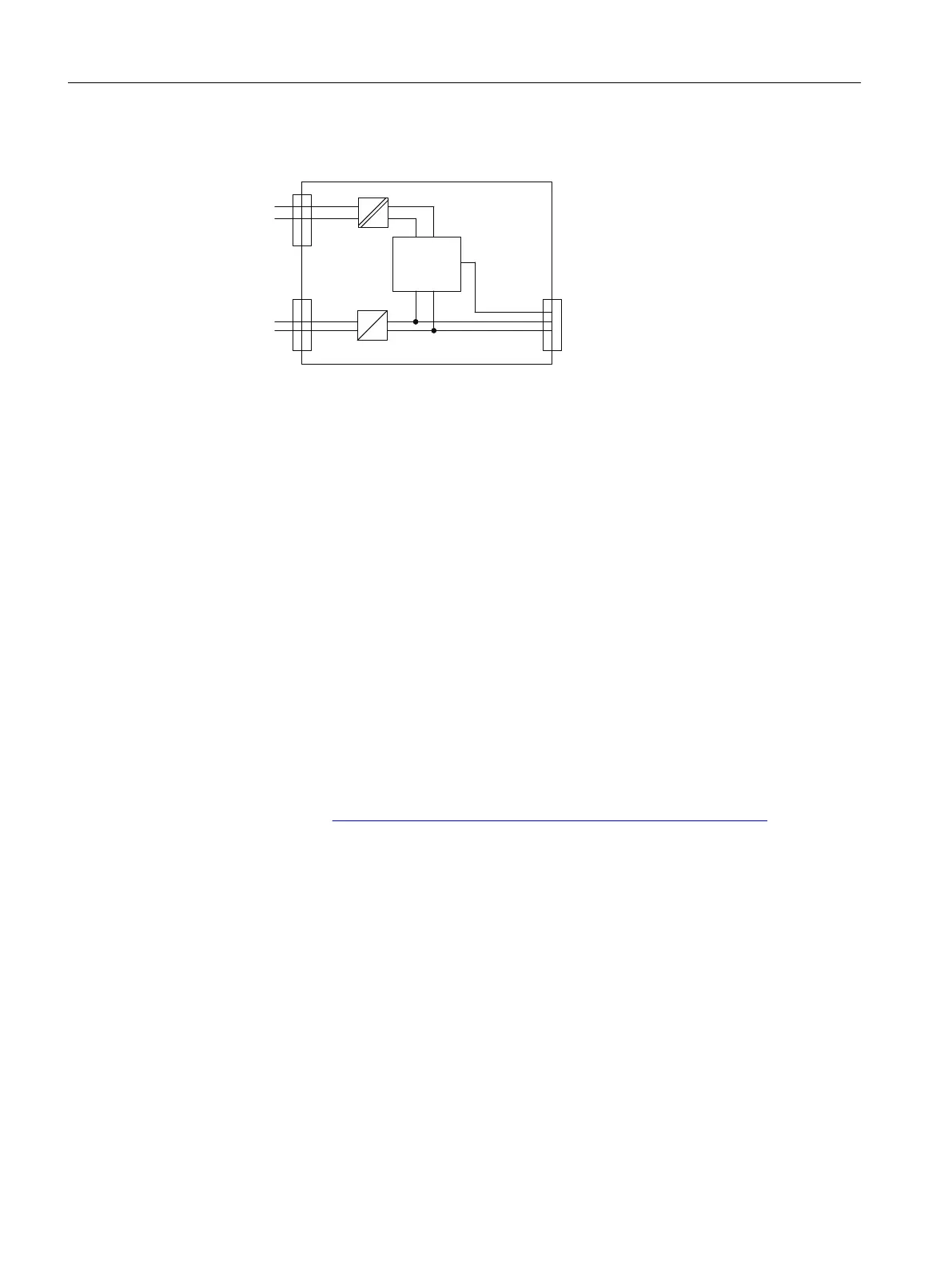

Block diagram for IM 650
0
/
352),%86'3
/RJLF
%DFNSODQHEXV
3RZHU
VXSSO\
Figure 9-2 Block diagram for IM 650
9.3 Response time of the ET 200PA SMART
Definition of response time
The response time is the time between detection of an input signal and the modification of a
linked output signal.
Duration
The response time depends on the bus configuration and on the DP master.
Factors
The response time for the ET 200PA SMART depends on the following factors:
● Processing of the data by the ET 200PA SMART
● Delay of the inputs and outputs (refer to the "S7-300 automation system, module
specifications (
http://support.automation.siemens.com/WW/view/en/8859629)" Reference
Manual.
Interface module IM 650
9.3 Response time of the ET 200PA SMART
ET 200PA SMART
120 Operating Instructions, 06/2019, A5E34192013-AB
