A.4 Analog inputs and outputs expansion modules (EMs)
S7-200 SMART
740 System Manual, V2.3, 07/2017, A5E03822230-AF

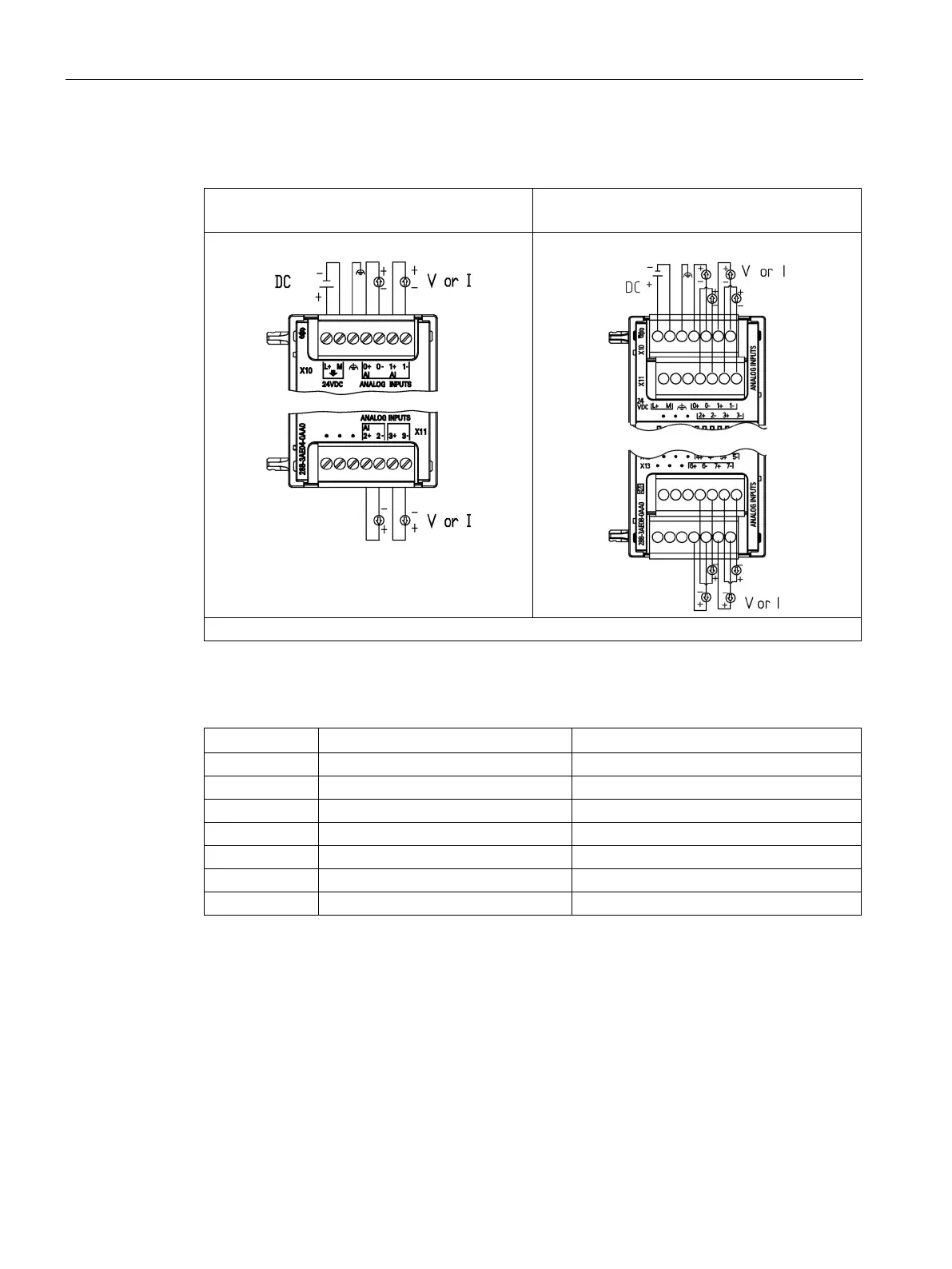

Table A- 94 Wiring diagram EM AE04 Analog 4 x Inputs (6ES7288-3AE04-0AA0) and EM AE08 Ana-
log 8 x Inputs (6ES7288-3AE08-0AA0
EM AE04 Analog 4 x Inputs
(6ES7288-3AE04-0AA0)
EM AE08 Analog 8 x Inputs
(6ES7288-3AE08-0AA0)
Note: Connectors must be gold. See Appendix F, Spare parts and other hardware, for article number.
Table A- 95 Connector pin locations for EM AE04 Analog 4 x Inputs (6ES7288-3AE04-0AA0)
Pin
X10 (gold)
X11 (gold)
1
L+ / 24 V DC
No connection
2
M / 24 V DC
No connection
3
Functional Earth
No connection
4
AI 0+
AI 2+
5
AI 0-
AI 2-
6
AI 1+
AI 3+
7 AI 1- AI 3-
