A.7 Analog signal boards
S7-200 SMART
770 System Manual, V2.3, 07/2017, A5E03822230-AF
Table A- 145 Diagnostics
Technical data
SB Analog 1 x Output (SB AQ01)
Overflow/underflow
Yes
Short to ground (voltage mode
only)
Yes
Wire break (current mode only)
Yes

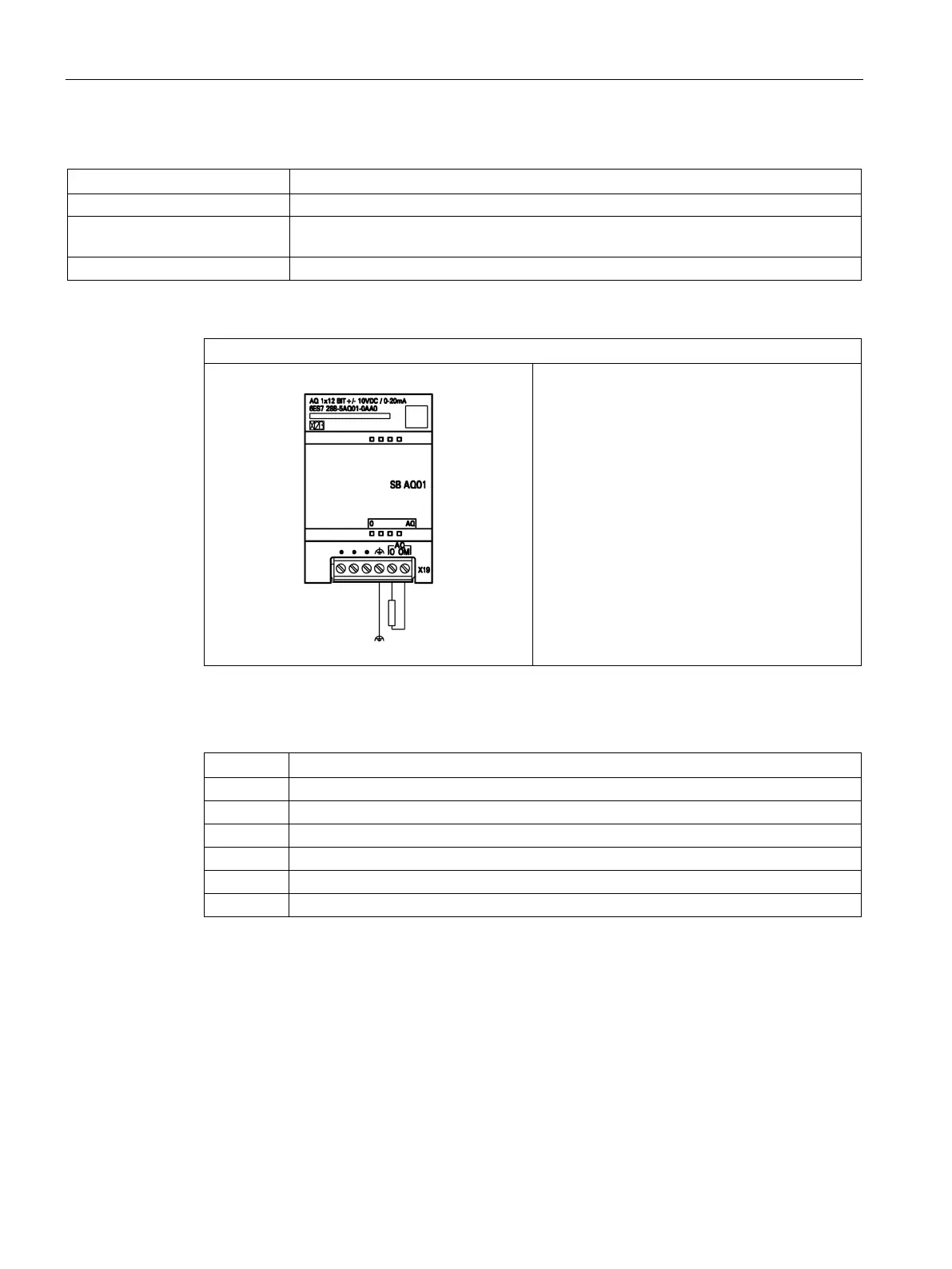

Table A- 146 Wiring diagram for the SB AQ01 Analog 1 x Output (6ES7288-5AQ01-0AA0)
SB AQ01 Analog 1 x Output (6ES7288-5AQ01-0AA0)
Table A- 147 Connector pin locations for SB AQ01 Analog 1 x Output (6ES7288-5AQ01-0AA0)
Pin
X19
1
No connection
2
No connection
3
No connection
4
Functional Earth
5
AQ 0
6
AQ 0M
