Technical specifications
A.11 S7-200 SMART cables
S7-200 SMART
System Manual, V2.3, 07/2017, A5E03822230-AF
783
RS-232/PPI Multi-Master cable dimensions, label and LEDs

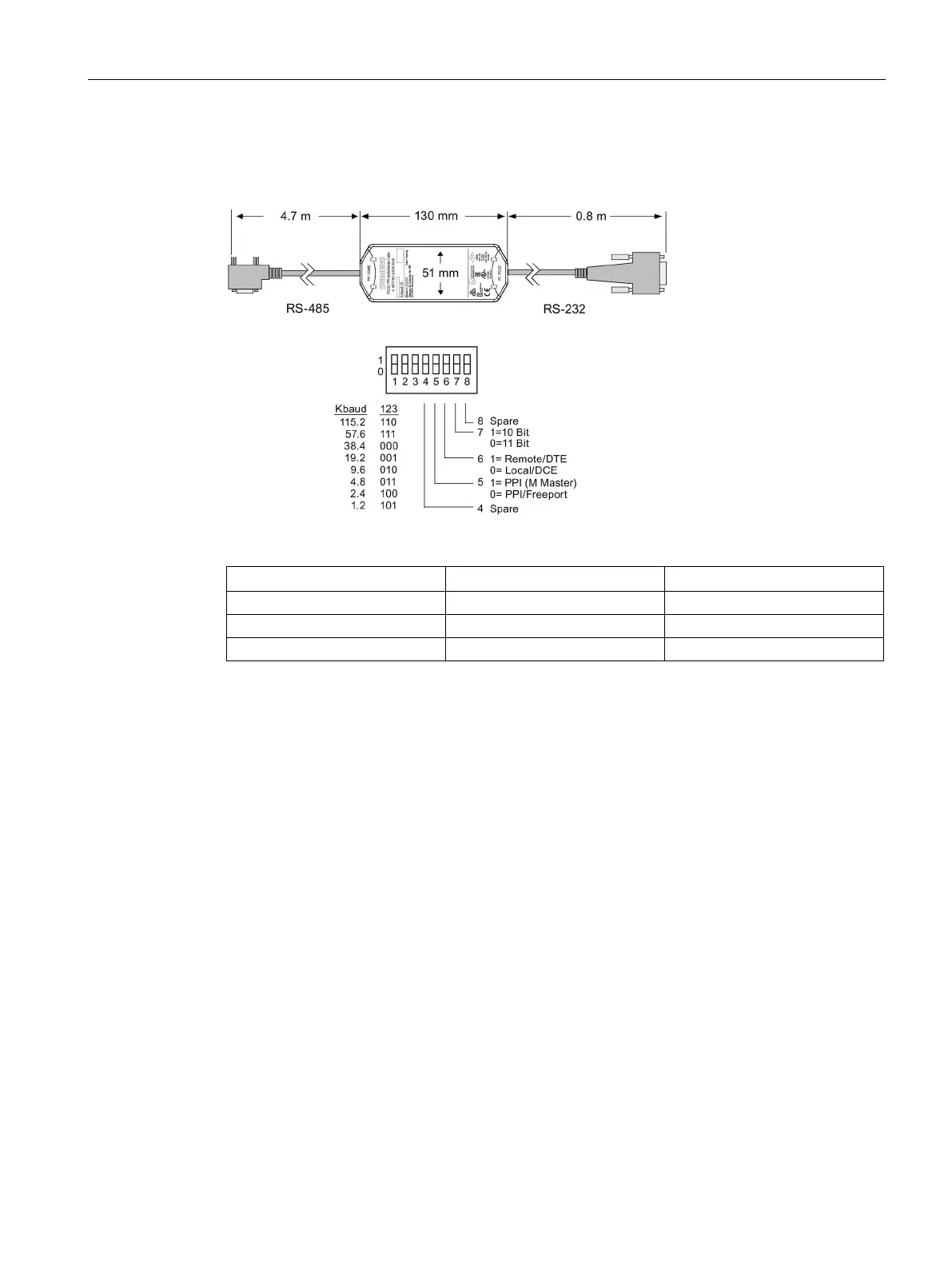

The following figure shows the RS-232/PPI Multi-Master Cable dimensions, label and LEDs.
LED
Color
Description
Tx
Green
RS-232 transmit indicator
Rx
Green
RS-232 receive indicator
PPI
Green
RS-485 transmit indicator
