Functions and requirements
1.2 Configuration examples
Configuration - DNP3
14 Configuration Manual, 11/2018, C79000-G8976-C508-01
Path redundancy using the serial interface
In the following example, the Ethernet interface and the serial interface are used with the
TIM 1531 IRC to set up redundant transmission paths.
● Ethernet interface for communication via Ethernet / Internet
● Serial interface for communication via a WAN network (dedicated line or dialup network)

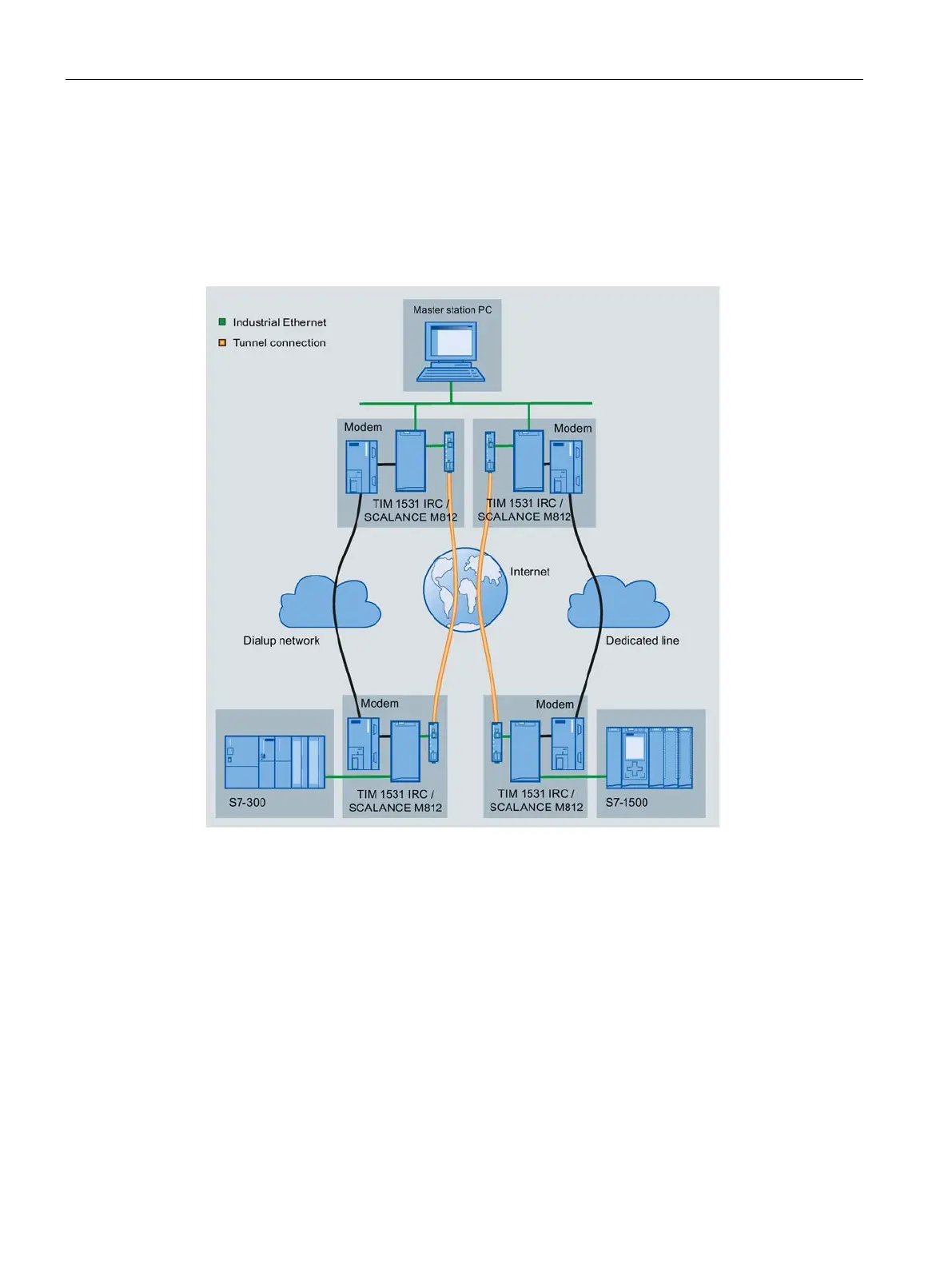

Figure 1-2 Communication via redundant paths
Path redundancy is also possible over two Ethernet networks.
